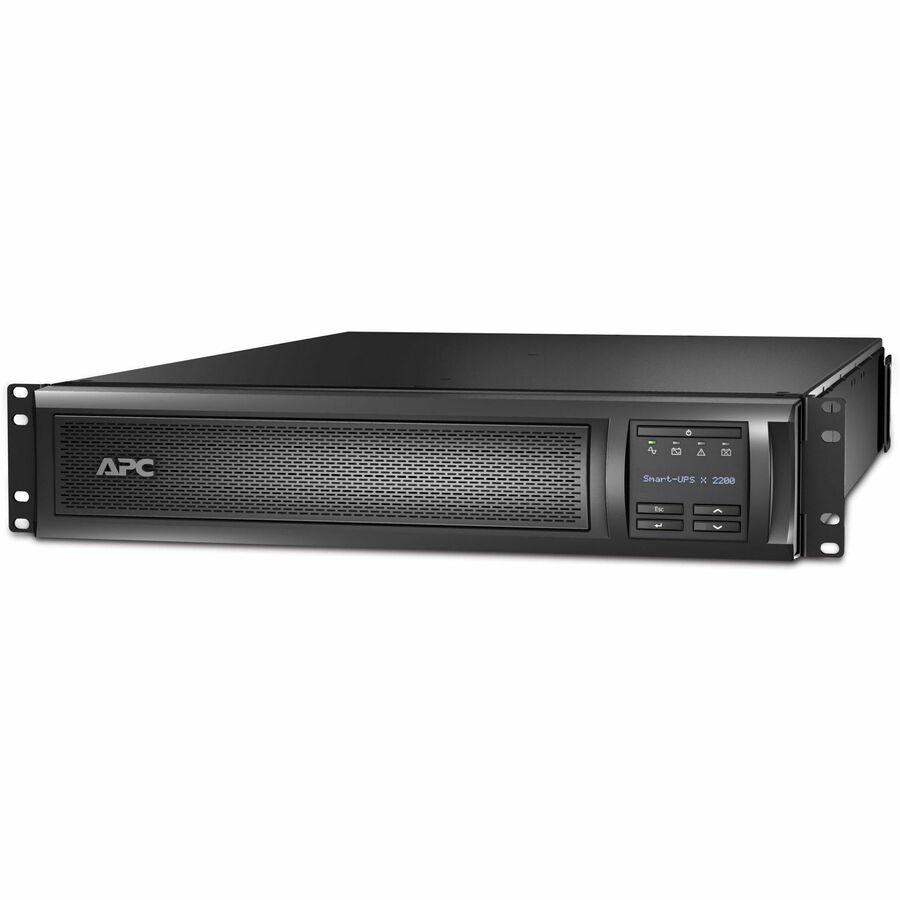

APC Smart-UPS X, Line Interactive, 2200VA, Rack/tower convertible 2U, 208V-230V, 8x C13+1x C19 IEC, SmartSlot, Extended runtime
2U Rack-mountable - 3 Hour Recharge - 10 Minute Stand-by - 208 V AC, 230 V AC Input - 208 V AC, 230 V AC Output - Sine Wave - Serial Port - USB - 1 x IEC 320-C19, 2 x IEC Jumper, 8 x IEC 320-C13 Receptacle(s) - 11 x Battery/Surge Outlet
- SKU
- SMX2200RMHV2U
- Category
- General Purpose UPS
Request pricing
Confirmed with stock and TAA status before any payment.
Genuine Schneider Electric through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- SMX2200RMHV2U
- Category
- General Purpose UPS
Overview

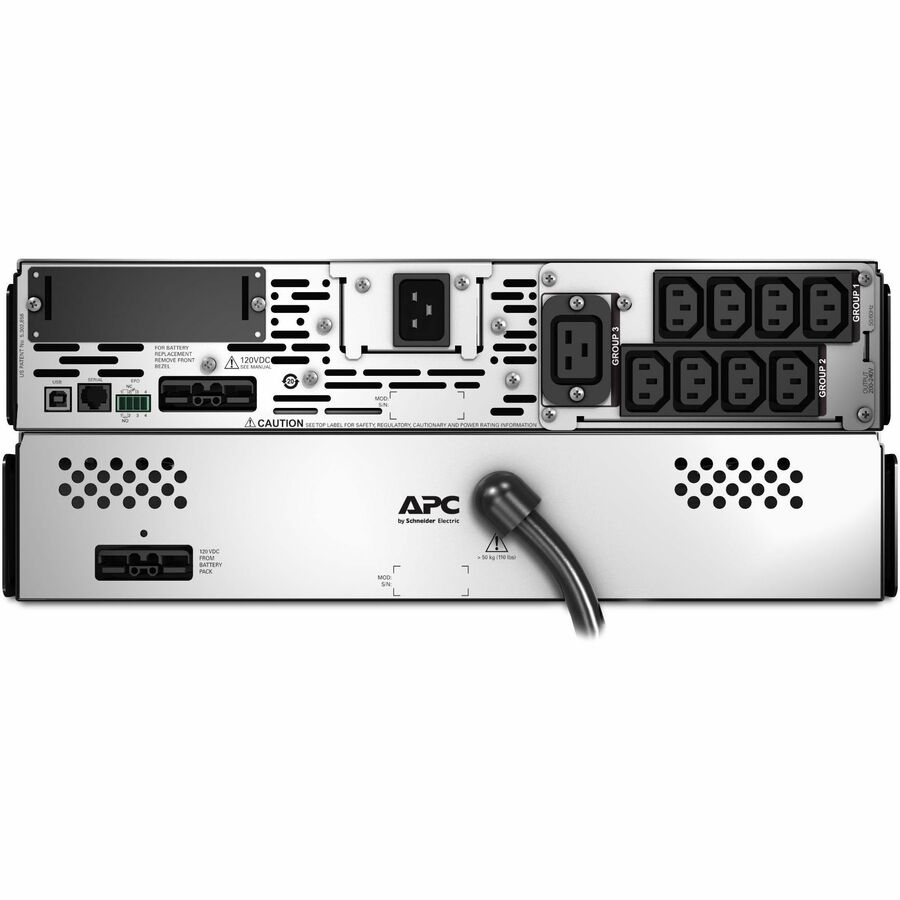

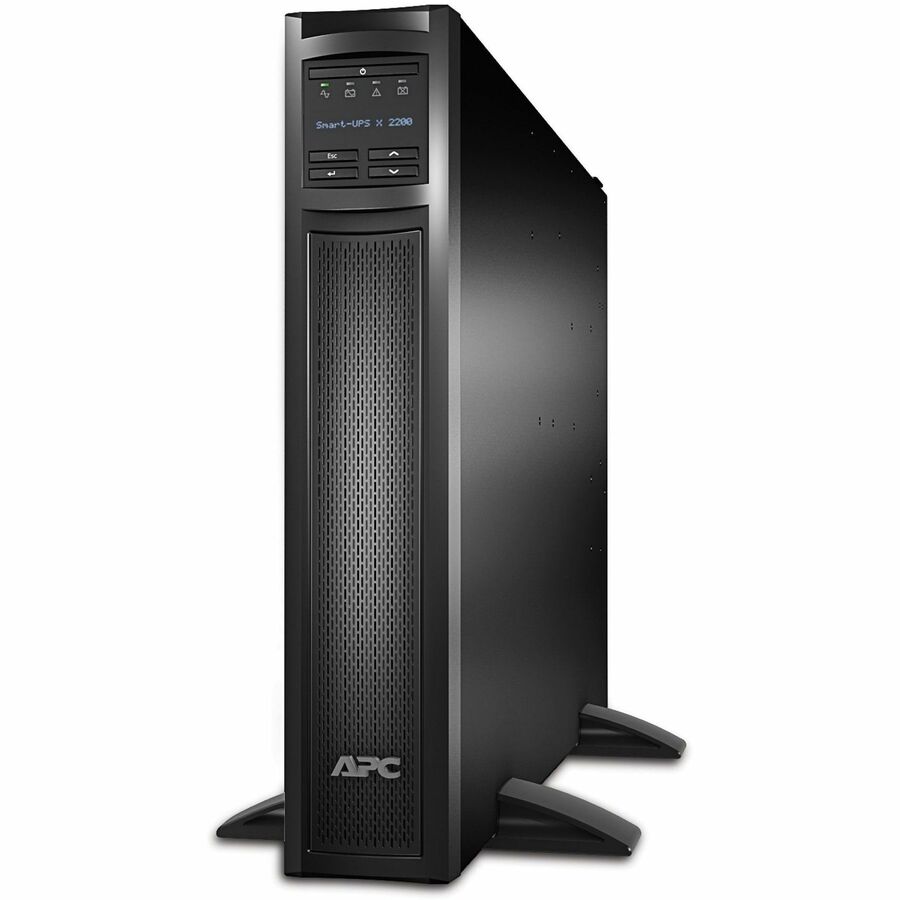

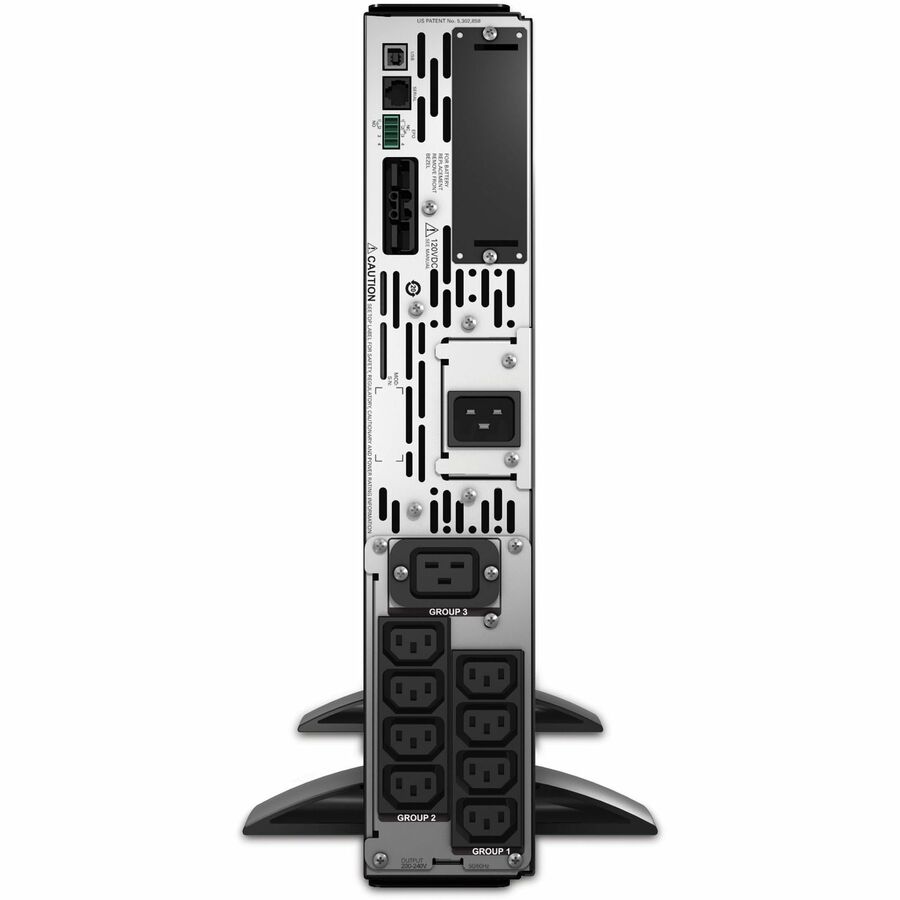

This APC Smart-UPS is designed for IT managers or network administrators to maintain business uptime, data transfer and continuity during prolonged power outages. The 2200VA line interactive 2U rack/tower UPS provides pure sine wave power to support critical electronics during power disruptions. The SMX comes with IEC 320 C20 input (includes BS1363A, IEC 320 C20 and Schuko CEE 7/EU1-16P power cords), 8x IEC 320 C13 and 1x IEC 320 C19 outlets. The UPS has a SmartSlot for optional Network Management Card that enables graceful shutdown of physical servers, virtual machines & HCI Clusters via PowerChute Network Shutdown. This uninterrupted power supply can connect to EcoStruxure IT or third-party centralized management platforms. The SMX UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. This is compatible with dedicated user-replaceable battery, and the APC replacement battery cartridge helps restore UPS performance to the original specifications. The Smart-UPS comes with a pair of tower-mounting stabilizing feet and rack-mounting brackets. The 3 switchable outlet groups allow more granular management of the power supplied to your devices. The Emergency Power Off feature enables the UPS to remotely shutdown during emergencies.
Warranty
Additional Warranty Information: UPS: 36 month(s)|Battery: 24 month(s) Limited Warranty: 3 Year
Highlights
- 2200VA/1980W line interactive pure sine wave 2U rack/tower UPS (rail kit included)
- User-selectable high voltage setting of 200V-240V

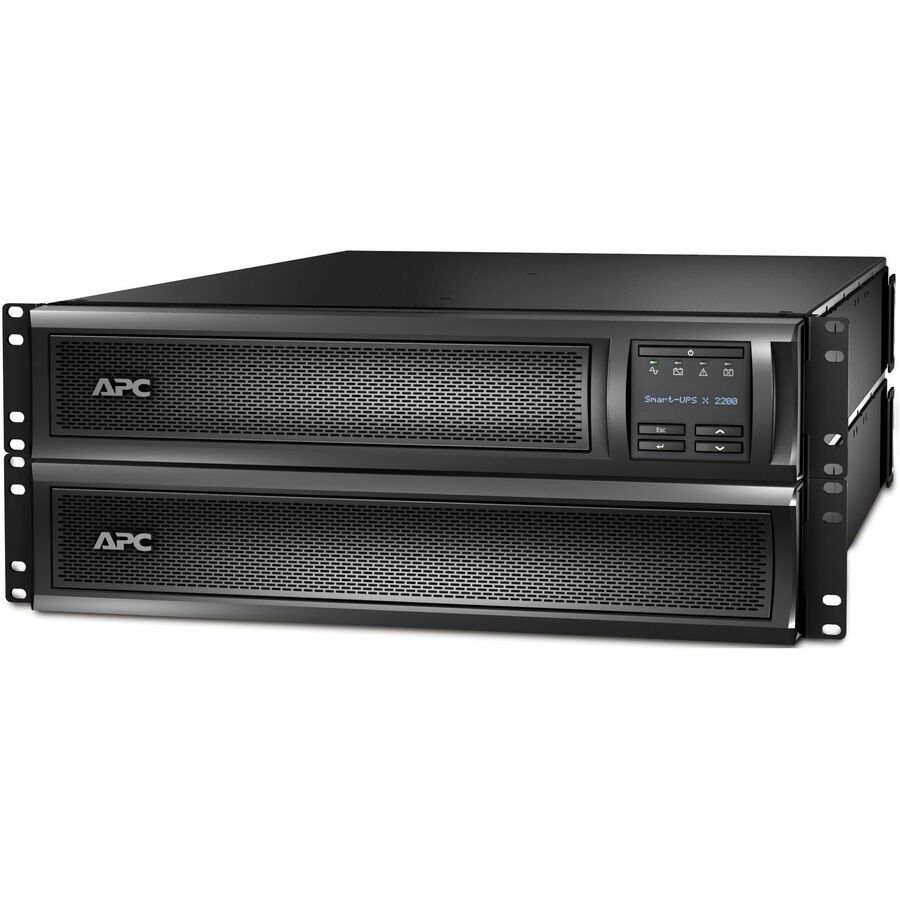

- Add up to 10 external battery packs (SMX120RMBP2U)
- Graceful shutdown using serial or USB cables via PowerChute Serial Shutdown
- Automatic Voltage Regulation keeps output voltage within acceptable user selectable levels
- Ideal for servers, storage, networking & commercial applications
Specifications
| Additional Warranty Information | UPS: 36 month(s)|Battery: 24 month(s) |
|---|---|
| Battery Chemistry | Lead Acid |
| Package Contents |
|
| Software Included | Powerchute Serial Edition |
| Product Type | Line-interactive UPS |
| Hot Swappable | Yes |
| Input Voltage | 208 V AC, 230 V AC |
| Manufacturer Part Number | SMX2200RMHV2U |
| Limited Warranty | 3 Year |
| Output Voltage | 208 V AC, 230 V AC |
| Weight (Approximate) | 82.28 lb |
| Form Factor | Rack-mountable |
| Manufacturer | Schneider Electric SA |
| Product Model | SMX2200RMHV2U |
| Product Name | Smart-UPS 2200 VA Tower/Rack Mountable UPS |
| Product Line | Smart-UPS |
| Surge Energy Rating | 645 J |
| Waveform Type | Sine Wave |
| Product Series | SMX |
| Rack Height | 2U |
| Brand Name | APC |
| Plug/Connector Type | British BS1363A, IEC 320-C20 |
| Country of Origin | Philippines |
| Cord Length | 6 ft |
| Height | 3.35" |
| Width | 17.01" |
| Depth | 26.26" |
| Receptacle Type | Schuko CEE 7/EU1-16P |
| Environmentally Friendly | Yes |
| USB | Yes |
| Serial Port | Yes |
| Backup/Run Time (Half Load) | 25 Minute |
| Backup/Run Time (Full Load) | 10 Minute |
| Battery Characteristics | Maintenance-free, Sealed, Spill-proof |
| Load Capacity (VA) | 2200 VA |
| Load Capacity (Watt) | 1980 W |
| Number of Battery & Surge Outlets | 11 |
| Transfer Time | 4 ms |
| Typical Battery Recharge Time | 3 Hour |
| Product Color | Black |
| Receptacle Detail | 1 x IEC 320-C19, 2 x IEC Jumper, 8 x IEC 320-C13 |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Single-use Plastic (SUP) Free Shipping Packaging | No |
