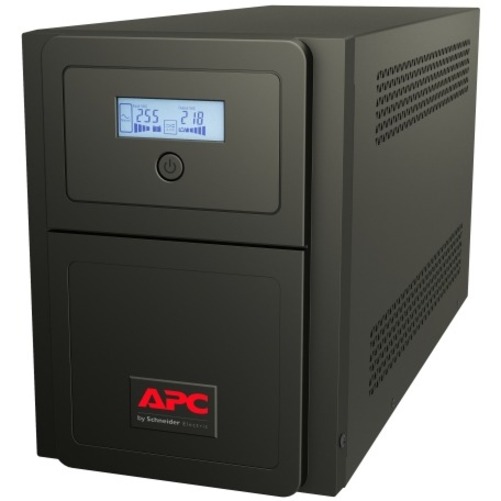

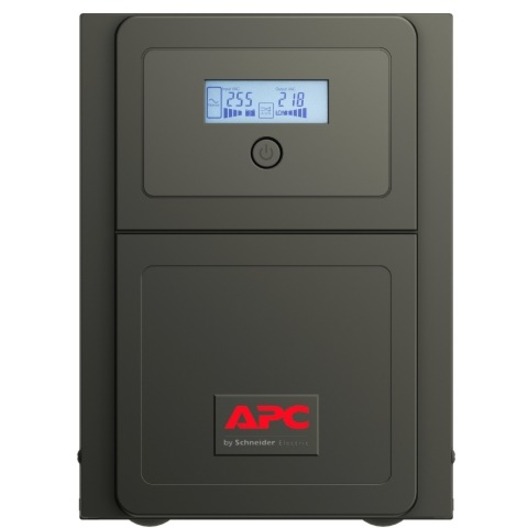

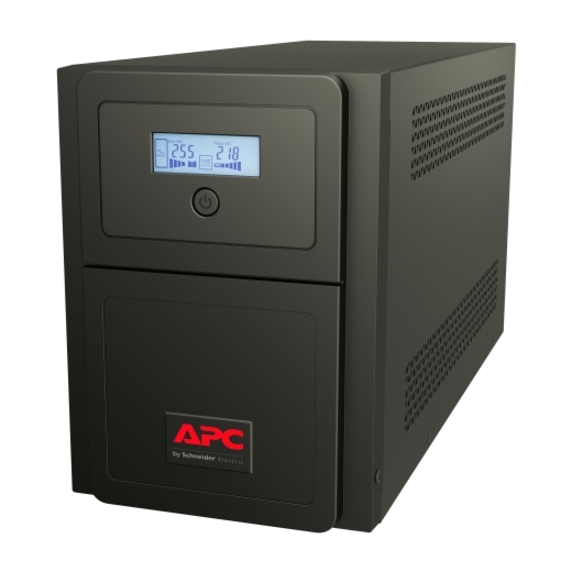

APC by Schneider Electric Easy UPS SMV 1000VA 230V
Tower - AVR - 4 Hour Recharge - 3.60 Minute Stand-by - 230 V AC Input - 230 V AC Output - Sine Wave - 6 x IEC 60320 C13 Receptacle(s) - 6 x Battery/Surge Outlet
- SKU
- SMV1000I
- Category
- General Purpose UPS
Request pricing
Confirmed with stock and TAA status before any payment.
Genuine Schneider Electric through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- SMV1000I
- Category
- General Purpose UPS
Overview
Easy UPS provides power protection for unstable power conditions, ensuring consistent and reliable connectivity at the most critical moments.
For our home and small office customers APC by Schneider Electric delivers a new category of UPSs designed for the essential power protection needs even in the most unstable power conditions, introducing APC Easy UPS. APC Easy UPS is a versatile UPS developed to handle inconsistent power conditions while also delivering the quality millions of professionals trust around the world.
Easy UPS BV Series provides basic power protection ensuring consistent and reliable connectivity at the most critical moments.
Easy UPS SMV Series is a Line-Interactive UPS with Sinewave output developed to handle a wide voltage range in regions with inconsistent power conditions.
Warranty
Limited Warranty: 2 Year
Highlights
- Automatic Voltage Regulation (AVR) - Automatically steps up low voltage and steps down high voltage to levels that are suitable for your equipment.
- Cold-start capable - Provides temporary battery power when the utility power is out.
- LCD graphics display - Text and mimic diagrams that display modes of operation, system parameters and alarms.
- Pure sine wave output on battery - Simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics.
Specifications
| Application/Usage | Electronic, Computer, Home, Network Gateway Device, Critical Low-power Device, Office |
|---|---|
| Battery Chemistry | Lead Acid |
| Package Contents |
|
| Product Type | Line-interactive UPS |
| Input Voltage | 230 V AC |
| Manufacturer Part Number | SMV1000I |
| Limited Warranty | 2 Year |
| Output Voltage | 230 V AC |
| Weight (Approximate) | 29.98 lb |
| Form Factor | Tower |
| Manufacturer | Schneider Electric SA |
| Product Name | Easy UPS SMV 1000VA 230V |
| Overload Protection | Yes |
| Product Line | Easy UPS |
| Waveform Type | Sine Wave |
| Product Series | SMV |
| Brand Name | APC by Schneider Electric |
| Plug/Connector Type | IEC 60320 C14 |
| Input Voltage Range | 160 V AC - 295 V AC |
| Output Frequency | 60 Hz |
| Alarm | On Battery, Low Battery, Overload |
| Height | 8.70" |
| Width | 6.30" |
| Depth | 16.10" |
| Input Frequency | 65 Hz |
| Receptacle Type | IEC 60320 C13 |
| Battery Capacity | 1000 mAh |
| Maximum Operating Temperature | 104°F (40°C) |
| Backup/Run Time (Half Load) | 12.10 Minute |
| Backup/Run Time (Full Load) | 3.60 Minute |
| Load Capacity (VA) | 1000 VA |
| Load Capacity (Watt) | 700 W |
| AVR | Yes |
| USB (HID Compliant) Port | Yes |
| Maximum Operating Elevation | 3333 ft |
| Maximum Storage Elevation | 10000 ft |
| Number of Battery & Surge Outlets | 6 |
| Storage Temperature | 14°F (-10°C) - 104°F (40°C) |
| Transfer Time | 2 ms |
| Typical Battery Recharge Time | 4 Hour |
| Product Color | Black |

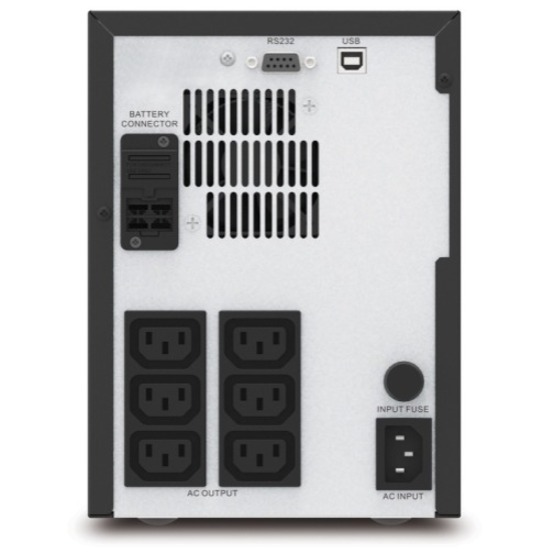

| Receptacle Detail | 6 x IEC 60320 C13 |
| Sound Emission (A-Weighted) | 45 dB(A) |
