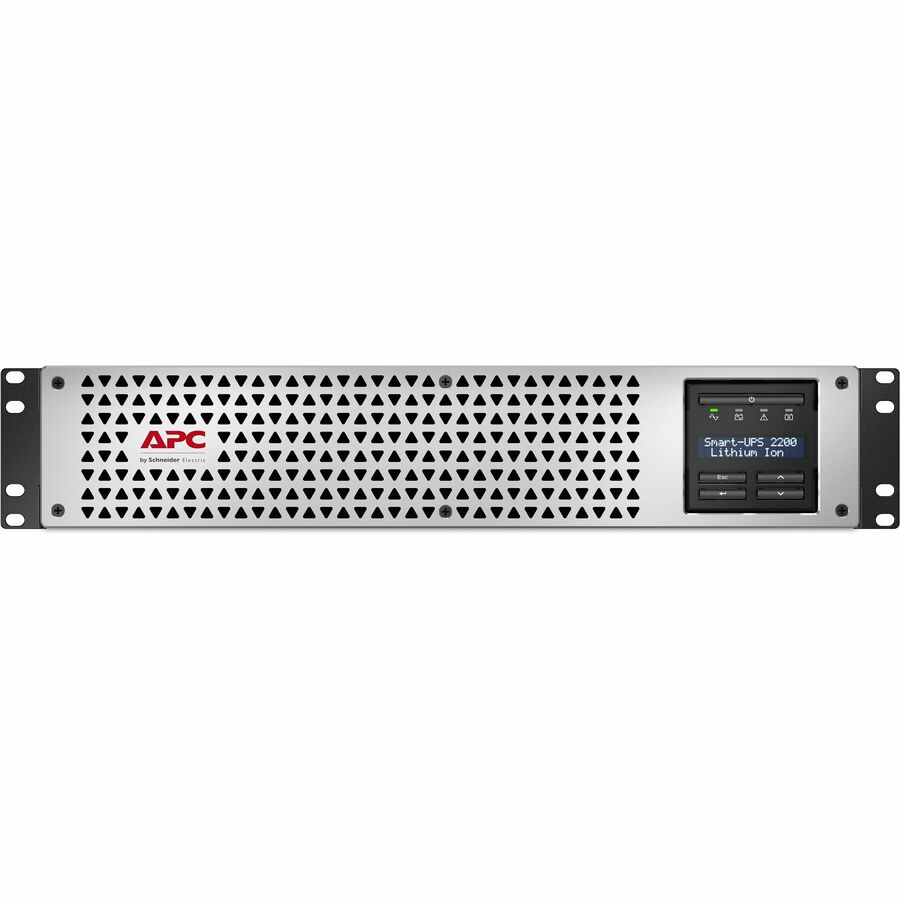

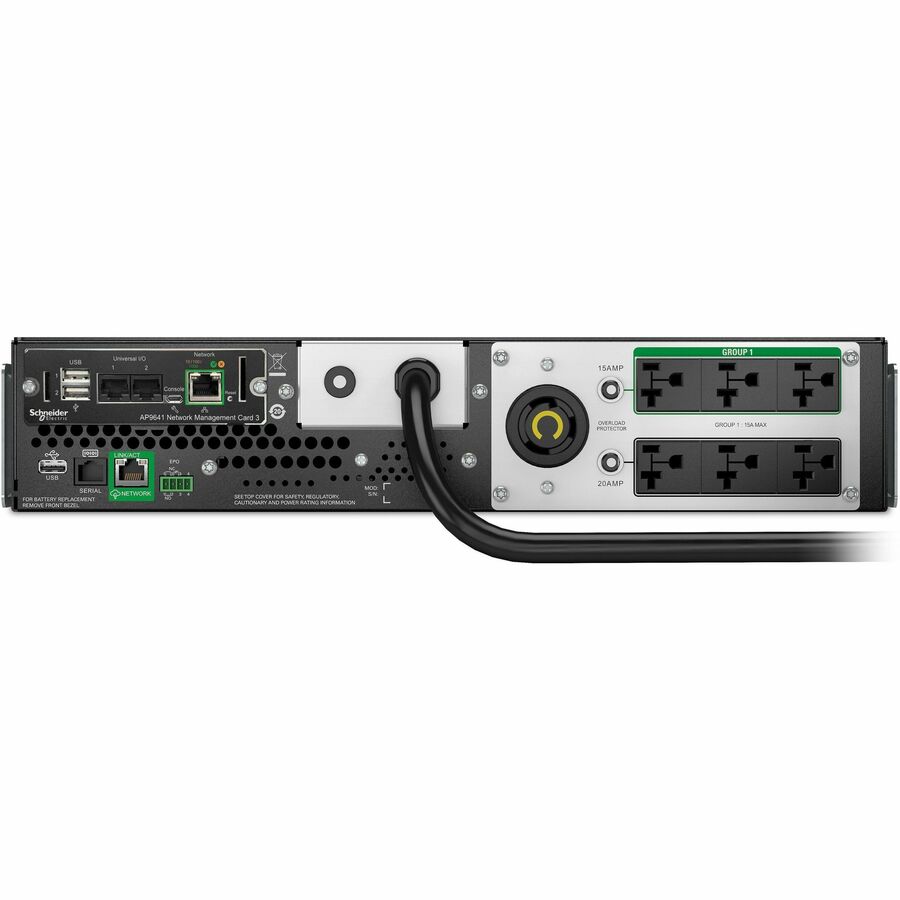

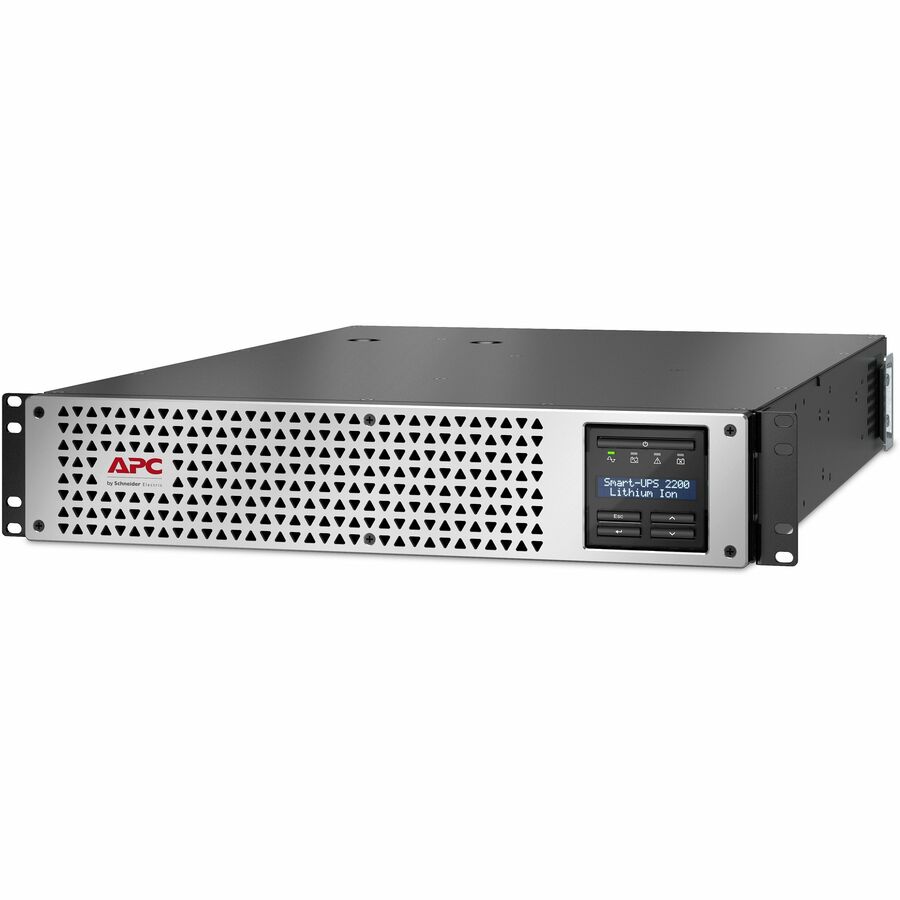

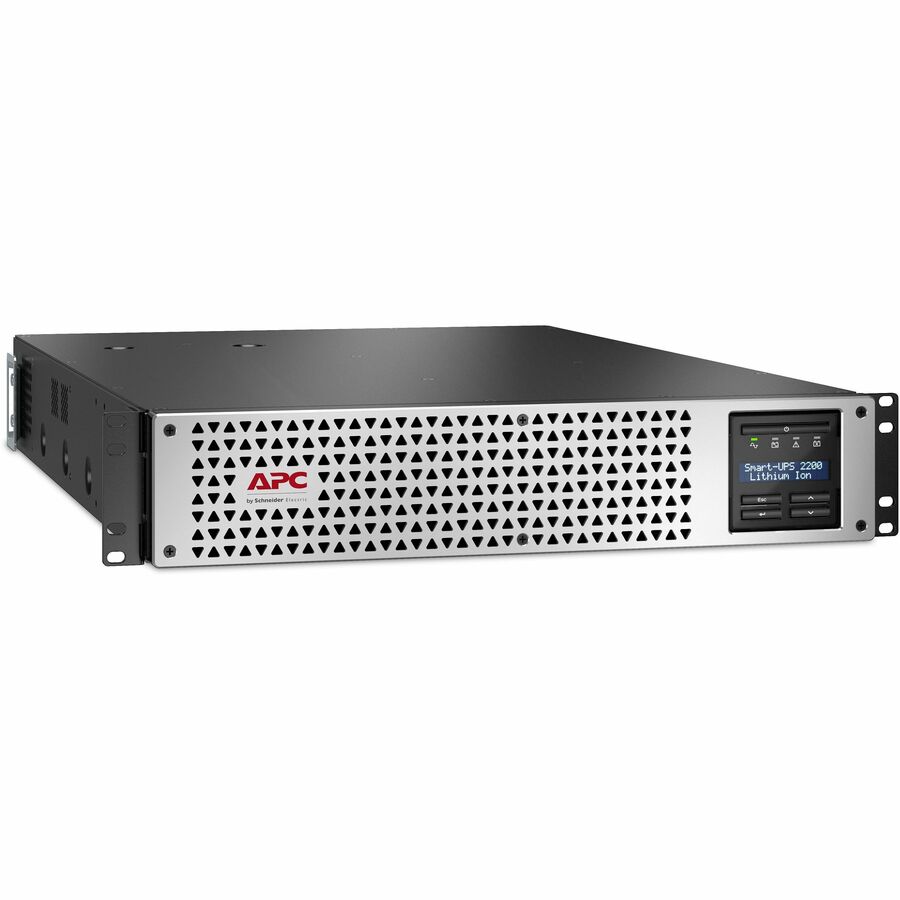

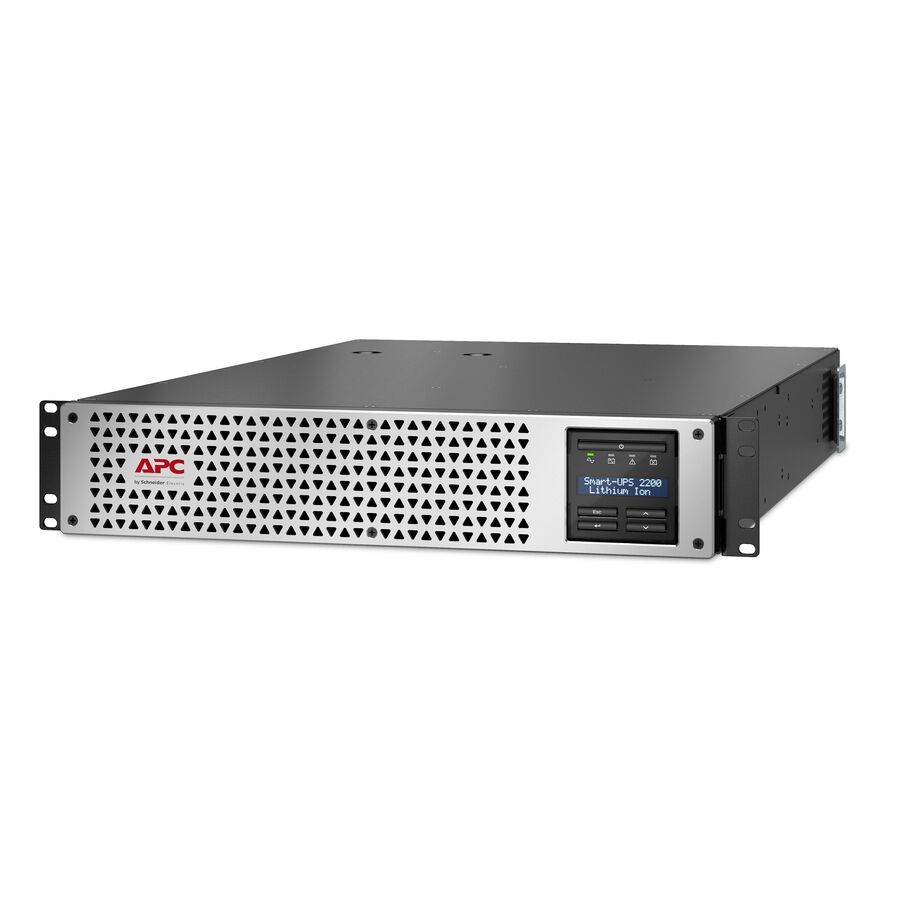

APC Smart-UPS, Line Interactive, 2200VA, Lithium-ion, Rackmount 2U, 120V, 1x NEMA L5-20R+6x NEMA 5-20R outlets, SmartConnect Port+Network Card, AVR
2U Rack-mountable - AVR - 2 Hour Recharge - 7.80 Minute Stand-by - 120 V AC, 110 V AC Input - 120 V AC, 110 V AC Output - Single Phase - Sine Wave - USB - LCD Display - 1 x NEMA L5-20R, 6 x NEMA 5-20R Receptacle(s)
- SKU
- SMTL2K2RM2UCLNC
- Category
- General Purpose UPS
Request pricing
Confirmed with stock and TAA status before any payment.
Genuine Schneider Electric through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- SMTL2K2RM2UCLNC
- Category
- General Purpose UPS
Overview
This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. The 1920VA line interactive 2U rackmount UPS provides pure sine wave power to support critical electronics during power disruptions. It comes with NEMA L5-20P input, 6 NEMA 5-20R and 1 NEMA L5-20R outlets. It has a preinstalled Network Management Card for UPS network-based monitoring and management. It has a preinstalled Network Management Card for UPS network-based monitoring and management. It comes with PowerChute Network Shutdown that provides graceful shutdown of physical servers, virtual machines, and HCI clusters. It offers cloud-based remote power monitoring, UPS firmware upgrades, remote diagnostics and proactive email notifications with recommended actions. The SMTL UPS has a 5-year warranty on the UPS and Lithium-ion battery. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. It provides surge protection against lightning strikes, power sags, brownouts and surges. The SMTL UPS has a 5-year warranty on the UPS and Lithium-ion battery.
More from the Manufacturer
Hot Spots
FAQ
APC, a flagship brand of Schneider Electric, provides clean battery backup power, surge protection, and IT physical infrastructure, ensuring data is available — whenever and wherever you need it.
Warranty
Limited Warranty: 5 Year
Highlights
- 1920VA/1920W line interactive pure sine wave 2U rackmount UPS
- Ideal for small edge environment, back office, network infrastructure and IDF/MDF closets
- Lithium-ion battery minimizes the need to replace battery during the life time of UPS
- Cloud-based remote power monitoring via SmartConnect Ethernet Port
- 1-Year Secure Network Management Card subscription included
- Preinstalled Network Management Card for network-based UPS monitoring & management
- Graceful shutdown of physical servers, virtual machines and HCI Clusters
- Peace of mind with a 5-year warranty on UPS and battery
- 1x NEMA L5-20R in addition to 6x NEMA 5-20R
Specifications
| Application/Usage | IT, Network, Business, Critical System, Server, Virtual Machine, Hyperconverged Infrastructure (HCI), POS, Router, Switch, Hub |
|---|---|
| Battery Life | 10 Year |
| Battery Chemistry | Lithium Ion (Li-Ion) |
| Product Type | Line-interactive UPS |
| Display | LCD |
| Input Voltage | 120 V AC, 110 V AC |
| Manufacturer Part Number | SMTL2K2RM2UCLNC |
| Sound Emission | 55 dB |
| Packaged Quantity | 1 |
| Limited Warranty | 5 Year |
| Output Voltage | 120 V AC, 110 V AC |
| Weight (Approximate) | 70.33 lb |
| Form Factor | Rack-mountable |
| Manufacturer | Schneider Electric SA |
| Product Name | Smart-UPS 2200VA Rack-mountable UPS |
| Product Line | Smart-UPS |
| Surge Energy Rating | 530 J |
| Thermal Dissipation | 63.01 W |
| Waveform Type | Sine Wave |
| Rack Height | 2U |
| Brand Name | APC |
| Plug/Connector Type | NEMA L5-20P |
| Output Frequency | 60 Hz |
| Country of Origin | Philippines |
| Cord Length | 8 ft |
| Height | 3.39" |
| Width | 17.01" |
| Depth | 26.89" |
| Input Frequency | 60 Hz |
| Phase | Single Phase |
| Receptacle Type | NEMA L5-20P |
| Environmentally Friendly | Yes |
| Battery Energy | 1209.6 kJ |
| USB | Yes |
| Maximum Operating Temperature | 104°F (40°C) |
| Number of Batteries | 1 |
| Backup/Run Time (Half Load) | 16.40 Minute |
| Backup/Run Time (Full Load) | 7.80 Minute |
| Load Capacity (VA) | 1920 VA |
| Load Capacity (Watt) | 1920 W |
| Energy Star | Yes |
| AVR | Yes |
| Maximum Operating Elevation | 10000 ft |
| Maximum Storage Elevation | 50000 ft |
| Storage Relative Humidity | 95% |
| Storage Temperature | 5°F (-15°C) - 113°F (45°C) |
| Transfer Time | 10 ms |
| Typical Battery Recharge Time | 2 Hour |
| Product Color | Black, Silver |
| Receptacle Detail | 1 x NEMA L5-20R, 6 x NEMA 5-20R |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Single-use Plastic (SUP) Free Shipping Packaging | No |
