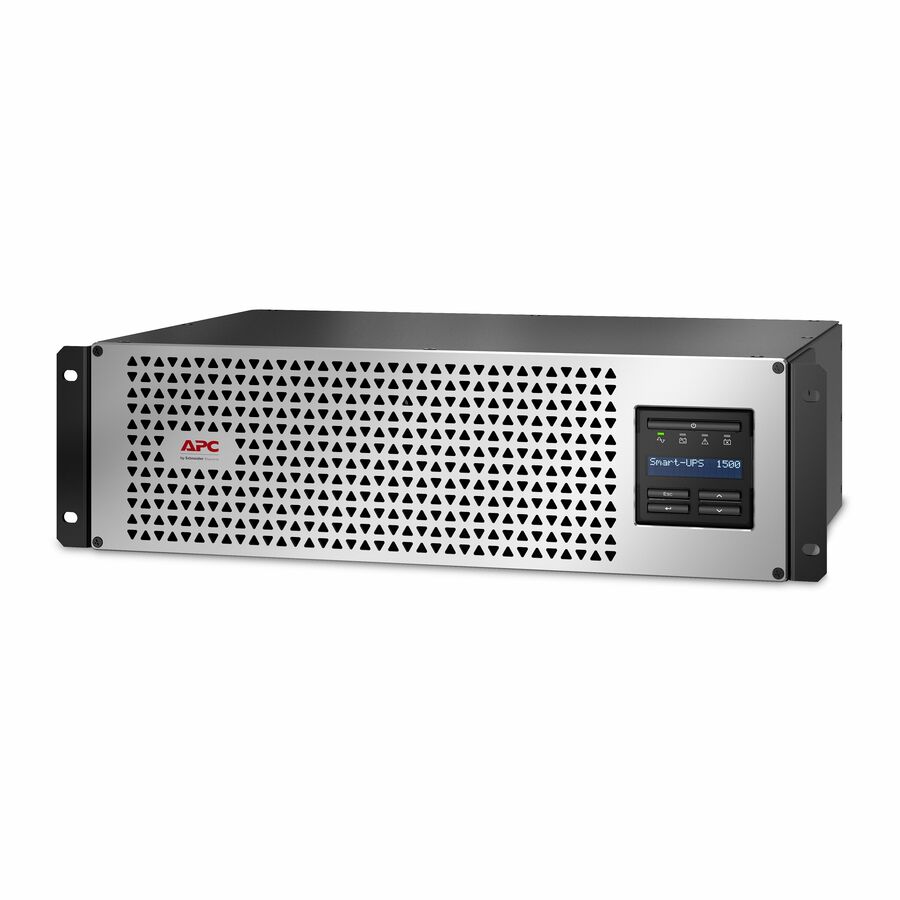

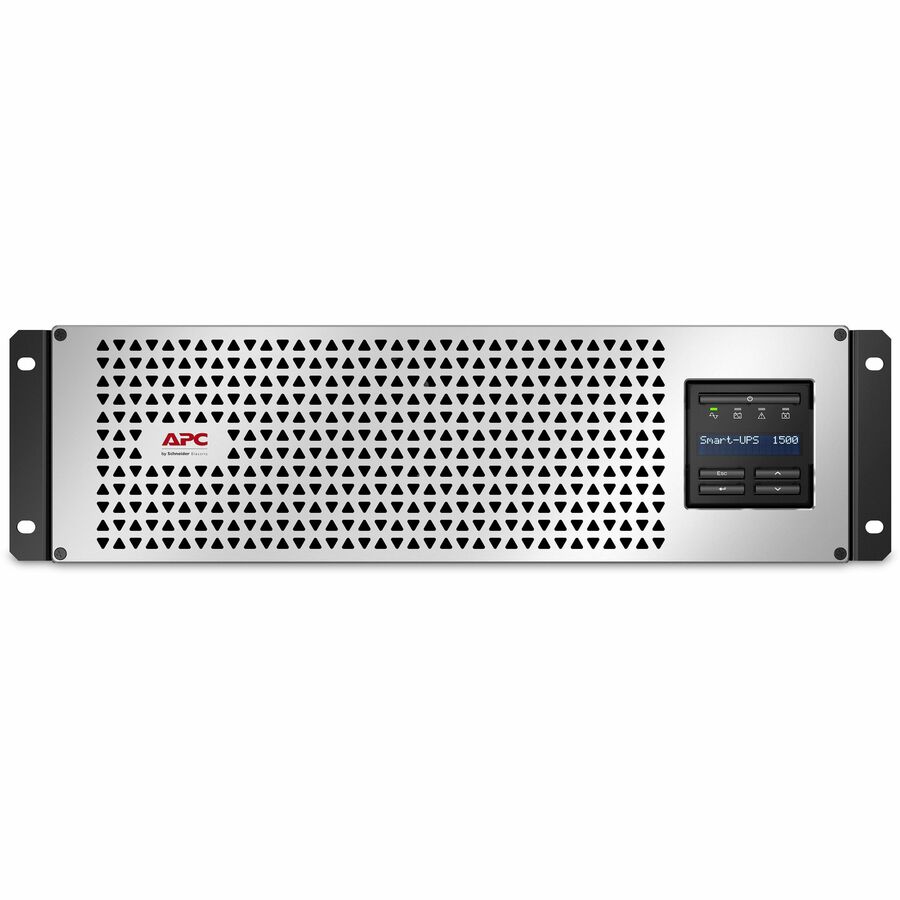

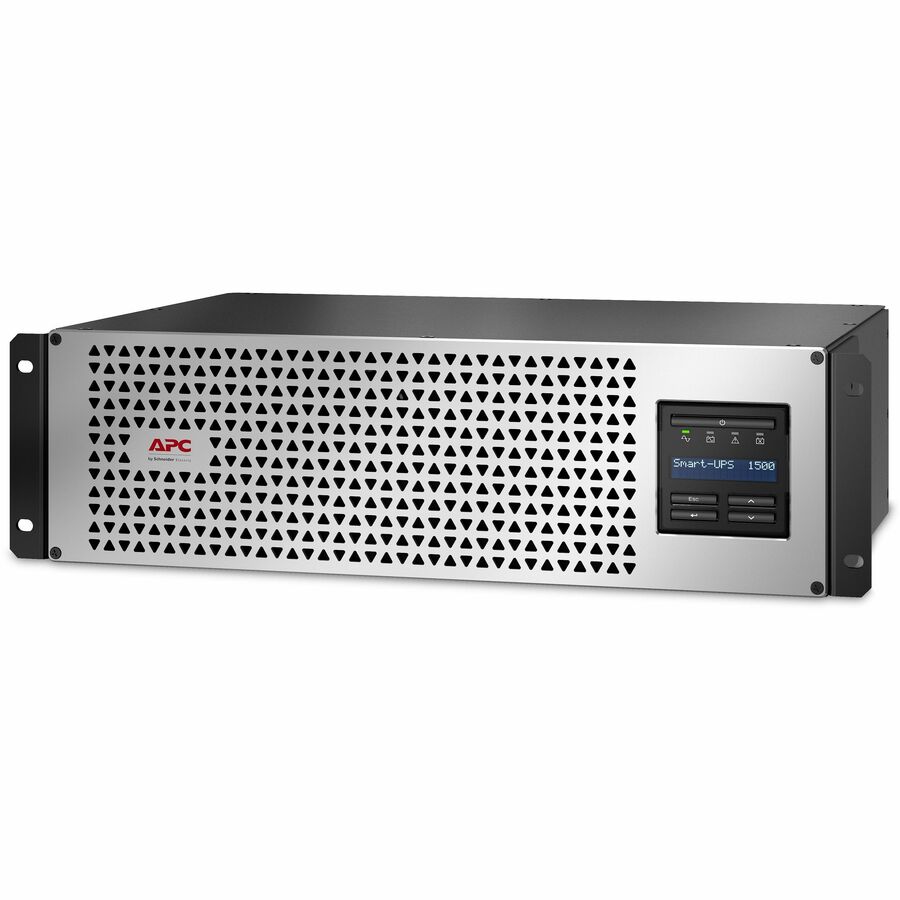

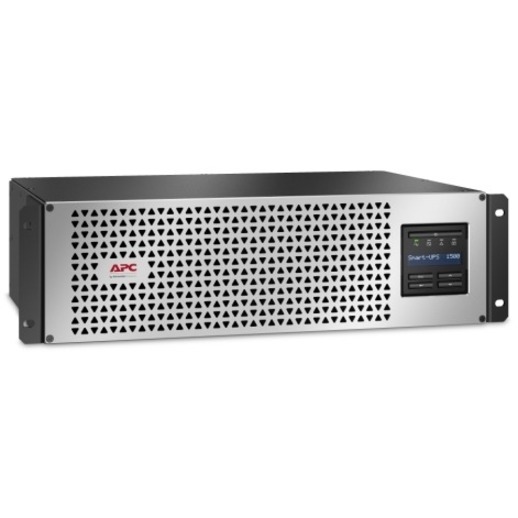

APC Smart-UPS, Line Interactive, 1500VA, Lithium-ion, Rackmount 3U, 230V, 6x IEC C13 outlets, SmartConnect Port+SmartSlot, Short Depth, AVR, LCD
3U Rack-mountable - AVR - 3 Hour Recharge - 5.10 Minute Stand-by - 230 V AC Input - 230 V AC Output - Single Phase - Sine Wave - Serial Port - 6 x IEC 60320 C13 Receptacle(s) - 6 x Battery/Surge Outlet
- SKU
- SMTL1500RMI3UC
- Category
- General Purpose UPS
Request pricing
Confirmed with stock and TAA status before any payment.
Genuine Schneider Electric through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- SMTL1500RMI3UC
- Category
- General Purpose UPS
Overview

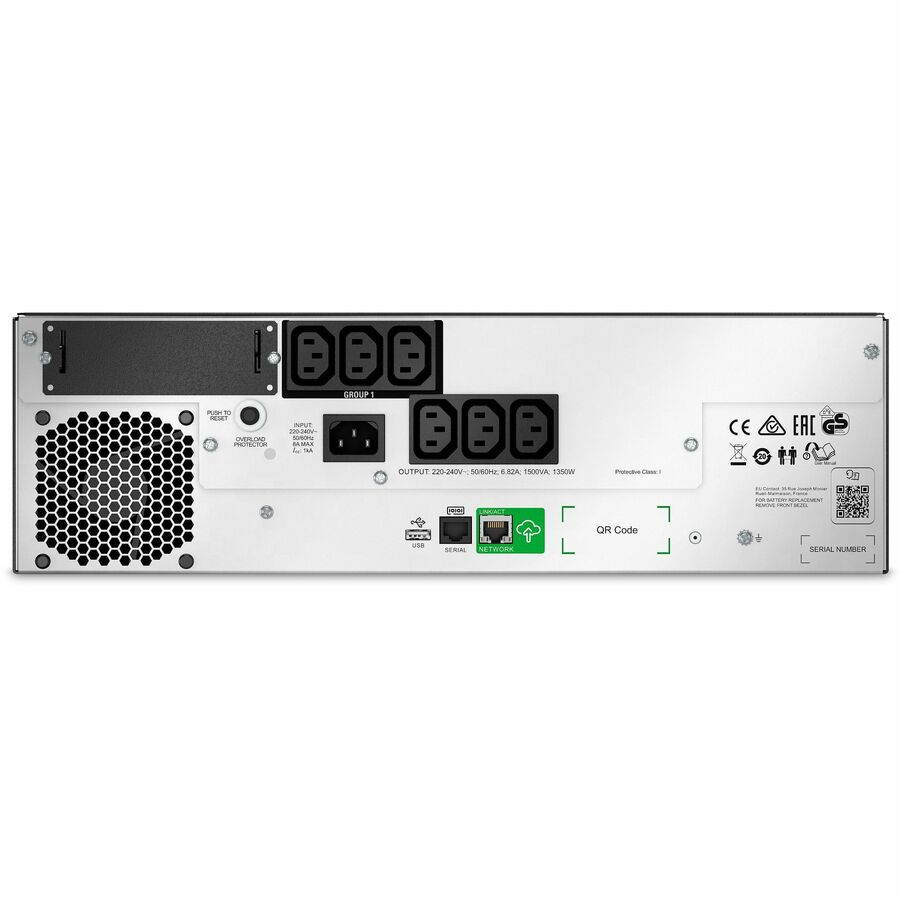

This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. The 1500VA line interactive 3U short depth rackmount UPS provides pure sine wave power to support critical electronics during power disruptions. It comes with IEC 320 C14 input and 6 IEC 320 C13 outlets. It offers cloud-based remote power monitoring, UPS firmware upgrades, remote diagnostics and proactive email notifications with recommended actions. It has a SmartSlot for optional Network Management Card that enables graceful shutdown of physical servers, virtual machines & HCI Clusters via PowerChute Network Shutdown. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. It provides surge protection against lightning strikes, power sags, brownouts and surges. The SMTL UPS has a 5-year warranty on the UPS and Lithium-ion battery.
Warranty
Limited Warranty: 5 Year
Highlights
- 1500VA/1350W line interactive pure sine wave 3U rackmount UPS
- Ideal for small edge environment, back office, network infrastructure and IDF/MDF closets
- Lithium-ion battery minimizes the need to replace battery during the lifetime of UPS
- Short depth UPS provides extra space for cable management
- Cloud-based remote power monitoring via SmartConnect Ethernet Port
- Graceful shutdown using serial or USB cables via PowerChute Serial Shutdown
- Peace of mind with a 5-year warranty on UPS and battery
Specifications
| Application/Usage | Server, POS Terminal, Router, Switch, Network Hub, Critical System, Storage Device, Network Device, Business, Security System, Communication System, IT Equipment |
|---|---|
| Battery Chemistry | Lithium Ion (Li-Ion) |
| Package Contents |
|
| Product Type | Line-interactive UPS |
| Hot Swappable | Yes |
| Input Voltage | 230 V AC |
| Manufacturer Part Number | SMTL1500RMI3UC |
| Limited Warranty | 5 Year |
| Output Voltage | 230 V AC |
| Weight (Approximate) | 42.99 lb |
| Form Factor | Rack-mountable |
| Status Indicators | LED Status Indicators: Unit Status Power Status |
| Manufacturer | Schneider Electric SA |
| Product Name | Smart-UPS Lithium Ion, Short Depth 1500VA, 230V With SmartConnect |
| Product Line | Smart-UPS |
| Surge Energy Rating | 645 J |
| Thermal Dissipation | 39.56 W |
| Waveform Type | Sine Wave |
| Product Series | SMT |
| Rack Height | 3U |
| Brand Name | APC |
| Plug/Connector Type | IEC 60320 C14 |
| Input Voltage Range | 160 V AC - 286 V AC |
| Output Frequency | 60 Hz |
| Alarm | On Battery, Low Battery, Overload, Configurable Delay |
| Country of Origin | Philippines |
| Height | 5.16" |
| Width | 17.24" |
| Depth | 11.89" |
| Input Frequency | 60 Hz |
| Phase | Single Phase |
| Receptacle Type | IEC 60320 C13 |
| Environmentally Friendly | Yes |
| Battery Energy | 1080 kJ |
| Maximum Operating Temperature | 104°F (40°C) |
| Network (RJ-45) | Yes |
| Serial Port | Yes |
| Backup/Run Time (Half Load) | 13.60 Minute |
| Backup/Run Time (Full Load) | 5.10 Minute |
| Load Capacity (VA) | 1500 VA |
| Load Capacity (Watt) | 1350 W |
| Replaceable Battery | Yes |
| AVR | Yes |
| USB (HID Compliant) Port | Yes |
| Maximum Operating Elevation | 9842.52 ft |
| Maximum Storage Elevation | 24606.30 ft |
| Number of Battery & Surge Outlets | 6 |
| Storage Relative Humidity | 0% - 95% |
| Storage Temperature | 14°F (-10°C) - 104°F (40°C) |
| Transfer Time | 6 ms |
| Typical Battery Recharge Time | 3 Hour |
| Product Color | Black, Silver |
| Receptacle Detail | 6 x IEC 60320 C13 |
| Sound Emission (A-Weighted) | 45 dB(A) |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Single-use Plastic (SUP) Free Shipping Packaging | No |
