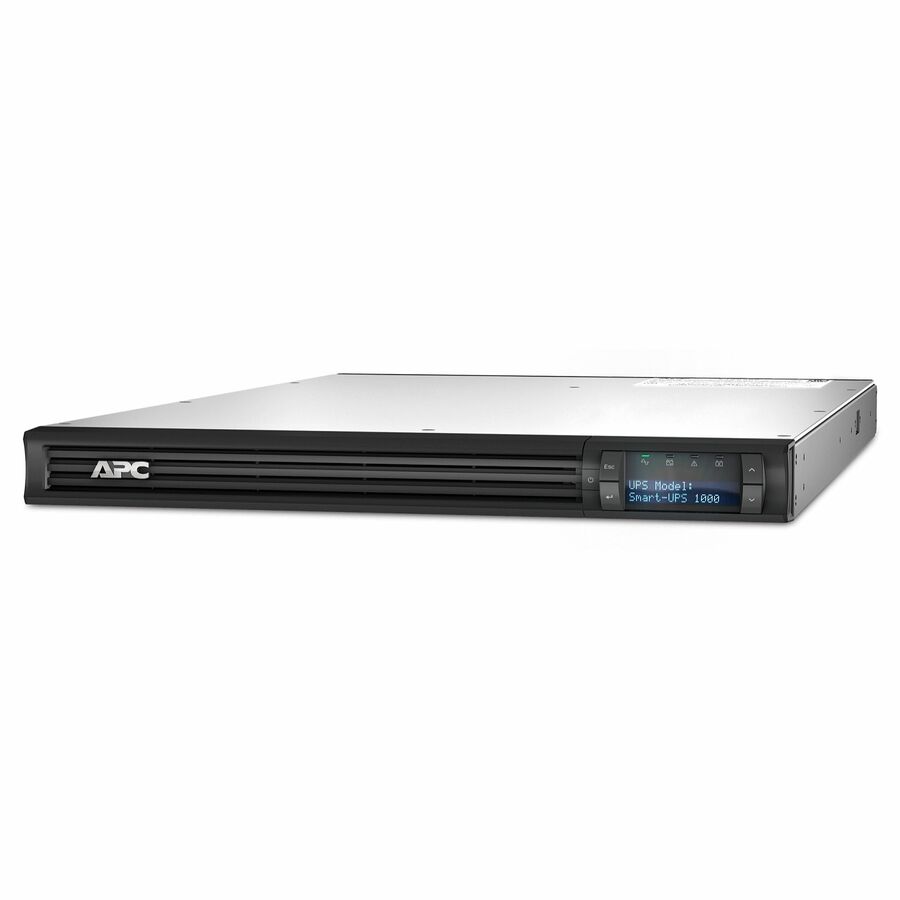

APC Smart-UPS, Line Interactive, 1000 VA, LCD, Rackmount 1U, 120V, 4x NEMA 5-15R outlet, USB, AVR, Short Depth
1U Rack-mountable - AVR - 5 Hour Recharge - 1.55 Minute Stand-by - 120 V AC, 220 V AC Input - 120 V AC Output - Single Phase - Sine Wave - LCD Display - 4 x NEMA 5-15R Receptacle(s)
- SKU
- SMT1000RM1U
- Category
- General Purpose UPS
Request pricing
Confirmed with stock and TAA status before any payment.
Genuine Schneider Electric through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- SMT1000RM1U
- Category
- General Purpose UPS
Overview
This APC Smart-UPS is designed for small and medium businesses to maintain business uptime and continuity The 1000VA line interactive 1U rackmount provides pure sine wave power with a higher power factor to support critical electronics during power disruptions. It comes with NEMA 5-15P input and 4x NEMA 5-15R outlets. It comes with PowerChute Software, which provides graceful shutdown of physical servers, virtual machines, and HCI clusters. It provides surge protection against lightning strikes, power sags, brownouts, and surges. The SMT UPS has a 3-year warranty, and the built-in lead acid battery has a 2-year warranty. This UPS includes intelligent battery management with replacement suggestions, temperature-adjusted charging, self-tests, and battery disconnect notifications.
More from the Manufacturer
Key features
Hot Spots
FAQ
Can the battery be replaced?
Yes, the battery cartridge (APCRBC189) for SMT UPS is user replaceable.
Is this model considered short depth?
Yes. At 22 in., the SMT750RM1U / SMT1000RM1U is short depth. It also has a 1U rack height.
Who is the Smart-UPS SMT range suitable for?
Smart-UPS are for small to medium businesses who do not have the time or resources to monitor their UPS devices but understand the importance of doing so, or who have trusted a Partner with this task.
Does this UPS come with PowerChute Serial Shutdown software?
PowerChute Serial Shutdown is available for download from the apc.com. It is a UPS management software enabling graceful system shutdown in the event of an extended power outage and provides energy management capabilities for desktops, servers, and workstations
Warranty
Additional Warranty Information: Battery: 24 month(s)|UPS: 36 month(s) Limited Warranty: 3 Year
Highlights
- Up to 25% more power (higher PF) & 23% depth reduction (20 in.)
- 1U short depth, rack-mountable design
- LCD status display
- AVR double boost and trim
- USB port for communication
Specifications
| Additional Warranty Information | Battery: 24 month(s)|UPS: 36 month(s) |
|---|---|
| Application/Usage | Business, Server, Virtual Machine, Hyperconverged Infrastructure (HCI) |
| Battery Life | 5 Year |
| Battery Chemistry | Lead Acid |
| Package Contents |
|
| Product Type | Line-interactive UPS |
| Display | LCD |
| Input Voltage | 120 V AC, 220 V AC |
| Manufacturer Part Number | SMT1000RM1U |
| Packaged Quantity | 1 |
| Limited Warranty | 3 Year |
| Output Voltage | 120 V AC |
| Weight (Approximate) | 34.83 lb |
| Form Factor | Rack-mountable |
| Input Current | 8.33 A |
| Manufacturer | Schneider Electric SA |
| Product Name | Smart-UPS SMT 1000VA Rack-mountable UPS |
| Product Line | Smart-UPS |
| Surge Energy Rating | 540 J |
| Thermal Dissipation | 25.79 W |
| Waveform Type | Sine Wave |
| Product Series | SMT |
| Rack Height | 1U |
| Brand Name | APC |
| Plug/Connector Type | NEMA 5-15P |
| Output Frequency | 60 Hz |
| Alarm | On Battery, Low Battery, Configurable Delay |
| Country of Origin | India |
| Cord Length | 8 ft |

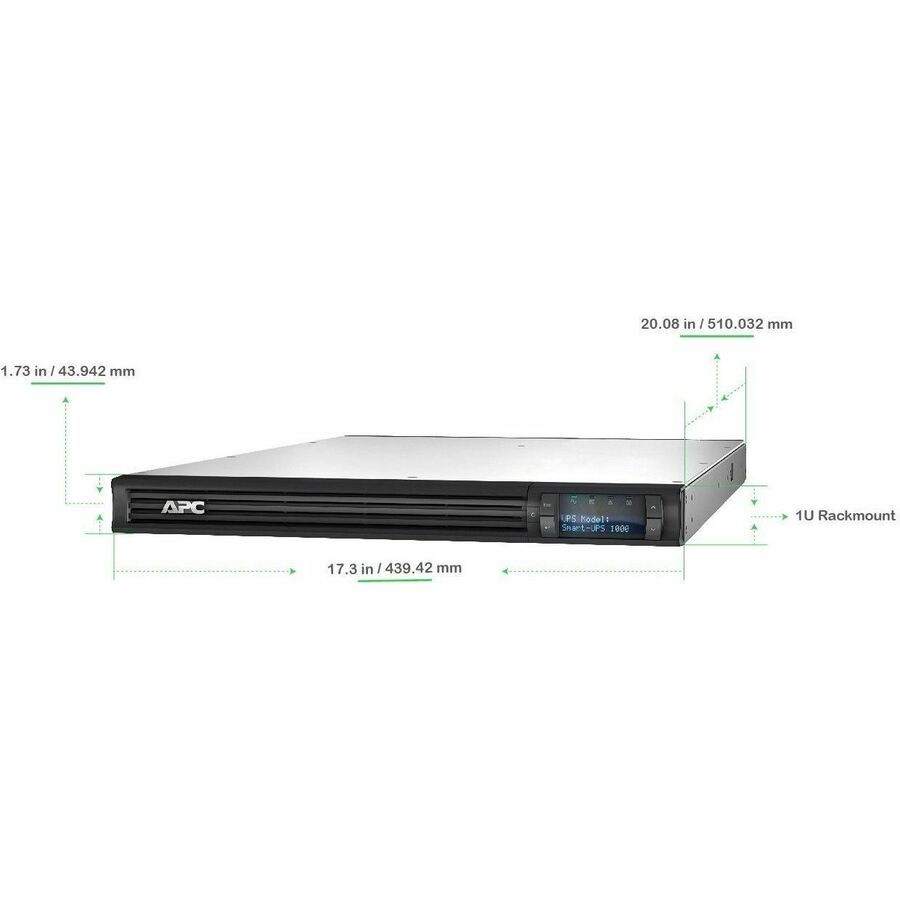

| Height | 1.73" |
| Width | 17.01" |
| Depth | 19.76" |
| Input Frequency | 60 Hz |
| Phase | Single Phase |
| Receptacle Type | NEMA 5-15P |
| Environmentally Friendly | Yes |
| Battery Energy | 604.8 kJ |
| USB | No |
| Maximum Operating Temperature | 104°F (40°C) |
| Backup/Run Time (Half Load) | 9.45 Minute |
| Backup/Run Time (Full Load) | 1.55 Minute |
| Load Capacity (VA) | 1000 VA |
| Load Capacity (Watt) | 800 W |
| Replaceable Battery | Yes |
| AVR | Yes |
| Maximum Operating Elevation | 10000 ft |
| Maximum Storage Elevation | 50000 ft |
| Storage Relative Humidity | 95% |
| Storage Temperature | 5°F (-15°C) - 113°F (45°C) |
| Transfer Time | 8 ms |
| Typical Battery Recharge Time | 5 Hour |
| Product Color | Black |
| Receptacle Detail | 4 x NEMA 5-15R |
| Sound Emission (A-Weighted) | 46 dB(A) |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Single-use Plastic (SUP) Free Shipping Packaging | No |
