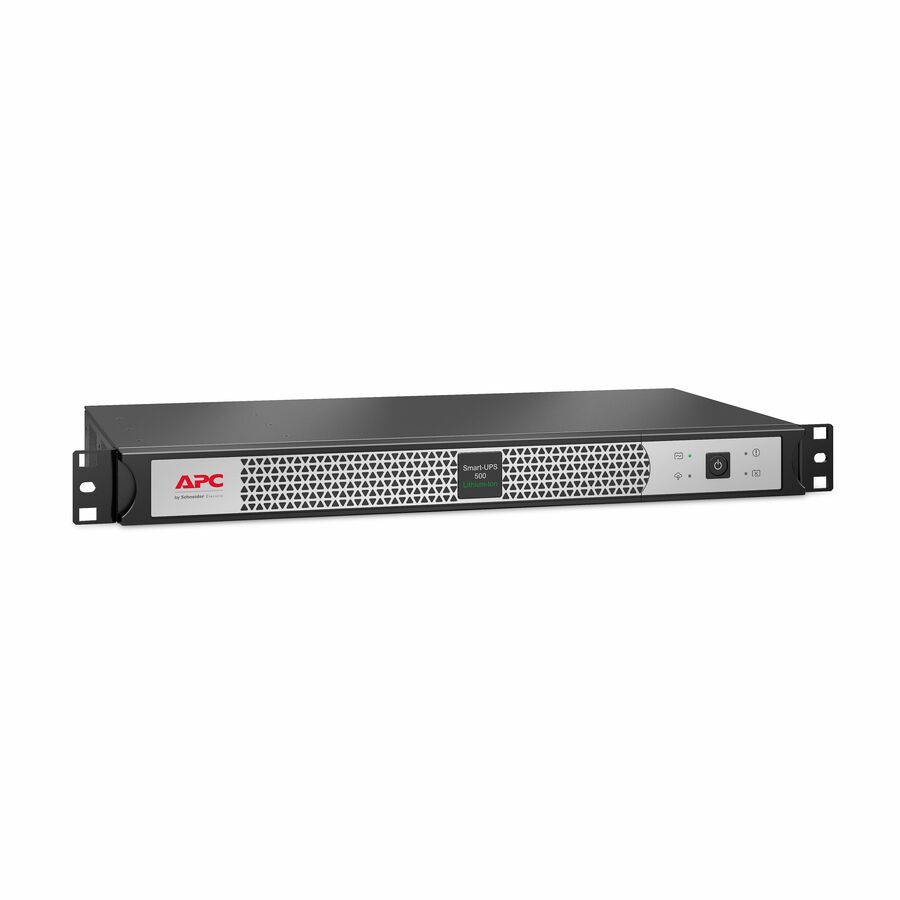

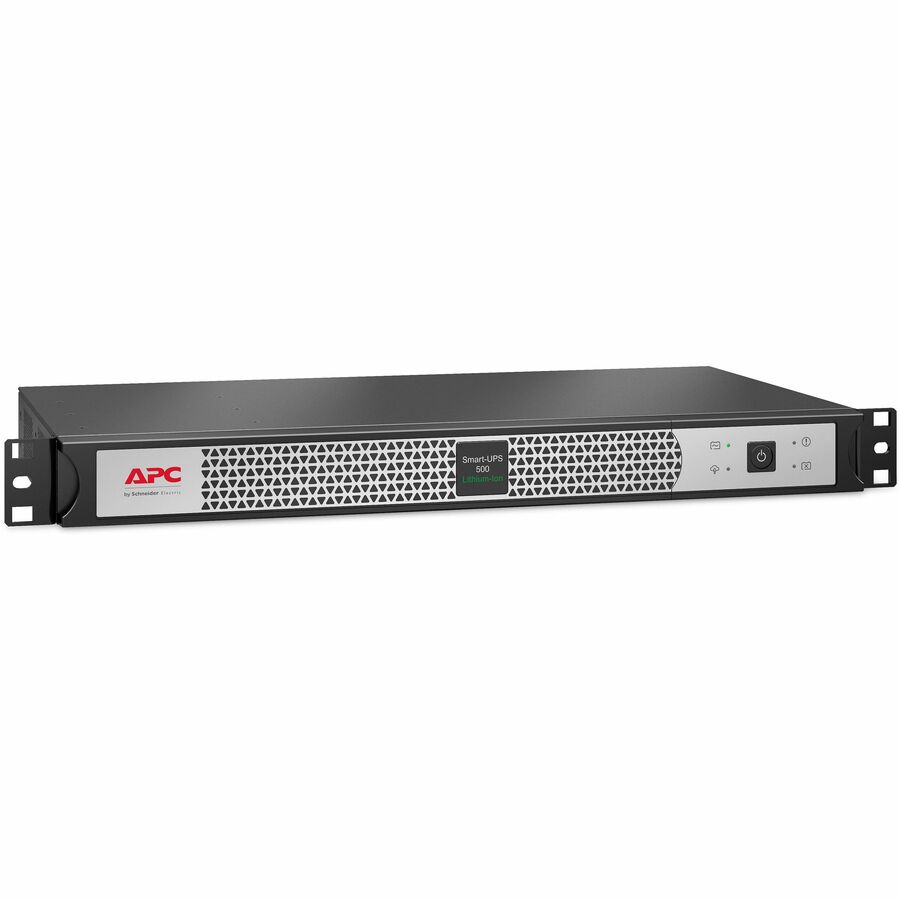

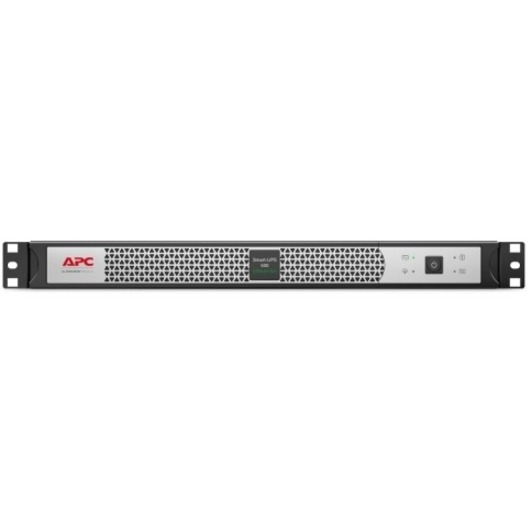

APC Smart-UPS, Line Interactive, 500VA, Lithium-ion, Rackmount 1U, 230V, 4x IEC C13 outlets, SmartConnect Port, Short Depth

1U Rack-mountable - AVR - 3 Hour Recharge - 2.70 Minute Stand-by - 230 V AC Input - 230 V AC Output - Single Phase - Sine Wave - Serial Port - 4 x IEC 60320 C13 Receptacle(s) - 4 x Battery/Surge Outlet

SKU: SCL500RMI1UC
Category: General Purpose UPS

MSRP$963.00

$647.09

Save 33%

Back ordered

Back ordered — ships when restocked.

Genuine Schneider Electric through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

SKU: SCL500RMI1UC
Category: General Purpose UPS

Overview

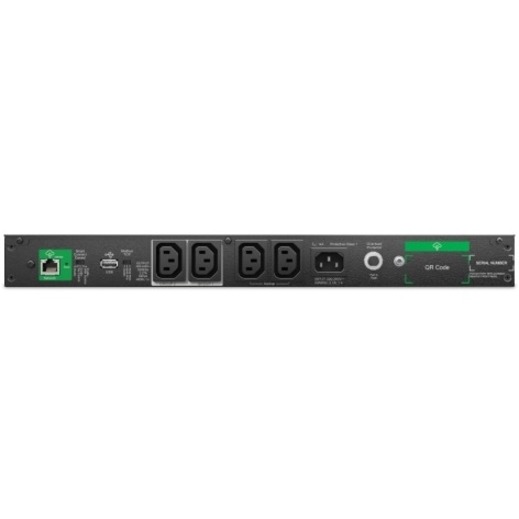

This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 500VA line interactive 1U short depth rackmount UPS with Lithium-ion battery provides pure sine wave power to support critical electronics during power disruptions. It comes with IEC 320 C14 input and 4 IEC 320 C13 outlets. It offers cloud-based remote power monitoring, UPS firmware upgrades, remote diagnostics and proactive email notifications with recommended actions. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. It provides surge protection against lightning strikes, power sags, brownouts and surges. The SCL UPS has a 5-year warranty on the UPS and Lithium-ion battery.

Warranty

Limited Warranty: 5 Year

Highlights

500VA/400W line interactive pure sine wave 1U rackmount UPS
Ideal for small edge environment, back office, network infrastructure and IDF/MDF closets
Lithium-ion battery minimizes the need to replace battery during the life time of UPS
Short depth UPS provides extra space for cable management
Cloud-based remote power monitoring via SmartConnect Ethernet Port
Graceful shutdown using serial or USB cables via PowerChute Serial Shutdown
Peace of mind with a 5-year warranty on UPS and battery

Specifications

Application/Usage	Router, Network Hub, Switch, POS Terminal, Server, Network Device, Mission Critical Equipment
Battery Chemistry	Lithium Ion (Li-Ion)
Package Contents	Installation guide Rack Mounting support rails USB cable
Product Type	Line-interactive UPS
Hot Swappable	Yes
Input Voltage	230 V AC
Manufacturer Part Number	SCL500RMI1UC
Packaged Quantity	1 Each
Limited Warranty	5 Year
Output Voltage	230 V AC
Weight (Approximate)	8.95 lb
Form Factor	Rack-mountable
Status Indicators	Status Indicators: Disconnected battery notification Battery failure notification
Manufacturer	Schneider Electric SA
Product Name	Smart-UPS 500VA Rack/Tower UPS
Product Line	Smart-UPS
Surge Energy Rating	510 J
Waveform Type	Sine Wave
Product Series	SCL
Rack Height	1U
Brand Name	APC
Plug/Connector Type	IEC 60320 C14
Input Voltage Range	208 V AC - 253 V AC
Output Frequency	60 Hz
Alarm	On Battery, Low Battery, Overload
Country of Origin	Philippines
Height	1.73"
Width	17.01"
Depth	9.13"
Input Frequency	63 Hz
Phase	Single Phase
Environmentally Friendly	Yes
Battery Energy	108 kJ
Maximum Operating Temperature	104°F (40°C)
Network (RJ-45)	Yes
Serial Port	Yes
Backup/Run Time (Half Load)	6.30 Minute
Backup/Run Time (Full Load)	2.70 Minute
Load Capacity (VA)	500 VA
Load Capacity (Watt)	400 W
EMI/RFI Noise Filter	Yes
Replaceable Battery	Yes
Energy Star	Yes
AVR	Yes
USB (HID Compliant) Port	Yes
Maximum Operating Elevation	6561 ft
Maximum Storage Elevation	49212 ft
Number of Battery & Surge Outlets	4
Storage Relative Humidity	10% - 90%
Storage Temperature	14°F (-10°C) - 104°F (40°C)
Transfer Time	10 ms
Typical Battery Recharge Time	3 Hour
Product Color	Black, Silver
Receptacle Detail	4 x IEC 60320 C13
Sound Emission (A-Weighted)	45 dB(A)
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
Single-use Plastic (SUP) Free Shipping Packaging	No
