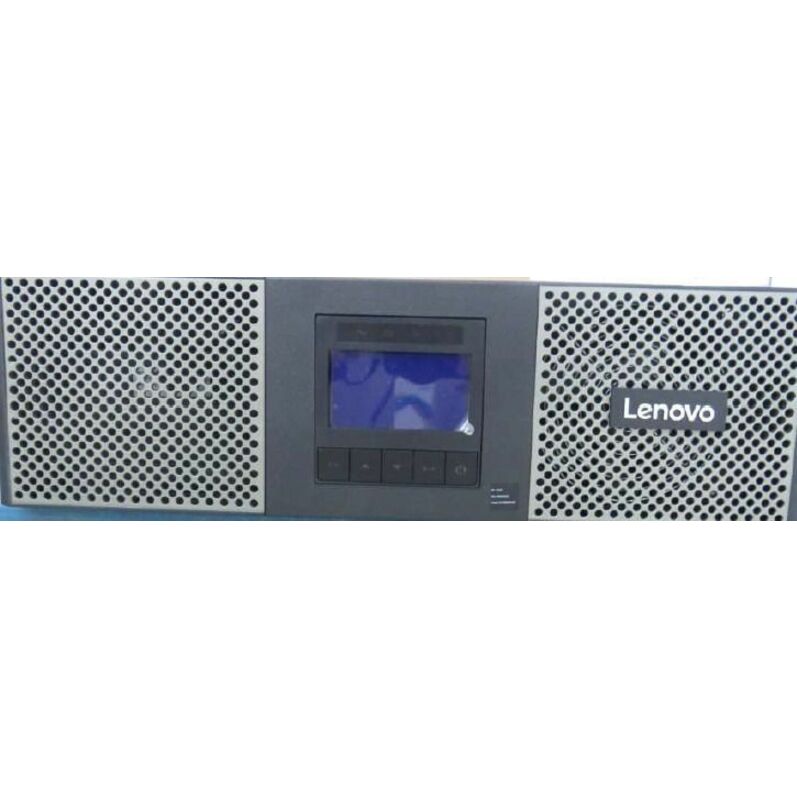

Lenovo RT6kVA 6000VA Rack/Tower UPS
3U Rack/Tower - 3 Minute Stand-by - 230 V AC Input - 200 V AC, 208 V AC, 220 V AC, 230 V AC, 240 V AC Output - Sine Wave - Serial Port - USB - LCD Display - 2 x IEC 60320 C19 (16A), 8 x IEC 60320 C13 (10A) Receptacle(s) - Network Management Card, SNMP/Telnet/HTTP/SSH
- SKU
- 7DD5A00EWW
- Category
- General Purpose UPS
$18,798.85
Back ordered — ships when restocked.
Genuine Lenovo through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- 7DD5A00EWW
- Category
- General Purpose UPS
Overview
The RT5kVA and RT6kVA 3U Rack or Tower Uninterruptible Power Supply-G2 offerings provide extended power protection with increased efficiency and simplified power management to safeguard high-availability of Lenovo server environments. With efficiency ratings of up to 98%, these compact 3U rack or tower designs can help reduce energy usage without compromising performance or reliability. The 3U Rack or Tower UPS-G2 units can be installed in a data center rack cabinet or can be used as tower UPS units in office and distributed IT environments where extended power protection is required.
Did you know?
3U Rack or Tower UPS-G2 units feature Advanced Battery Management (ABM) technology that uses a unique three-stage charging technique that significantly extends battery service life and optimizes recharge time, compared to traditional charging methods.
3U Rack or Tower UPS-G2 units can enhance system availability with individual receptacle groups or load segments that can be programmed and controlled, which allows mission-critical devices to be prioritized during shutdown to preserve battery run time if there is a prolonged power outage.
3U Rack or Tower UPS-G2 units support UPS Manager software that integrates seamlessly with the major virtualization platforms, which enables you to view and manage your entire power system from your current dashboard. It also triggers live migration during power outages and avoids data loss by gracefully shutting down virtual machines and hosts in a cluster if there is an extended power outage.
Highlights
- Offers power supply with zero transfer time taken to the battery and proves ideal for voltage sensitive equipments
- Up to 3 minute runtime on full load to preserve critical data from power shortage interruptions
- 5400 W load capacity - backup power for your valuable electronics
- 6000 VA load capacity provides sufficient backup during power failures
- Replaceable battery for optimal performance with maximum charged dependability
- Lead Acid battery chemistry to better suit your requirements with maximum productivity
- Hardwire Terminal Block plug/connector type for maximum usability with added reliability
- IEC 60320 C19 (16A) receptacle type offers maximum safety, convenience, and increased usability
- Double Conversion Online UPS with server application/usage to ensure maximum usability and reliable power supply
- 230 V AC input voltage for better reliance and maximum dependability
Specifications
| Application/Usage | Server, Data Center, Rack Cabinet, IT, Mission Critical Equipment, Electronic Equipment |
|---|---|
| Battery Chemistry | Lead Acid |
| Package Contents |
|
| Product Type | Double Conversion Online UPS |
| Display | LCD |
| Hot Swappable | Yes |
| Input Voltage | 230 V AC |
| Manufacturer Part Number | 7DD5A00EWW |
| Limited Warranty | 3 Year |
| Output Voltage | 200 V AC, 208 V AC, 220 V AC, 230 V AC, 240 V AC |
| Weight (Approximate) | 105.82 lb |
| Features | Advanced Battery Management (ABM) |
| Form Factor | Rack/Tower |
| Status Indicators | LED indicators: Online On Battery Bypass Fault |
| Input Current | 30 A |
| Manufacturer | Lenovo Group Limited |
| Product Model | RT6kVA |
| Product Name | RT6kVA 6000VA Rack/Tower UPS |
| Network Management | Network Management Card, SNMP/Telnet/HTTP/SSH |
| Waveform Type | Sine Wave |
| Rack Height | 3U |
| Brand Name | Lenovo |
| Plug/Connector Type | Hardwire Terminal Block |
| Input Voltage Range | 200 V AC - 240 V AC |
| Output Frequency | 50 Hz, 60 Hz |
| Height | 5.12" |
| Width | 17.36" |
| Depth | 26.97" |
| Input Frequency | 50 Hz, 60 Hz |
| Receptacle Type | IEC 60320 C19 (16A), IEC 60320 C13 (10A) |
| USB | Yes |
| Minimum Operating Temperature | 32°F (0°C) |
| Maximum Operating Temperature | 104°F (40°C) |
| Network (RJ-45) | Yes |
| Serial Port | Yes |
| Backup/Run Time (Half Load) | 8.50 Minute |
| Backup/Run Time (Full Load) | 3 Minute |
| Battery Characteristics | Leak-proof, Sealed, Maintenance-free, Valve-regulated |
| Load Capacity (VA) | 6000 VA |
| Load Capacity (Watt) | 5400 W |
| Replaceable Battery | Yes |
| Energy Star | Yes |
| EPO Port | Yes |
| Maximum Operating Elevation | 9842.52 ft |
| Transfer Time | 10 ms |
| Receptacle Detail | 2 x IEC 60320 C19 (16A), 8 x IEC 60320 C13 (10A) |
| Efficiency Detail | 94% (Online Mode), 98% (Hi-efficiency Mode) |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
