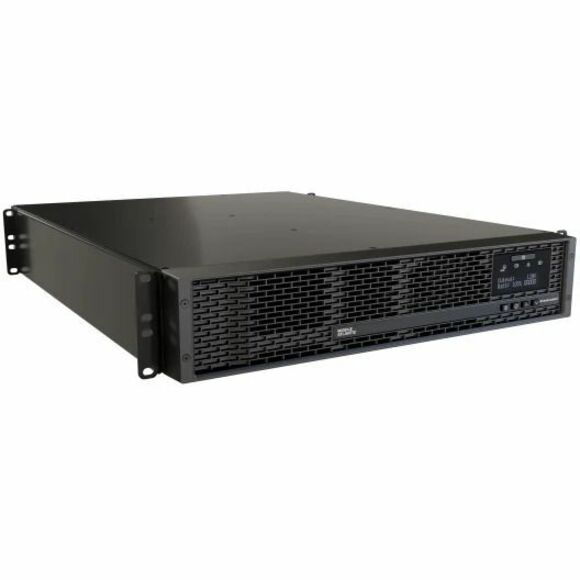

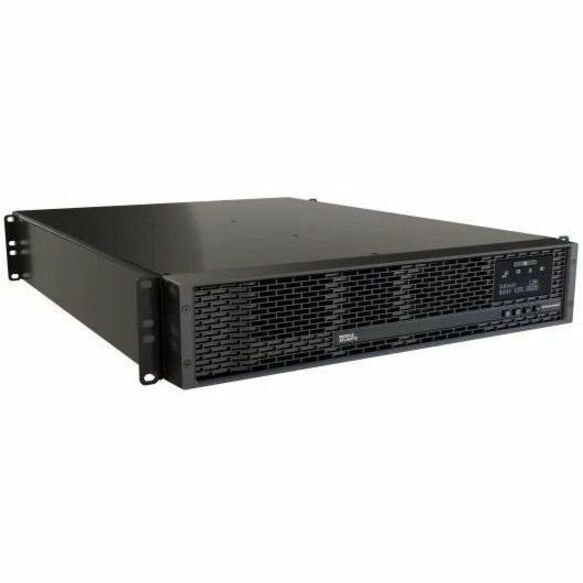

Middle Atlantic NEXSYS 3000VA Rack-mountable UPS
Rack-mountable - 110 V AC, 120 V AC, 127 V AC Output - Pure Sine Wave - 1 x NEMA L5-30R, 6 x NEMA 5-20R Receptacle(s) - Network Card
- SKU
- UPX-RLNK-OL3000R-2
- Category
- General Purpose UPS
MSRP$6,844.00
$4,055.70
Save 41%Back ordered — ships when restocked.
Genuine Legrand through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- UPX-RLNK-OL3000R-2
- Category
- General Purpose UPS
Overview
NEXSYS is built on a promise that we've kept for over two decades - more than half the life of the company - that our power products are designed, engineered, and built for AV. It's one thing to say it, it's another thing to prove it. And our NEXSYS Online UPSs prove it, we promise. They are built with premium components to keep your AV systems running as smoothly as you'd expect.
Control Concepts Supported Product
Have the confidence that our modules and plug-ins are developed and backed by Control Concepts, the premier software developer for the AV industry.

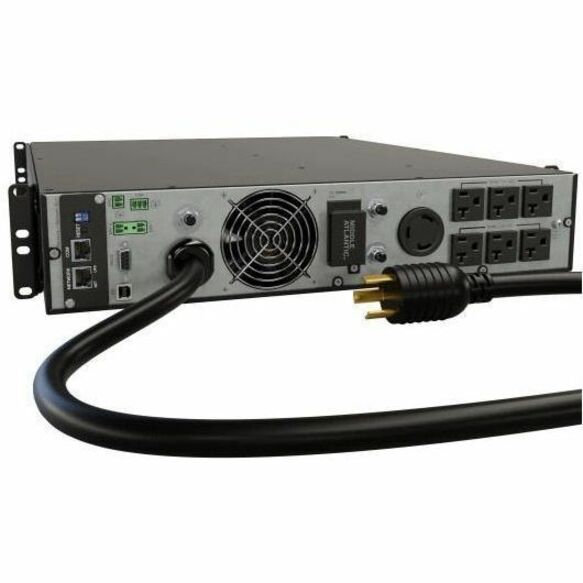

• 7 Outlets with Bank Control
• (2) outlet banks (top and bottom) with 3 outlets each
• (6) NEMA 5-20R outlets
• (1) NEMA L5-30R not controlled but always on when UPS is turned on
• 3000VA and 30 Amp
An Out-of-Box(y) Experience. Everything is assembled and connected right from the factory saving you time during your installations
• Rack ears are pre-installed with the "4-Post" mounting brackets ready to be rack mounted even if you have a 3rd pair of rackrail
• The battery is already connected so just plug it in
Customization is a Breeze. The NEXSYS Power Management Software on your PC allows you to customize and configure various settings and notifications if you don't like our default settings - we won't be offended
RackLink? Remote Management. RackLink compatible for remote monitoring and management right out of the box! Use the RackLink Discovery Tool on your on PC, Apple or Android devices and connect directly to the UPS.
Pure Power. All NEXSYS Online Double Conversion UPSs have a Pure Sine Wave output providing the cleanest power to your connected equipment, especially the most sensitive equipment
No time to wait. Absolute zero transfer time because the connected equipment is ALWAYS powered from the battery. Keep in mind, that batteries in Online UPSs do need to be replaced more frequently, but NEXSYS will give you the heads up when that time comes.
"NEXSYS, alert me when...". Set reminders or notifications for things like battery replacement, etc. via email or on the UPS
Swap it like it's hot. Hot-swappable battery from the front access panel for easy service without disrupting the system
Energy Star Certified
• The ONLY Online UPS with Energy Star in the AV market
• U.S. Department of Energy Compliant for energy efficiency
Highlights
- Offers power supply with zero transfer time taken to the battery and proves ideal for voltage sensitive equipments
- 2700 W load capacity - backup power for your valuable electronics
- 3000 VA load capacity - work without any interruption during power outages
- Replaceable battery for maximum feasibility and better usability
- NEMA L5-30P plug/connector type for maximum usability with added reliability
- NEMA L5-30R receptacle type offers ease of operation with maximum efficiency
- 110 V AC output voltage for maximum dependability and added productivity
- Rack-mountable double conversion online ups allows a clutter-free, convenient usage with increased efficiency
Specifications
| Package Contents |
|
|---|---|
| Product Type | Double Conversion Online UPS |
| Hot Swappable | Yes |
| Manufacturer Part Number | UPX-RLNK-OL3000R-2 |
| Packaged Quantity | 1 |
| Limited Warranty | 2 Year |
| Output Voltage | 110 V AC, 120 V AC, 127 V AC |
| Weight (Approximate) | 64.20 lb |
| Form Factor | Rack-mountable |
| Manufacturer | Legrand Group |
| Product Name | NEXSYS 3000VA Rack-mountable UPS |
| Network Management | Network Card |
| Product Line | NEXSYS |
| Waveform Type | Pure Sine Wave |
| Brand Name | Middle Atlantic |
| Plug/Connector Type | NEMA L5-30P |
| Cord Length | 10.17 ft |
| Height | 22" |
| Width | 19" |
| Depth | 3.50" |
| Receptacle Type | NEMA L5-30R, NEMA 5-20R |
| Minimum Operating Temperature | 32°F (0°C) |
| Maximum Operating Temperature | 104°F (40°C) |
| Load Capacity (VA) | 3000 VA |
| Load Capacity (Watt) | 2700 W |
| Replaceable Battery | Yes |
| Energy Star | Yes |
| Product Color | Black |
| Receptacle Detail | 1 x NEMA L5-30R, 6 x NEMA 5-20R |
| Energy Efficiency Certification | ENERGY STAR 2.0 |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS), Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
