Middle Atlantic Forward FWD-CBS-1.5KVA-B27 1500VA Rack-mountable UPS

2U Rack-mountable - AVR - 6 Minute Stand-by - 120 V AC Input - 110 V AC, 127 V AC Output - Pure Sine Wave - 8 x NEMA 5-15R Receptacle(s)

SKU
FWD-CBS-1.5KVA-B27
Category
General Purpose UPS

MSRP$3,680.00

$2,180.74

Save 41%
Back ordered

Back ordered — ships when restocked.

Get a quote

Genuine Legrand through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

SKU
FWD-CBS-1.5KVA-B27
Category
General Purpose UPS

Overview

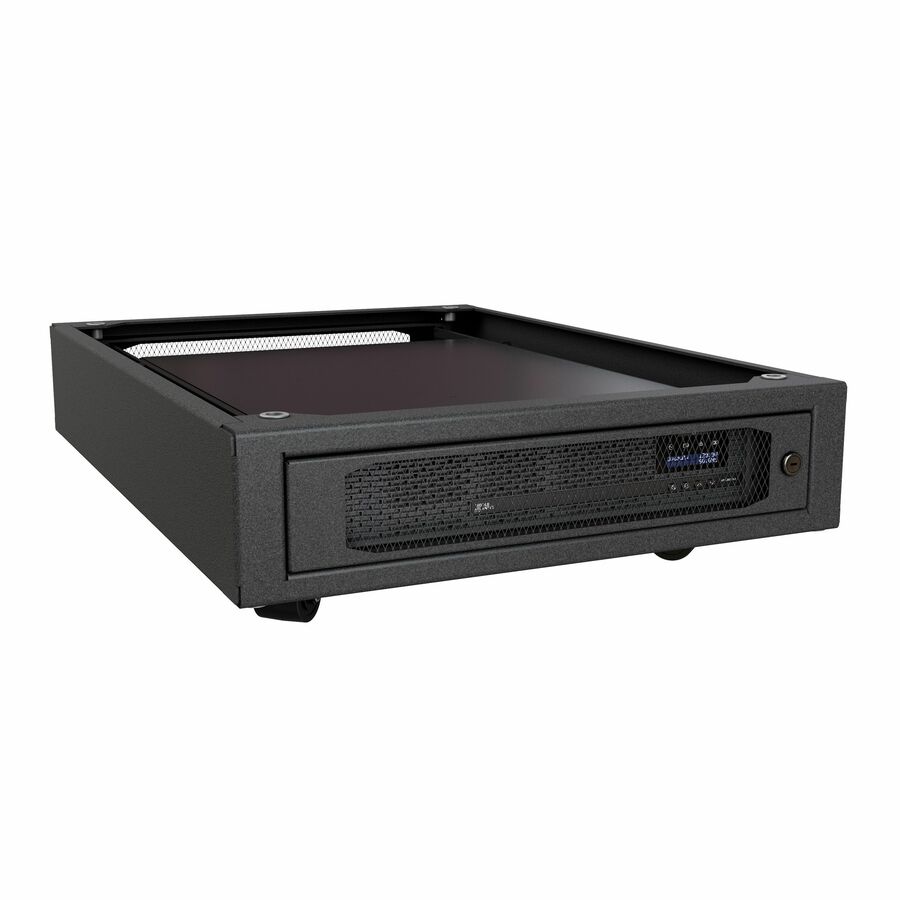

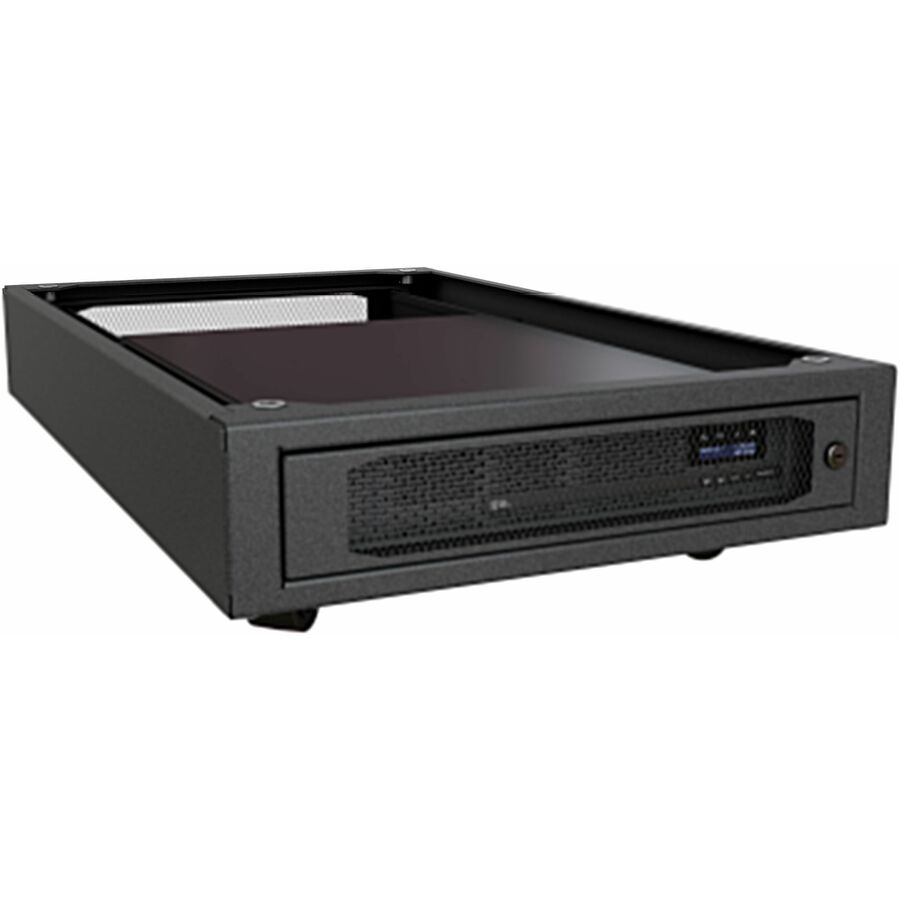

The NEW 27" Deep Forward UPS Caster Base now includes a NEXSYS? 1500VA UPS!

Your AV system and your back are going to thank you.

Never mount a UPS again. Get the Forward UPS Caster Base to ensure your system has the backup battery power it needs while you enjoy serious labor savings and make your rack mobile.

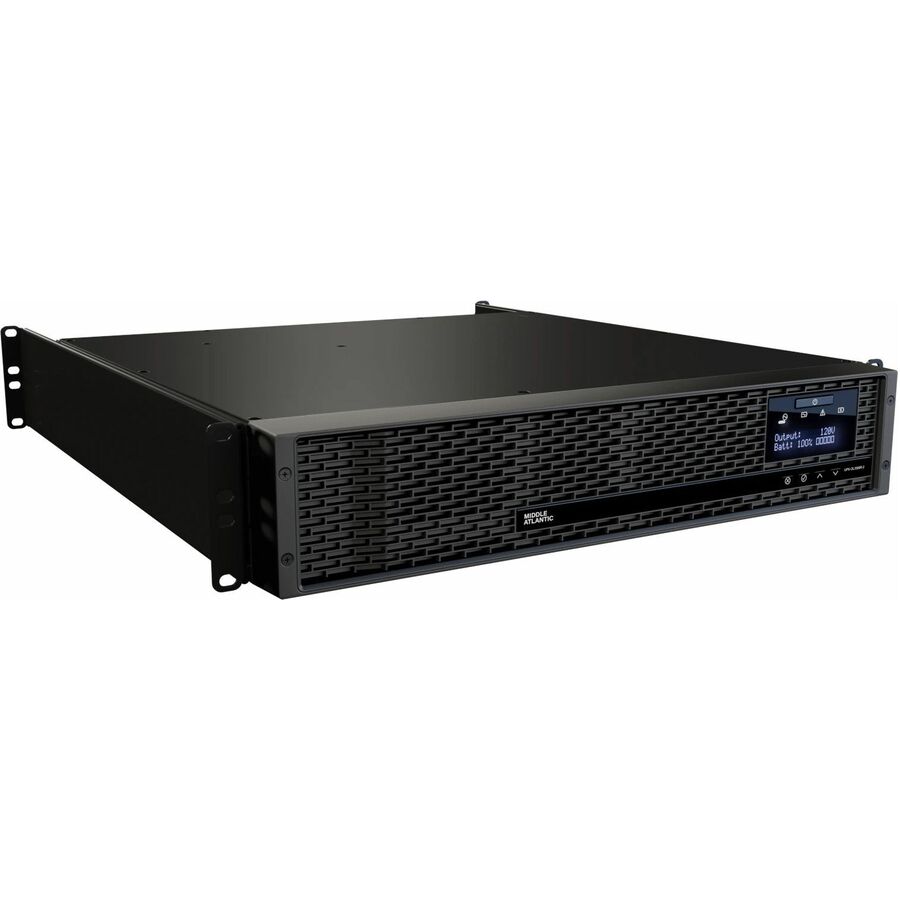

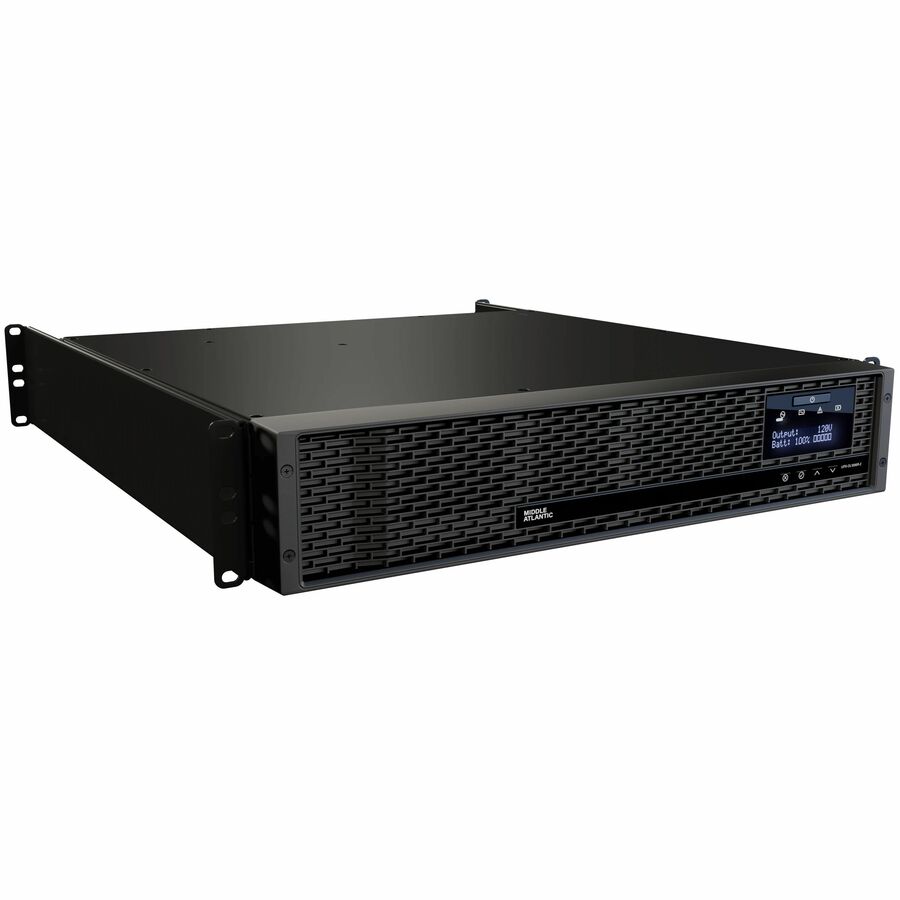

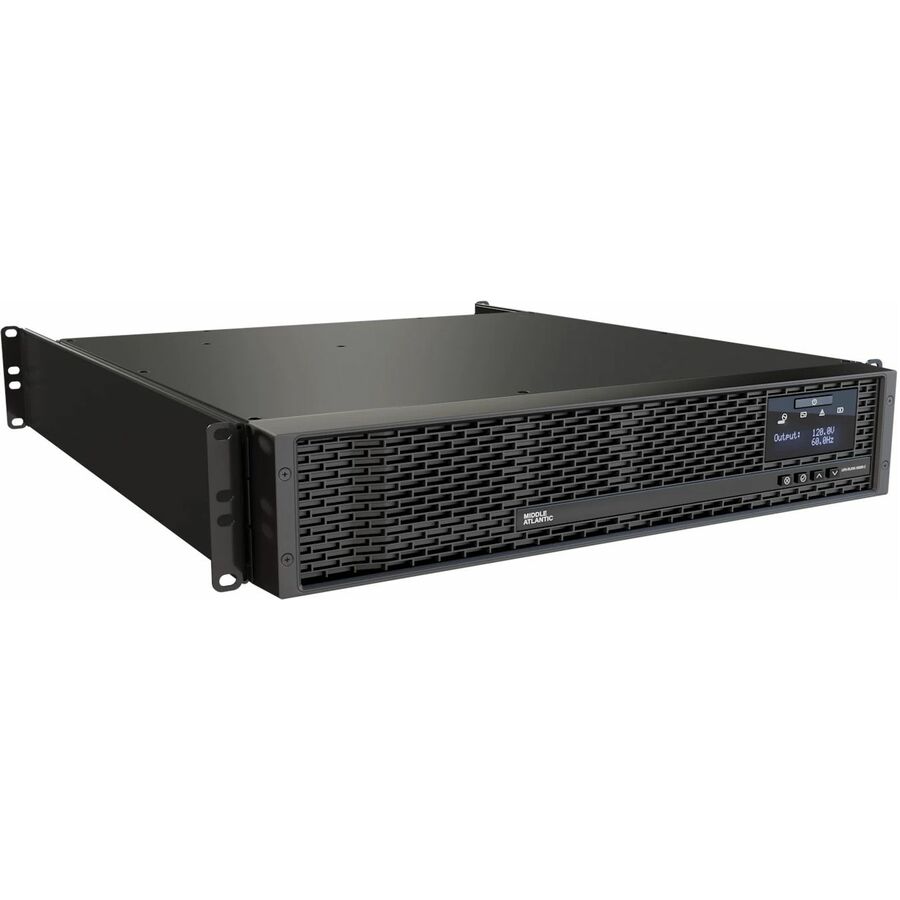

The base includes a pre-installed UPS, Middle Atlantic's 15 Amp, 8 Outlet NEXSYS? UPX-1500R-2 , in a rugged housing ready to withstand the demands of site transport. To complete the install, just place the BGR rack on top and plug in any gear you want to backup.

• Save critical equipment and labor at the same time - No need to rackmount a UPS again!

• Front and Rear perforated locking access panels for security while maintaining visibility of the UPS

• Easily bolts to BGR Series rack using threaded Rivnut inserts

• Key UPX-1500R-2 Features: EnergyStar Certified - 8 Outlets with Bank Control - (2) outlet banks with 4 outlets each - Pure Sine Wave output and AVR (automatic voltage regulation) providing the cleanest power to your connected equipment, especially the most sensitive equipment - Add RackLink? Remote Management.

Highlights

  • Works adequately in situations where the supply is prone to sags and surges
  • Keep your sensitive devices powered with a backup of up to 6 minute at full load
  • 1500 VA load capacity - work without any interruption during power outages
  • NEMA 5-15P plug/connector type for maximum usability with added reliability
  • NEMA 5-15R receptacle type offers maximum safety, convenience, and increased usability
  • 120 V AC input voltage for maximum feasibility and added productivity
  • 110 V AC output voltage for maximum dependability and added productivity
  • Rack-mountable line-interactive ups allows easy and convenient usage without any hassle

Specifications

Additional Warranty Information
  • UPX-1500R-2 shall be warrantied to be free from defects in materials and workmanship under normal use and conditions for a period of 3 years; battery shall be warrantied for a period of 2 years.
  • Forward Family UPS Base sheetmetal shall be warrantied to be free from defects in material or workmanship under normal use and conditions for the lifetime of the unit; casters shall be warrantied for a period of 7 years.
Package Contents
  • Forward FWD-CBS-1.5KVA-B27 1500VA Rack-mountable UPS
  • Mounting Hardware
Product TypeLine-interactive UPS
Hot SwappableYes
Input Voltage120 V AC
Manufacturer Part NumberFWD-CBS-1.5KVA-B27
Output Voltage110 V AC, 127 V AC
Weight (Approximate)162.04 lb
Form FactorRack-mountable
Input Current15 A
ManufacturerLegrand Group
Product ModelFWD-CBS-1.5KVA-B27
Product NameForward FWD-CBS-1.5KVA-B27 1500VA Rack-mountable UPS
Product LineForward
Surge SuppressionYes
Waveform TypePure Sine Wave
Rack Height2U
Brand NameMiddle Atlantic
Plug/Connector TypeNEMA 5-15P
Cord Length5.91 ft
Height7.40"
Width23"
Depth27"
Input Frequency60 Hz
Receptacle TypeNEMA 5-15R
Minimum Operating Temperature32°F (0°C)
Maximum Operating Temperature104°F (40°C)
Backup/Run Time (Half Load)13 Minute
Backup/Run Time (Full Load)6 Minute
Load Capacity (VA)1500 VA
TAA CompliantNo
Energy StarYes
AVRYes
Product ColorBlack
Receptacle Detail8 x NEMA 5-15R
Environmental ComplianceRestriction of Hazardous Substances (RoHS)
