Lantronix

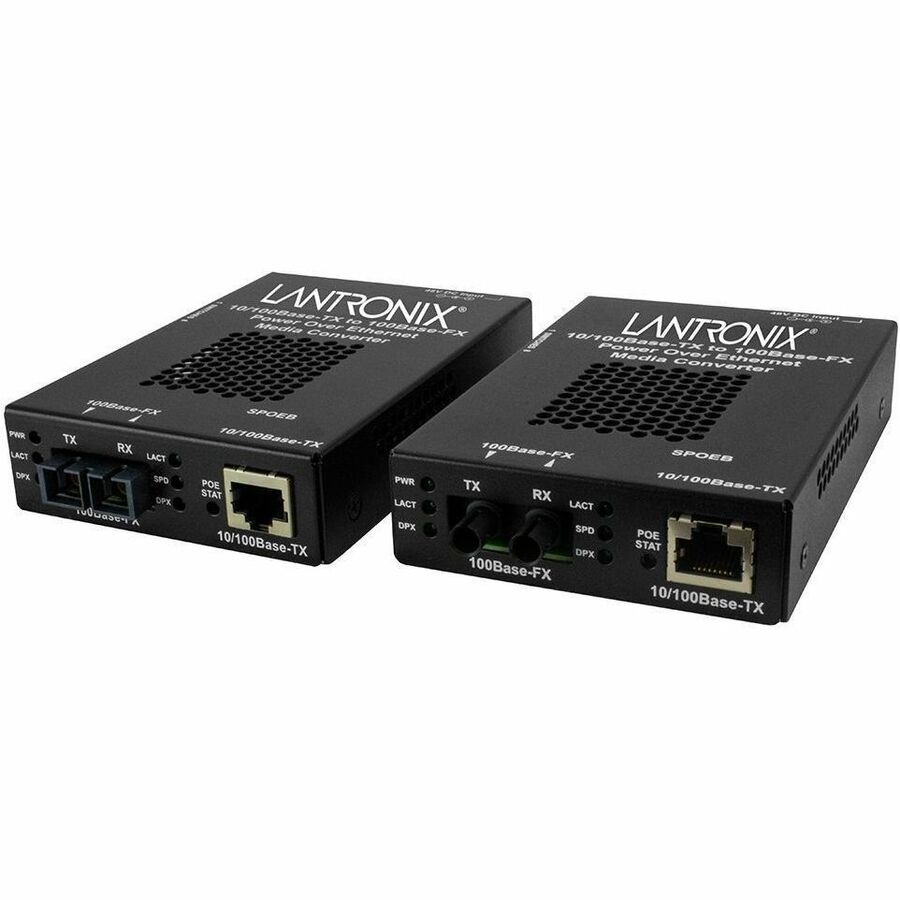

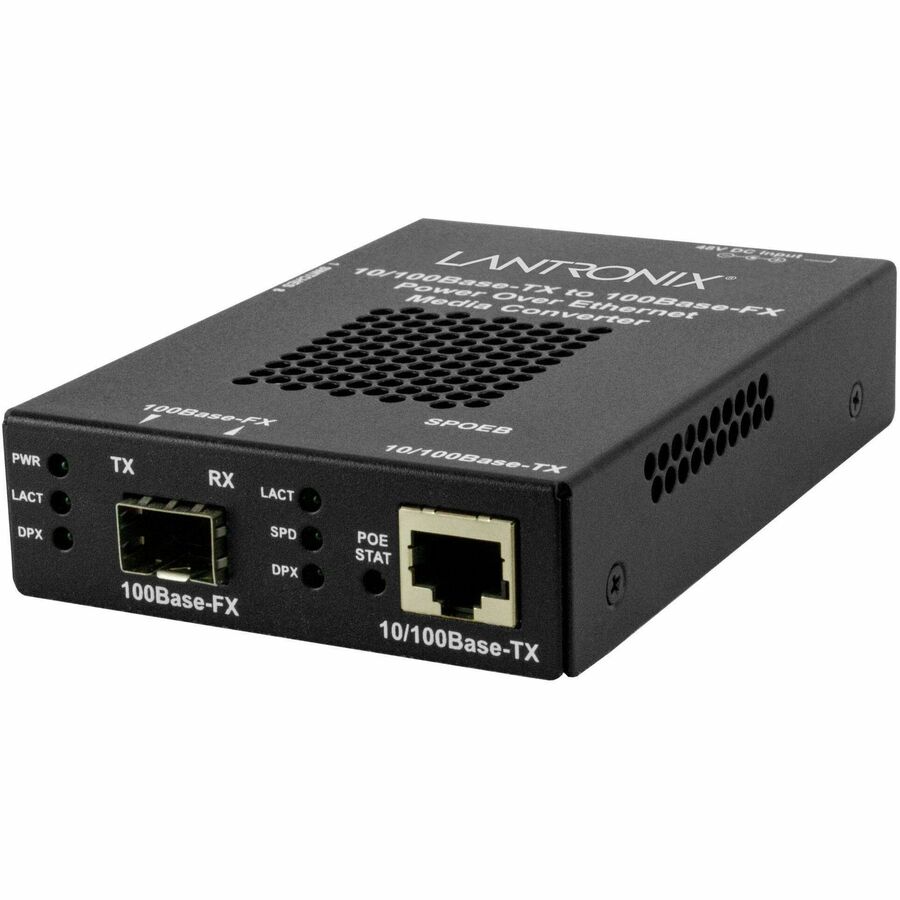

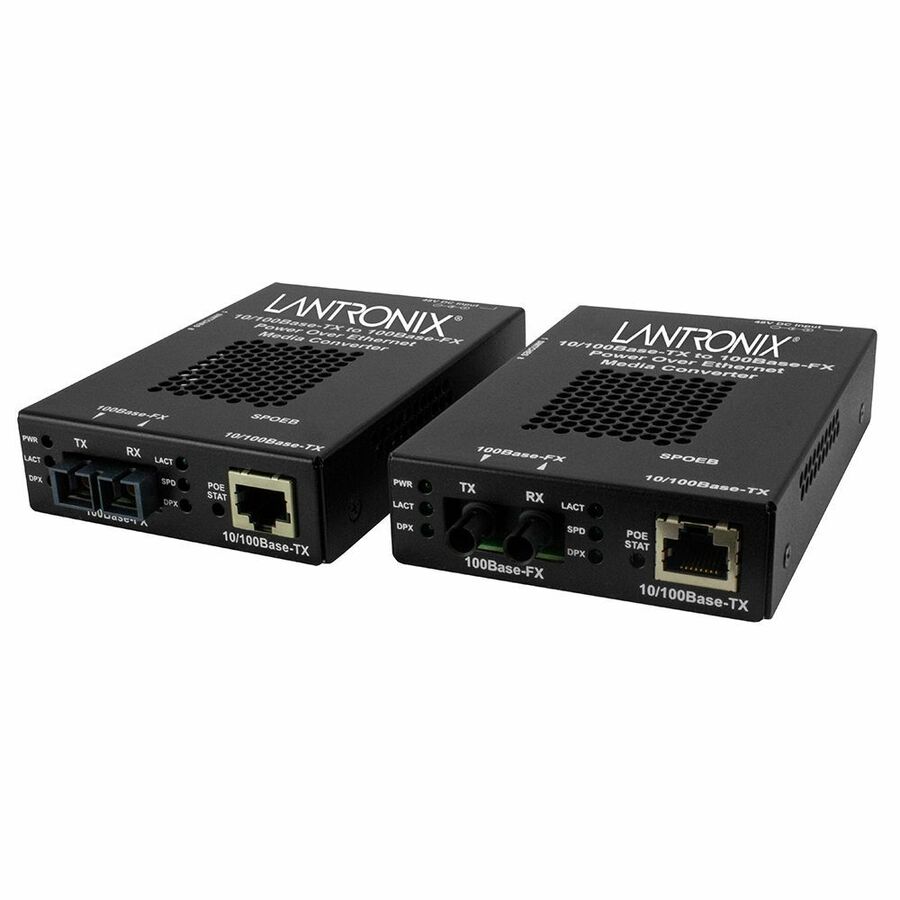

Stand-alone Fast Ethernet PoE Media Converter 10/100Base-TX PoE PSE to 100Base-FX
10/100BASE-TX RJ45 PoE to 100BASE-FX, MM LC, 2 KM with -BR Power Supply
- SKU
- SPOEB1039-105-BR
- Category
- Transceivers/Media Converters
MSRP$398.00
$288.67
Save 27%Back ordered
Back ordered — ships when restocked.
Genuine Lantronix through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- SPOEB1039-105-BR
- Category
- Transceivers/Media Converters
Overview
The SPOEB Series is a 10/100 Ethernet copper to fiber PoE media converter that enables enterprises to provide power to network devices over the existing CAT5 data connection. NDAA Compliant, TAA Compliant
Highlights
- External AC power supply
- IEEE 802.3af Power-over-Ethernet Compatible
- 48 VDC PSE Output Voltage
- Signal Pair or Spare Pair Power Insertion
- PD Detection Signature
- Over-Current Protection & Under-Current Detection
- Powered Device Reset
- Switch selectable and port settings
- Minimum Load Sensing
- Fault Protection Input
- Auto-Negotiation
- Auto-MDI/MDIX
- Link Pass Through LPT
- Far-End-Fault FEF
- Automatic Link Restoration
Specifications
| Package Contents |
|
|---|---|
| Product Type | Transceiver/Media Converter |
| Manufacturer Part Number | SPOEB1039-105-BR |
| Maximum Distance Supported | 2 km |
| Power Source | Power Supply |
| Limited Warranty | Lifetime |
| Weight (Approximate) | 2 lb |
| Form Factor | Wall Mountable, Rail-mountable, Standalone |
| Manufacturer | Lantronix, Inc |
| Product Model | SPOEB1039-105 |
| Product Name | Stand-alone Fast Ethernet PoE Media Converter |
| Network Technology | 10/100Base-T, 100Base-FX |
| Power Consumption | 20 W |
| Product Series | SPOEB |
| Brand Name | Lantronix |
| Height | 1" |
| Width | 3.3" |
| Depth | 4.8" |
| Maximum Data Transfer Rate | 100 Mbit/s |
| Ethernet Technology | Fast Ethernet |
| Network (RJ-45) | Yes |
| Number of PoE (RJ-45) Ports | 1 |
| Number of LC Ports | 1 |
| Media Type Supported | Optical Fiber, Twisted Pair |
| Fiber Mode Supported | Multi-mode |
| Total Number of Ports | 2 |
| LC Port Type | Duplex |
| PoE Port Type | PSE |
| TAA Compliant | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS), Waste Electrical and Electronic Equipment Directive (WEEE) |
| Fiber Optic Cable Wavelength | 1300 nm |
