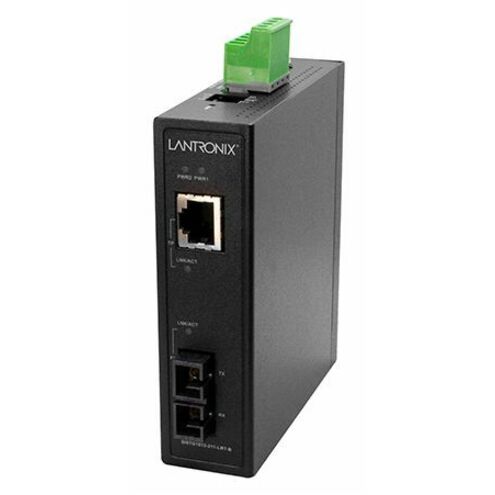

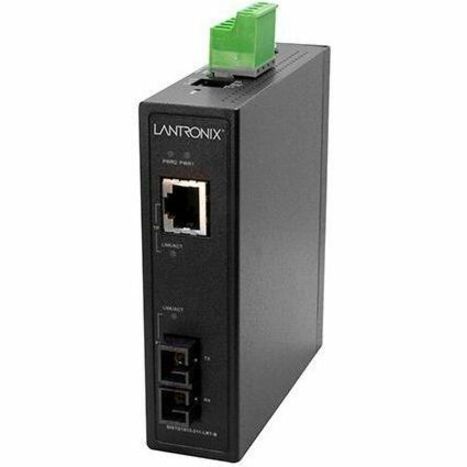

Transition Networks Unmanaged Hardened Gigabit Ethernet Media Converter
1 x Network (RJ-45) - 1 x SC Ports - Multi-mode - 850 nm Fiber - Gigabit Ethernet - 10/100/1000Base-T, 1000Base-SX - 0.55 km - DC - DIN Rail Mountable
- SKU
- SISTG1013-211-LRT-B
- Category
- Transceivers/Media Converters
MSRP$477.00
$346.43
Save 27%Back ordered — ships when restocked.
Genuine Lantronix through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- SISTG1013-211-LRT-B
- Category
- Transceivers/Media Converters
Overview

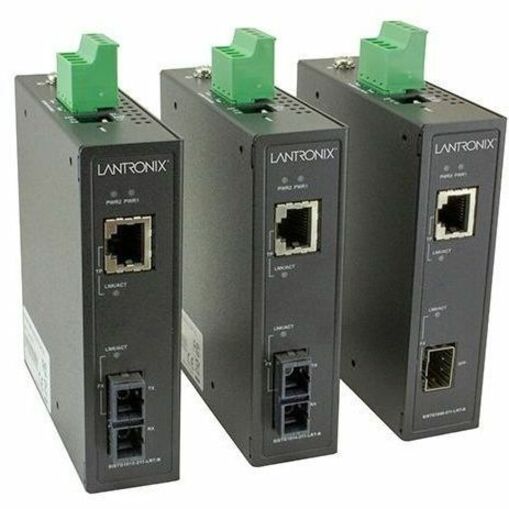

The SISTG-211 Series is a new generation of unmanaged hardened Gigabit Ethernet media converter. The converter can provide multimode or single mode fiber connections with fixed SC connectors for extending the Ethernet service distance over fiber. The converter also has a SFP version that provides the ultimate flexibility to choose the appropriate SFP module to match your communication and distance needs.
It has redundant input power connections to ensure safe reliable operation in temperatures between -40°C and +75°C. Lantronix hardened switches are certified with UL Class 1 Division 2 to operate reliably in hazardous locations such as Oil & Gas, manufacturing, and the chemical industry.
Highlights
- Auto-Negotiation
- Auto-MDI/MDIX
- Link Pass Through
- Extended operating temperature (-40°C to 75°C)
- Dual, Redundant, 12-48 VDC Power Inputs
- Reverse Polarity Power Input Protection
- Overload Current Protection
- DIN Rail Mounting Brackets Included
- Class 1, Div 2 Certified
- Jumbo Frame: 9K bytes
Specifications
| Package Contents |
|
|---|---|
| Product Type | Transceiver/Media Converter |
| Manufacturer Part Number | SISTG1013-211-LRT-B |
| Maximum Distance Supported | 0.55 km |
| Power Source | DC |
| Limited Warranty | 5 Year |
| Weight (Approximate) | 15.52 oz |
| Form Factor | DIN Rail Mountable |
| Manufacturer | Lantronix, Inc |
| Product Model | SISTG1013-211-LRT-B |
| Product Name | Unmanaged Hardened Gigabit Ethernet Media Converter |
| Network Technology | 10/100/1000Base-T, 1000Base-SX |
| Power Consumption | 3.40 W |
| Product Series | SISTG-211 |
| Brand Name | Transition Networks |
| Country of Origin | Taiwan |
| Height | 4.3" |
| Width | 1.2" |
| Depth | 3.9" |
| Environmentally Friendly | Yes |
| Ethernet Technology | Gigabit Ethernet |
| Number of Network (RJ-45) Ports | 1 |
| Network (RJ-45) | Yes |
| Number of SC Ports | 1 |
| Media Type Supported | Optical Fiber, Twisted Pair |
| Fiber Mode Supported | Multi-mode |
| Total Number of Ports | 2 |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH), Restriction of Hazardous Substances (RoHS), Waste Electrical and Electronic Equipment Directive (WEEE) |
| Fiber Optic Cable Core/Cladding Specification | 62.5/125 µm, 50/125 µm |
| Fiber Optic Cable Wavelength | 850 nm |
