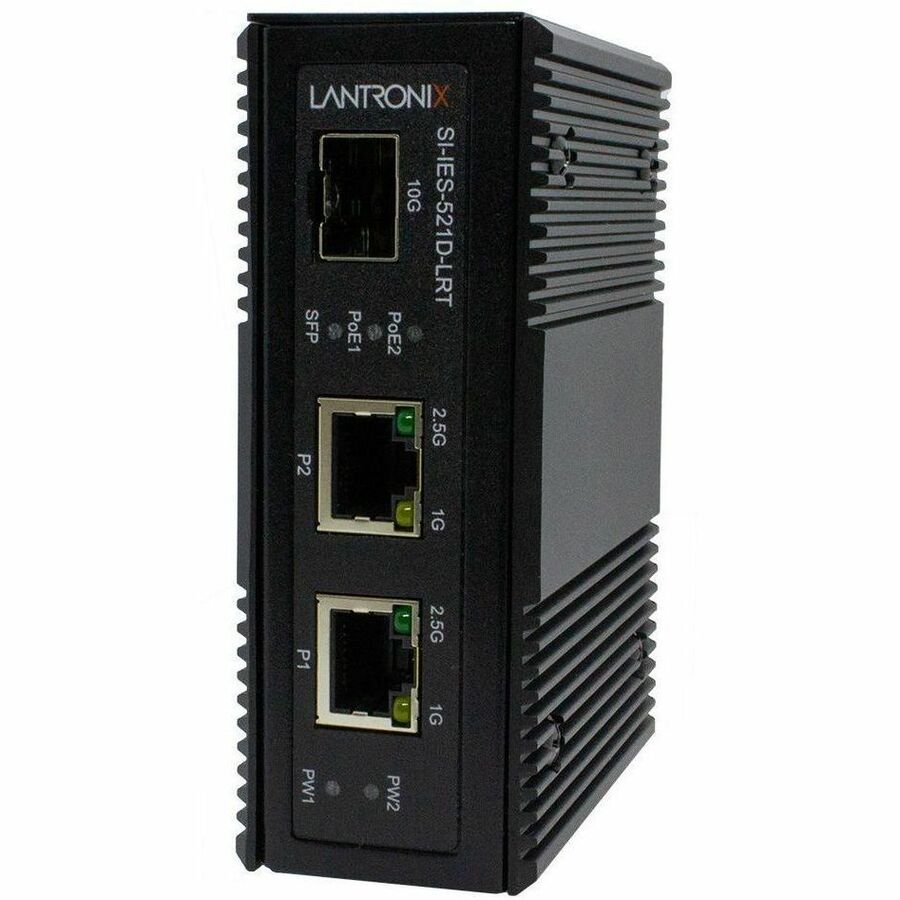

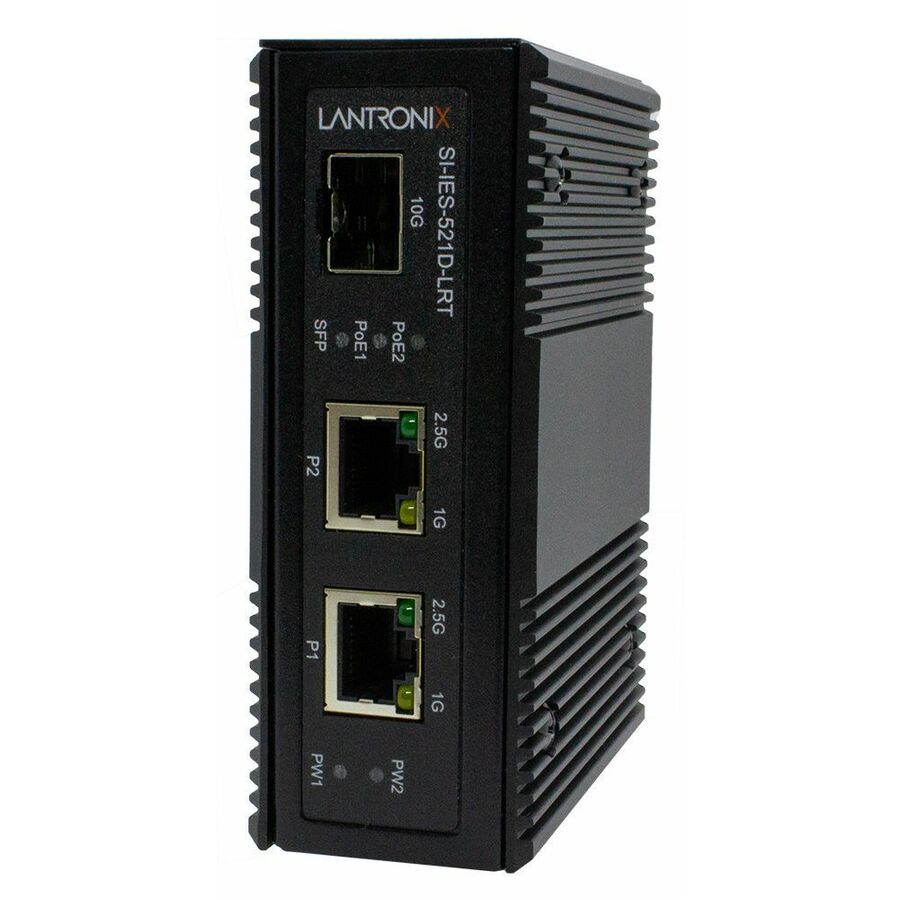

Lantronix SI-IES-5x1D-LRT Transceiver/Media Converter
Lantronix

Lantronix SI-IES-5x1D-LRT Transceiver/Media Converter

1 x Network (RJ-45) - 1x PoE (RJ-45) Ports - Ethernet - 10GBase-X - 1 x Expansion Slots - 1 x SFP+ Slots - DIN Rail Mountable, Wall Mountable - TAA Compliant

SKU
SI-IES-521D-LRT
Category
Transceivers/Media Converters

MSRP$475.00

$344.95

Save 27%
Back ordered

Back ordered — ships when restocked.

Get a quote

Genuine Lantronix through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

SKU
SI-IES-521D-LRT
Category
Transceivers/Media Converters

Overview

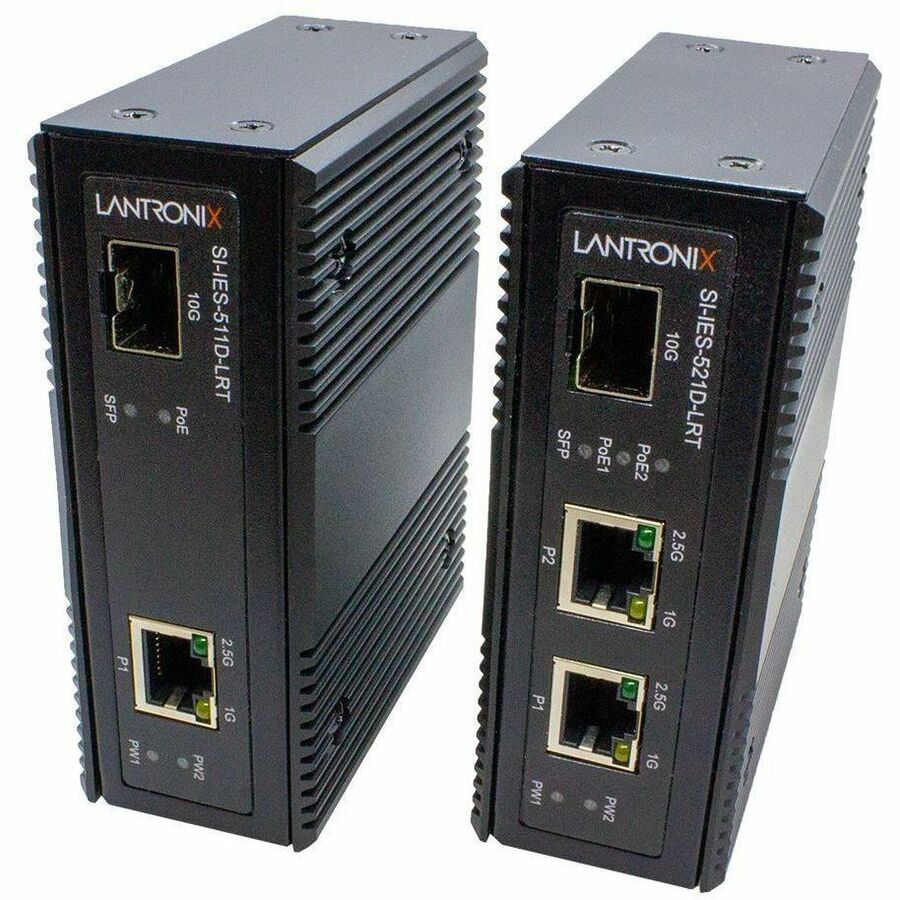

The SI-IES-511D-LRT and SI-IES-521D-LRT are unmanaged hardened multi-Gigabit PoE++ injector/converters that add up to 90 Watts of power from the PoE++ port(s) onto 1 or 2 (depending on model) network segments. The SI-IES-5x1D Series are designed specifically to meet the evolving demands of higher 2.5G bandwidth and higher power (90W) devices such as wireless access points and security cameras in outdoor traffic cabinets, parking garages, or other harsh environments. The 1G/10G speed SFP+ slot provides flexibility by allowing fiber SFP uplink ports to extend the distance of security, transportation and telco networks. The SI-IES-5x1D-LRT Series PoE++ injector/converters are built for rugged environments like outdoor cabinets and certified to ensure safe and reliable operation in temperatures between -40°C to +75°C.

Highlights

  • Supports IEEE 802.3af/at/bt
  • Multi-Gig 10M/100M/1G/2.5G data transmission
  • SFP slot supports 1G/10G SFP+
  • Non-blocking architecture
  • Remote PD Reset
  • Link fault pass through
  • Full/half-duplex flow control
  • Auto-MDI/MDIX
  • Auto-Negotiation
  • Store-and-forward architecture

Specifications

Package Contents
  • SI-IES-5x1D-LRT Transceiver/Media Converter
  • Wall Mount Brackets
Product TypeTransceiver/Media Converter
Manufacturer Part NumberSI-IES-521D-LRT
Limited Warranty5 Year
Weight (Approximate)11.29 oz
Form FactorDIN Rail Mountable, Wall Mountable
ManufacturerLantronix, Inc
Product NameSI-IES-5x1D-LRT Transceiver/Media Converter
Network Technology10GBase-X
Power Consumption220 W
Product SeriesSI-IES-5x1D-LRT
Brand NameLantronix
Height4.1"
Width1.5"
Depth3.2"
Ethernet TechnologyEthernet
Number of Network (RJ-45) Ports1
Network (RJ-45)Yes
Number of SFP+ Slots1
Number of PoE (RJ-45) Ports1
Media Type SupportedTwisted Pair, Optical Fiber
Total Number of Ports2
Total Number of Expansion Slots1
PoE Port TypePD
TAA CompliantYes
