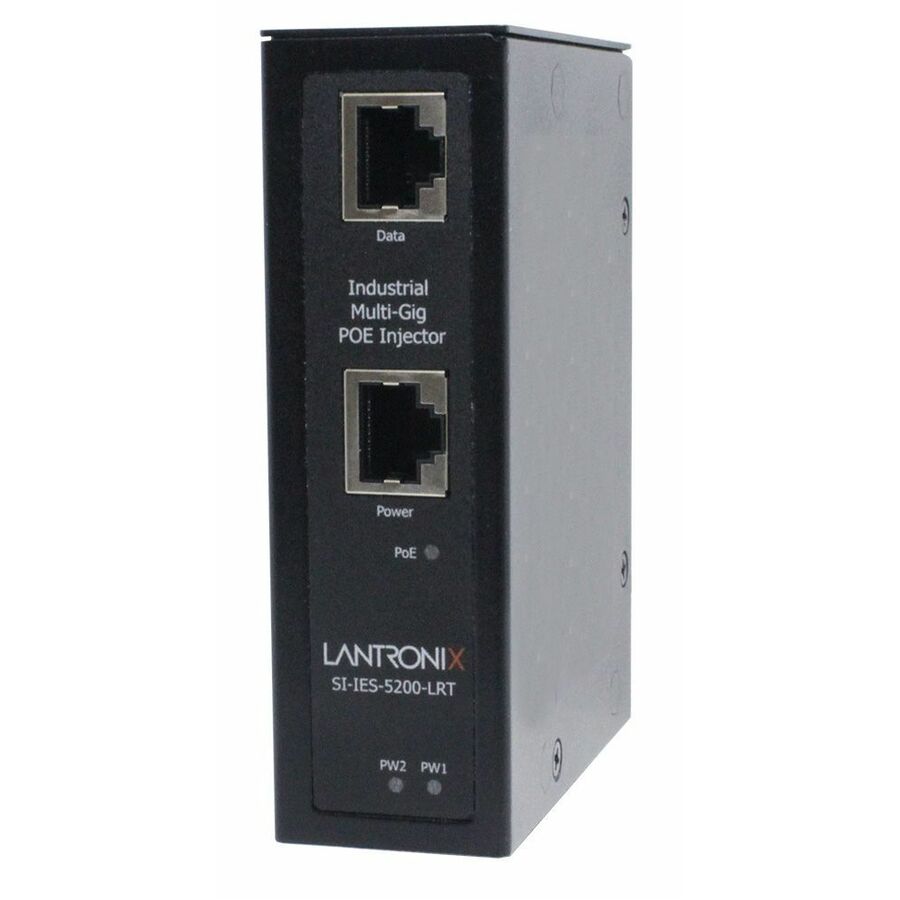

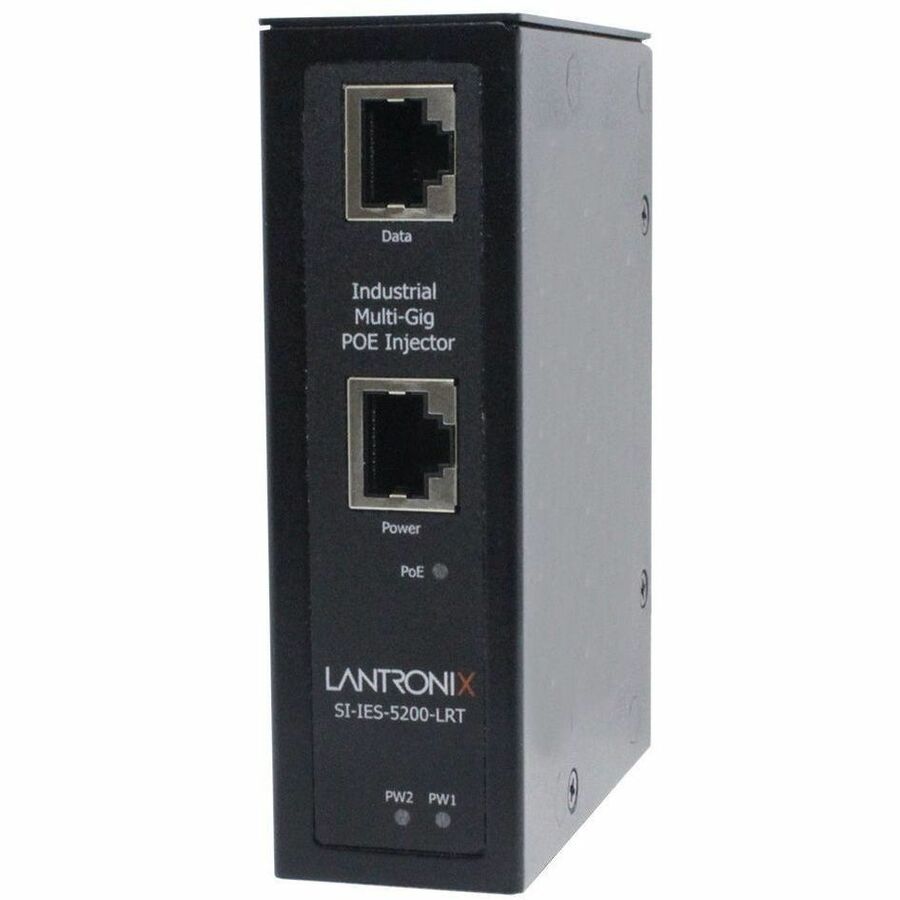

Lantronix Transceiver/Media Converter
Network (RJ-45) - 1x PoE (RJ-45) Ports - 1x PoE+ (RJ-45) Ports - Ethernet - DIN Rail Mountable, Wall Mountable - TAA Compliant
- SKU
- SI-IES-5200-LRT
- Category
- Transceivers/Media Converters
MSRP$175.00
$126.93
Save 27%Back ordered — ships when restocked.
Genuine Lantronix through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- SI-IES-5200-LRT
- Category
- Transceivers/Media Converters
Overview
The SI-IES-5200-LRT is an unmanaged hardened multi-Gigabit PoE++ injector that adds up to 90 Watts of power on a network segment. This injector is designed specifically to meet the demand of higher bandwidth (up to 10G), higher power (up to 90W) devices such as wireless access points, multi-lens surveillance cameras, license plate readers and other IP networked devices in locations where a power source is not readily available. It provides a high level of immunity against electromagnetic interference and heavy electrical surges typical of environments like manufacturing floors or curb-side traffic control cabinets. The SI-IES-5200-LRT is certified to ensure safe and reliable operation in temperatures between -40°C to +75°C.
Highlights
- Supports IEEE 802.3af/at/bt
- Multi-Gig 10M/100M/1G/2.5G/5G/10G data transmission
- Compact size
- IP31 housing
- Extended operating temperature (-40°C to +75°C)
Specifications
| Product Type | Transceiver/Media Converter |
|---|---|
| Manufacturer Part Number | SI-IES-5200-LRT |
| Packaged Quantity | 1 |
| Limited Warranty | 5 Year |
| Weight (Approximate) | 6.35 oz |
| Form Factor | DIN Rail Mountable, Wall Mountable |
| Manufacturer | Lantronix, Inc |
| Product Name | Transceiver/Media Converter |
| Power Consumption | 101.40 W |
| Brand Name | Lantronix |
| Height | 4.1" |
| Width | 1.3" |
| Depth | 3.2" |
| Ethernet Technology | Ethernet |
| Network (RJ-45) | Yes |
| Number of PoE (RJ-45) Ports | 1 |
| Number of PoE+ (RJ-45) Ports | 1 |
| Media Type Supported | Twisted Pair |
| Total Number of Ports | 2 |
| PoE Port Type | PD |
| TAA Compliant | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
