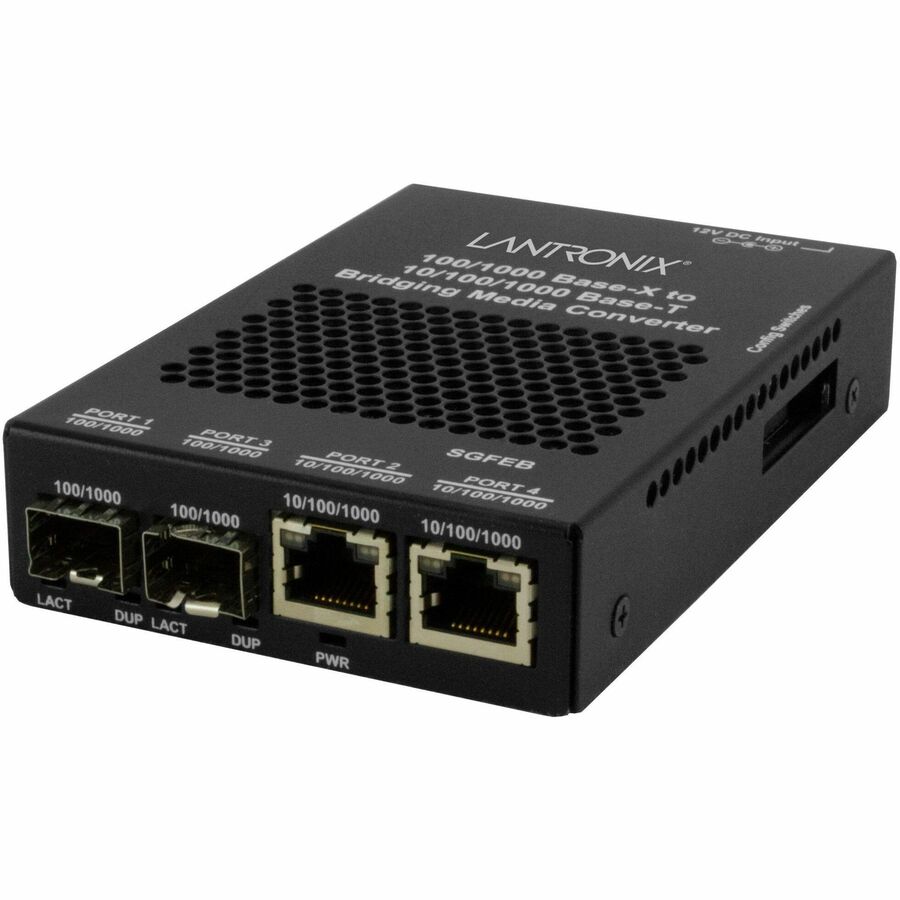

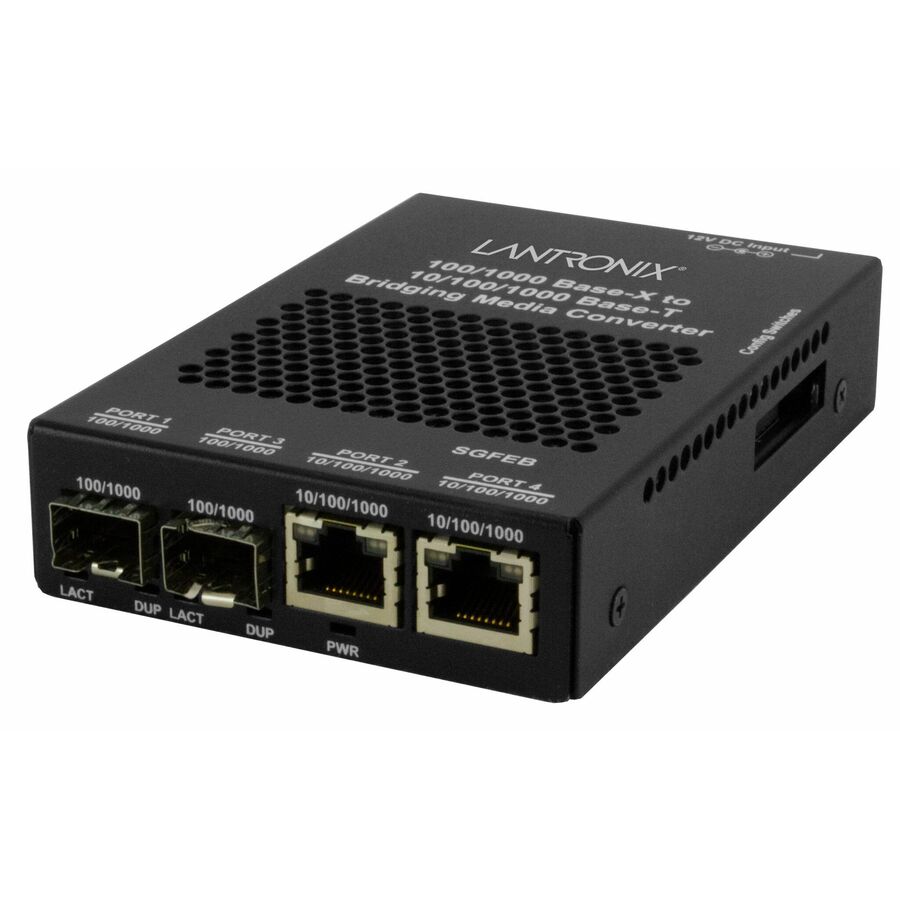

Lantronix SGFEB1040-330 Transceiver/Media Converter
2 x Network (RJ-45) - Gigabit Ethernet - 10/100/1000Base-T, 100/1000Base-X - 1000 Mbit/s - 0.10 km - 2 x Expansion Slots - SFP - 2 x SFP Slots - AC Adapter - Wall Mountable, Rail-mountable, Rack-mountable, Standalone - TAA Compliant
- SKU
- SGFEB1040-330-NA
- Category
- Transceivers/Media Converters
MSRP$567.00
$411.87
Save 27%Back ordered — ships when restocked.
Genuine Lantronix through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- SGFEB1040-330-NA
- Category
- Transceivers/Media Converters
Overview
Stand-alone Gigabit Ethernet Media and Rate Converter
10/100/1000Base-T to 1000Base-SX/LX
The SGFEB Series is a stand-alone media converter that provides an interface between 10/100/1000Base-T ports and 1000Base-SX/LX ports, allowing users to integrate fiber optic cabling into 10/100/1000 copper environments. Operating at Layer 2, the data link layer, this converter not only converts copper to fiber, it also provides rate conversion allowing legacy 10/100 copper devices to connect to 1000Base-SX/LX fiber.
Highlights
- Auto Negotiation
- Auto-MDI/MDIX
- Link Pass Through
- Far End Fault (FEF)
- Remote Fault Detect
- Provides rate conversion while also increasing transmission distances
- Supports multimode or single mode fiber
- Versions available with fixed SC or LC optics, as well as modular SFP optics
- Long haul transmission distances are supported with a variety of SFP modules
- SFP ports support dual speeds: 100/1000/SGMII
Specifications
| Package Contents |
|
|---|---|
| Product Type | Transceiver/Media Converter |
| Manufacturer Part Number | SGFEB1040-330-NA |
| Maximum Distance Supported | 0.10 km |
| Power Source | AC Adapter |
| Limited Warranty | Lifetime |
| Weight (Approximate) | 2 lb |
| Form Factor | Wall Mountable, Rail-mountable, Rack-mountable, Standalone |
| Manufacturer | Lantronix, Inc |
| Product Model | SGFEB1040-330 |
| Product Name | SGFEB1040-330 Transceiver/Media Converter |
| Network Technology | 10/100/1000Base-T, 100/1000Base-X |
| Power Consumption | 2.20 W |
| Product Series | SGFEB |
| Brand Name | Lantronix |
| Expansion Slot Type | SFP |
| Height | 1" |
| Width | 3.3" |
| Depth | 4.8" |
| Environmentally Friendly | Yes |
| Maximum Data Transfer Rate | 1000 Mbit/s |
| Ethernet Technology | Gigabit Ethernet |
| Number of Network (RJ-45) Ports | 2 |
| Network (RJ-45) | Yes |
| Number of SFP Slots | 2 |
| Media Type Supported | Twisted Pair, Optical Fiber |
| Total Number of Ports | 2 |
| Total Number of Expansion Slots | 2 |
| TAA Compliant | Yes |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH), Restriction of Hazardous Substances (RoHS), Waste Electrical and Electronic Equipment Directive (WEEE) |
