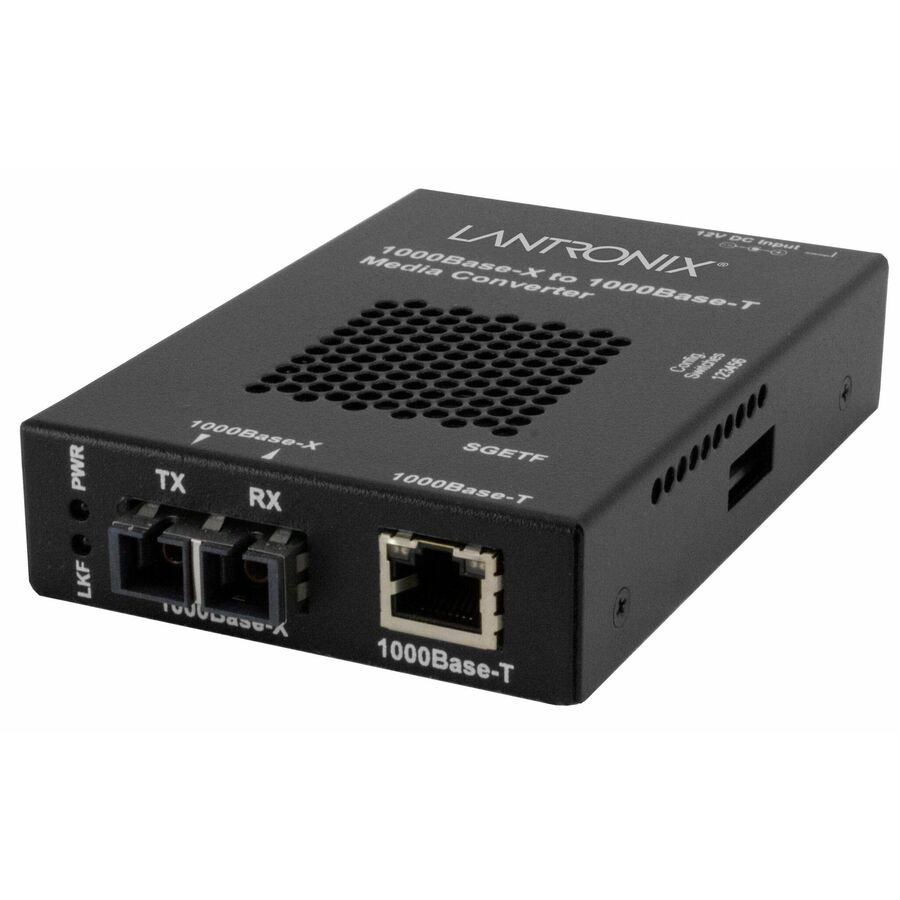

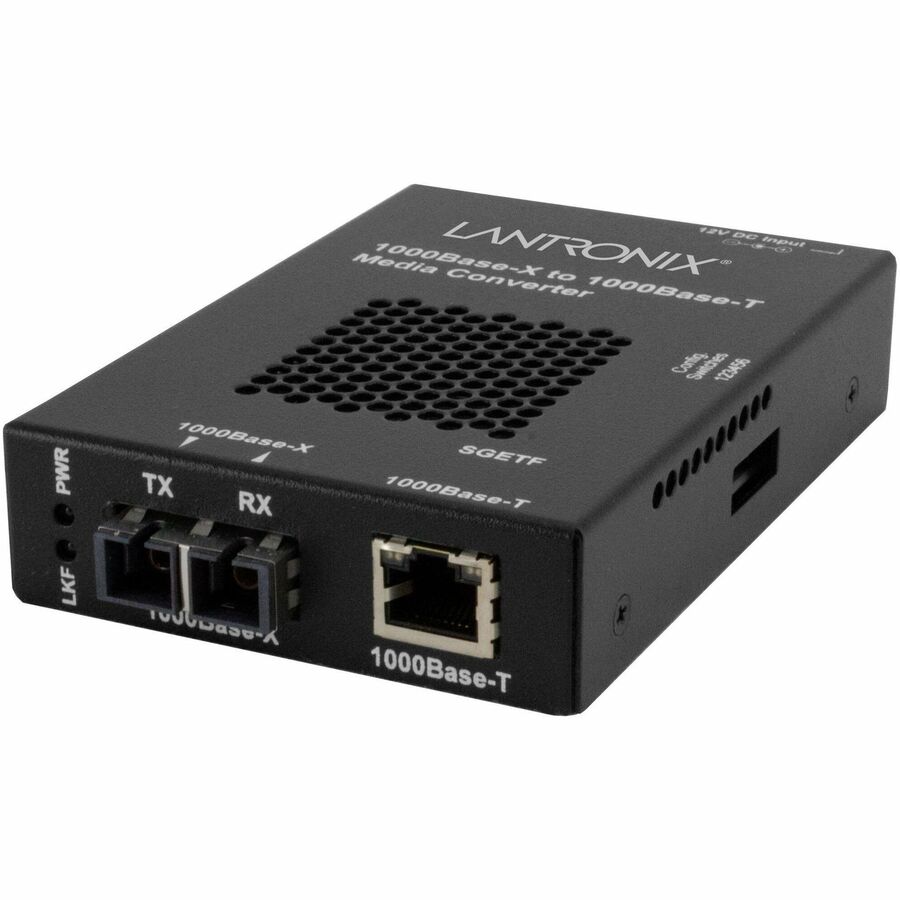

Lantronix SGETF1013-110 Transceiver/Media Converter
1 x Network (RJ-45) - 1 x SC Ports - Multi-mode - 850 nm Fiber - Gigabit Ethernet - 1000Base-SX, 1000Base-T - 1000 Mbit/s - 0.55 km - AC/DC - Standalone, Rack-mountable, Wall Mountable, DIN Rail Mountable, Shelf Mount - TAA Compliant
- SKU
- SGETF1013-110-SA
- Category
- Transceivers/Media Converters
MSRP$479.00
$347.82
Save 27%Back ordered — ships when restocked.
Genuine Lantronix through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- SGETF1013-110-SA
- Category
- Transceivers/Media Converters
Overview
Stand-alone Gigabit Ethernet Media Converter
1000Base-T to 1000Base-SX/LX
The SGETF Series is a stand-alone media converter that provides an interface between 1000Base-T ports and 1000Base-SX/LX ports, allowing users to integrate fiber optic cabling into 1000Base-T copper environments. Operating at Layer 1, the physical layer, data is passed through the converter at line speed, making it ideal for applications where low latency is essential.
Highlights
- Auto-MDI/MDIX
- Copper & Fiber Auto-Negotiation
- Transparent Link Pass Through
- Automatic Link Restoration
- Pause
- Remote Fault Detect
Specifications
| Package Contents |
|
|---|---|
| Product Type | Transceiver/Media Converter |
| Manufacturer Part Number | SGETF1013-110-SA |
| Maximum Distance Supported | 0.55 km |
| Power Source | AC/DC |
| Limited Warranty | Lifetime |
| Weight (Approximate) | 2 lb |
| Form Factor | Standalone, Rack-mountable, Wall Mountable, DIN Rail Mountable, Shelf Mount |
| Manufacturer | Lantronix, Inc |
| Product Model | SGETF1013-110 |
| Product Name | SGETF1013-110 Transceiver/Media Converter |
| Network Technology | 1000Base-SX, 1000Base-T |
| Power Consumption | 5.40 W |
| Product Series | SGETF |
| Brand Name | Lantronix |
| Height | 1" |
| Width | 3.3" |
| Depth | 4.8" |
| Environmentally Friendly | Yes |
| Maximum Data Transfer Rate | 1000 Mbit/s |
| Ethernet Technology | Gigabit Ethernet |
| Number of Network (RJ-45) Ports | 1 |
| Network (RJ-45) | Yes |
| Number of SC Ports | 1 |
| Media Type Supported | Optical Fiber, Twisted Pair |
| Fiber Mode Supported | Multi-mode |
| Total Number of Ports | 2 |
| TAA Compliant | Yes |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH), Restriction of Hazardous Substances (RoHS), Waste Electrical and Electronic Equipment Directive (WEEE) |
| Fiber Optic Cable Core/Cladding Specification | 62.5/125 µm, 50/125 µm |
| Fiber Optic Cable Wavelength | 850 nm |
