Lantronix

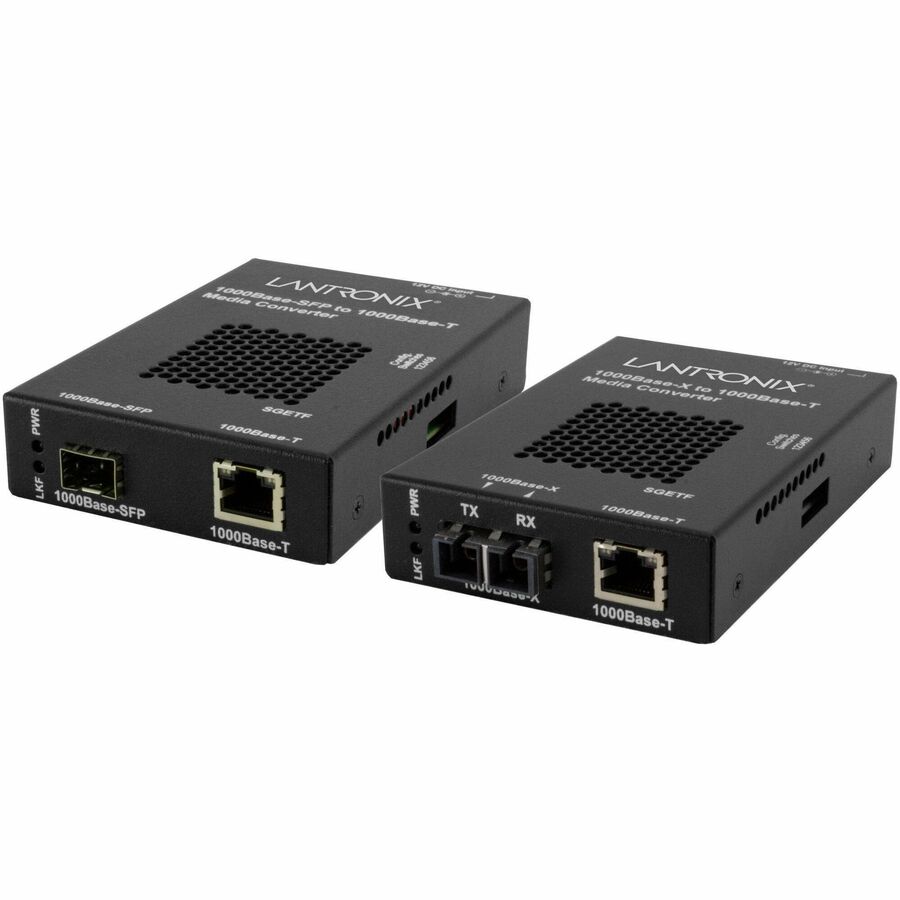

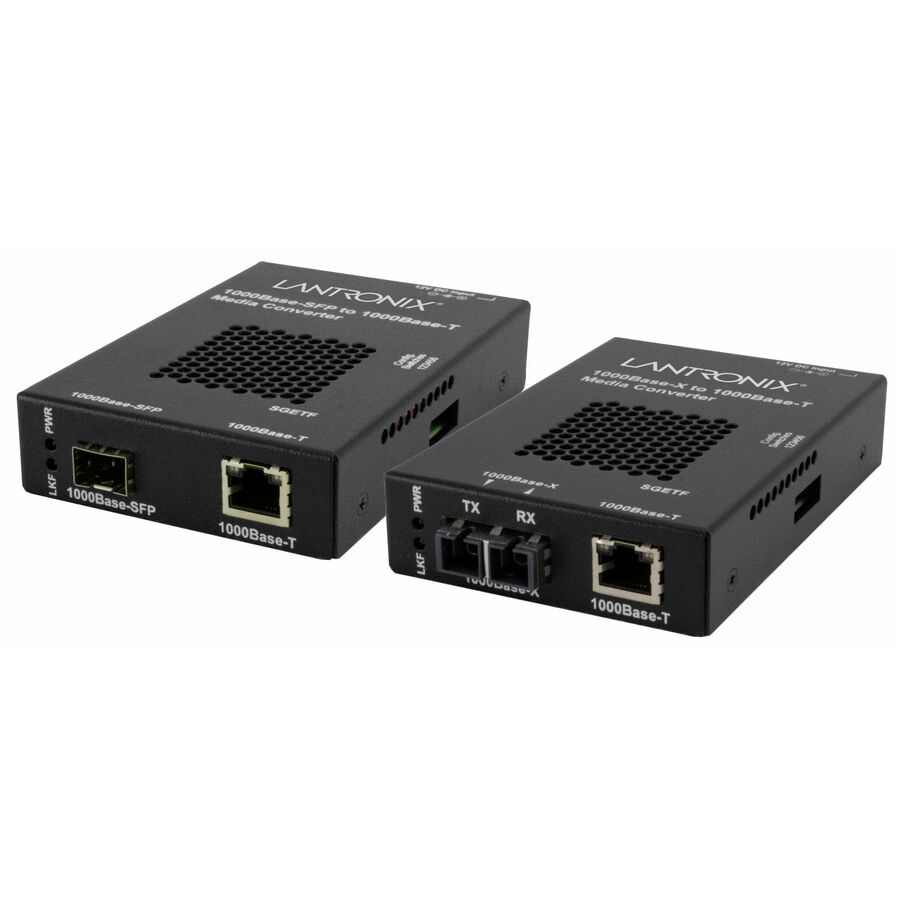

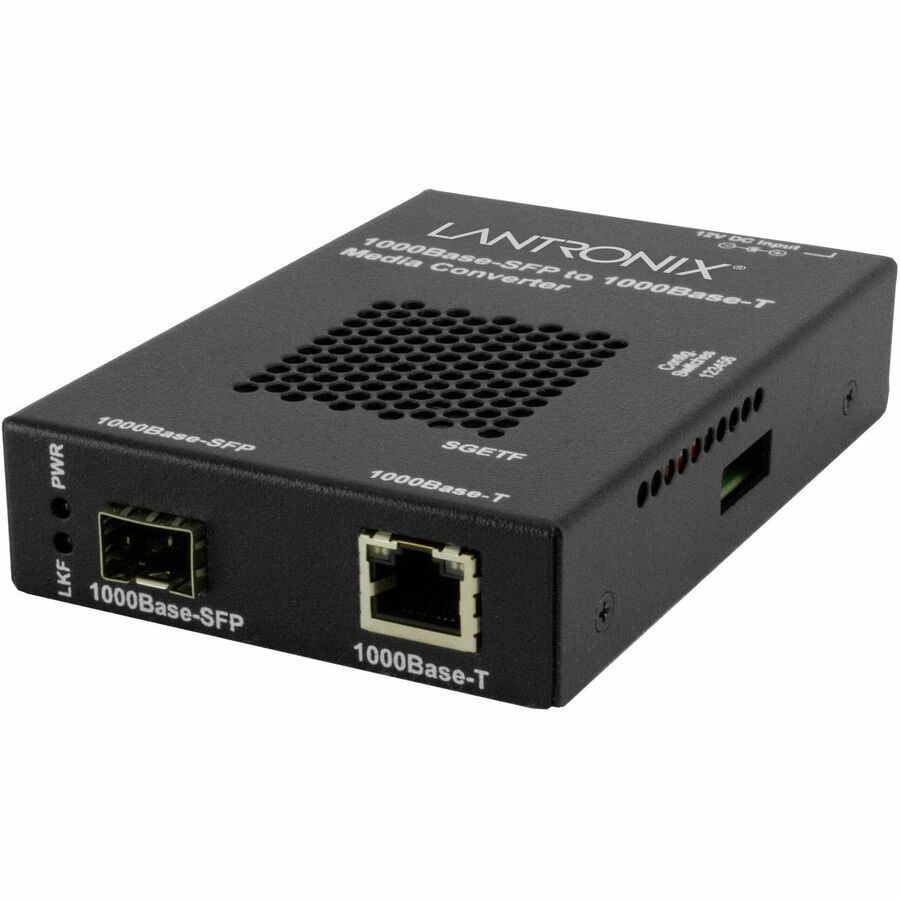

Stand-alone Gigabit Ethernet Media Converter 1000Base-T to 1000Base-SX/LX
1000BASE-T TO 1000BASE-SX/LX, MM, SC, 220M- EU
- SKU
- SGETF1013-110-EU
- Category
- Transceivers/Media Converters
MSRP$479.00
$347.82
Save 27%Back ordered
Back ordered — ships when restocked.
Genuine Lantronix through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- SGETF1013-110-EU
- Category
- Transceivers/Media Converters
Overview
The SGETF Series is a stand-alone media converter that provides an interface between 1000Base-T ports and 1000Base-SX/LX ports, allowing users to integrate fiber optic cabling into 1000Base-T copper environments. Operating at Layer 1, the physical layer, data is passed through the converter at line speed, making it ideal for applications where low latency is essential. NDAA Compliant, TAA Compliant
Highlights
- Auto-MDI/MDIX
- Copper & Fiber Auto-Negotiation
- Transparent Link Pass Through
- Automatic Link Restoration
- Pause
- Remote Fault Detect
Specifications
| Package Contents |
|
|---|---|
| Product Type | Transceiver/Media Converter |
| Manufacturer Part Number | SGETF1013-110-EU |
| Maximum Distance Supported | 0.55 km |
| Power Source | Power Supply |
| Limited Warranty | Lifetime |
| Weight (Approximate) | 2 lb |
| Form Factor | Wall Mountable, Standalone, Rail-mountable, Rack-mountable |
| Manufacturer | Lantronix, Inc |
| Product Name | Stand-alone Gigabit Ethernet Media Converter 1000Base-T to 1000Base-SX/LX |
| Network Technology | 10/100/1000Base-T, 1000Base-SX, 1000Base-LX |
| Power Consumption | 5.40 W |
| Product Series | SGETF |
| Brand Name | Lantronix |
| Height | 1" |
| Width | 3.3" |
| Depth | 4.8" |
| Ethernet Technology | Gigabit Ethernet |
| Network (RJ-45) | Yes |
| Number of SC Ports | 1 |
| Media Type Supported | Twisted Pair, Optical Fiber |
| Fiber Mode Supported | Multi-mode |
| Total Number of Ports | 2 |
| TAA Compliant | Yes |
| Fiber Optic Cable Core/Cladding Specification | 50/125 µm, 62.5/125 µm |
| Fiber Optic Cable Wavelength | 850 nm |
