Lantronix SBFTF1040-105 Transceiver/Media Converter
1 x Network (RJ-45) - Fast Ethernet - 10/100Base-TX, 100Base-X - 100 Mbit/s - 0.10 km - 1 x Expansion Slots - SFP - 1 x SFP Slots - AC/DC - Wall Mountable, DIN Rail Mountable, Rack-mountable, Standalone, Shelf Mount - TAA Compliant
- SKU
- SBFTF1040-105-NA
- Category
- Transceivers/Media Converters
MSRP$246.00
$178.95
Save 27%Back ordered — ships when restocked.
Genuine Lantronix through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- SBFTF1040-105-NA
- Category
- Transceivers/Media Converters
Overview

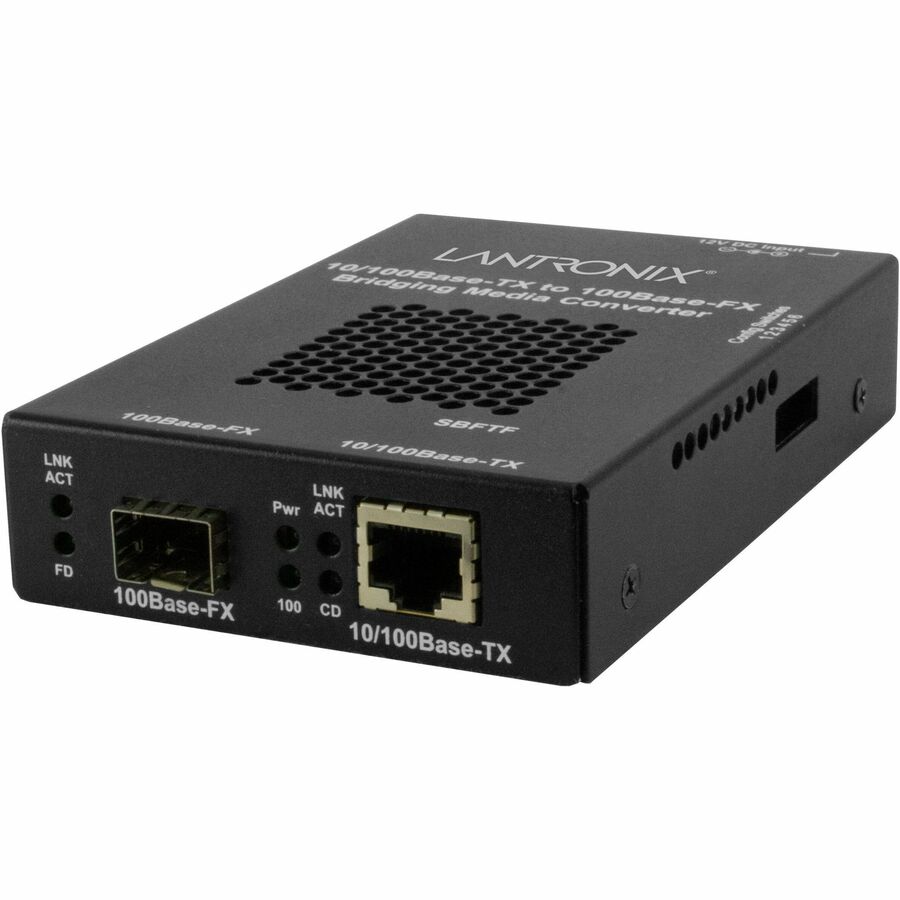

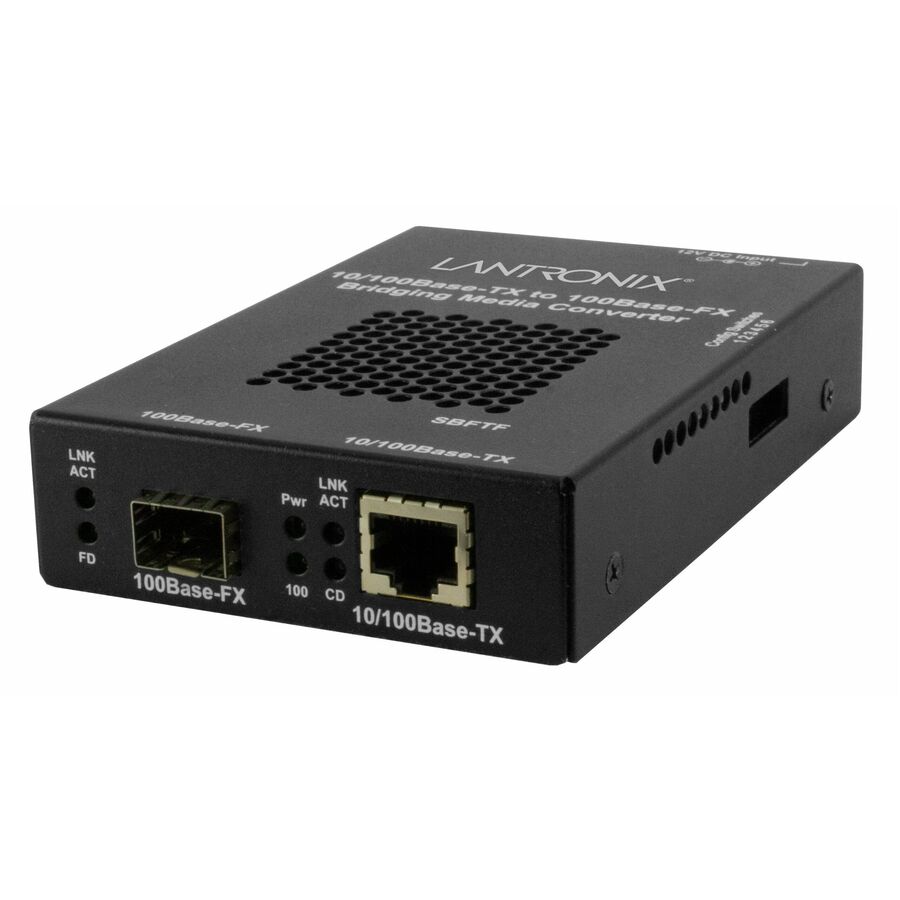

Stand-alone Fast Ethernet Media and Rate Converter
10/100Base-TX to 100Base-FX
The SBFTF Series is a that provides an interface between 10/100Base-TX ports and 100Base-FX ports, allowing users to integrate fiber optic cabling into 10/100 copper environments. Operating at Layer 2, the data link layer, this converter not only converts copper to fiber, it also provides rate conversion allowing legacy 10Base-T copper devices to connect to 100Base-FX fiber.
Highlights
- Auto-Negotiation
- Auto-MDI/MDIX
- Link Pass Through
- Far-End-Fault (FEF) Detection
- Automatic Link Restoration Extend network distance up to 120km
- Bridging devices will provide conversion and integration solutions for half and full-duplex environments
- 10 Mbps or 100 Mbps on TP port
- Half or full-duplex on all ports including fiber
Specifications
| Package Contents |
|
|---|---|
| Product Type | Transceiver/Media Converter |
| Manufacturer Part Number | SBFTF1040-105-NA |
| Maximum Distance Supported | 0.10 km |
| Power Source | AC/DC |
| Limited Warranty | Lifetime |
| Weight (Approximate) | 2 lb |
| Form Factor | Wall Mountable, DIN Rail Mountable, Rack-mountable, Standalone, Shelf Mount |
| Manufacturer | Lantronix, Inc |
| Product Model | SBFTF1040-105 |
| Product Name | SBFTF1040-105 Transceiver/Media Converter |
| Network Technology | 10/100Base-TX, 100Base-X |
| Product Series | SBFTF |
| Brand Name | Lantronix |
| Expansion Slot Type | SFP |
| Height | 1" |
| Width | 3.3" |
| Depth | 4.8" |
| Environmentally Friendly | Yes |
| Maximum Data Transfer Rate | 100 Mbit/s |
| Ethernet Technology | Fast Ethernet |
| Number of Network (RJ-45) Ports | 1 |
| Network (RJ-45) | Yes |
| Number of SFP Slots | 1 |
| Media Type Supported | Twisted Pair, Optical Fiber |
| Total Number of Ports | 1 |
| Total Number of Expansion Slots | 1 |
| TAA Compliant | Yes |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH), Restriction of Hazardous Substances (RoHS), Waste Electrical and Electronic Equipment Directive (WEEE) |
