Lantronix SBFTF1039-105 Transceiver/Media Converter
Lantronix

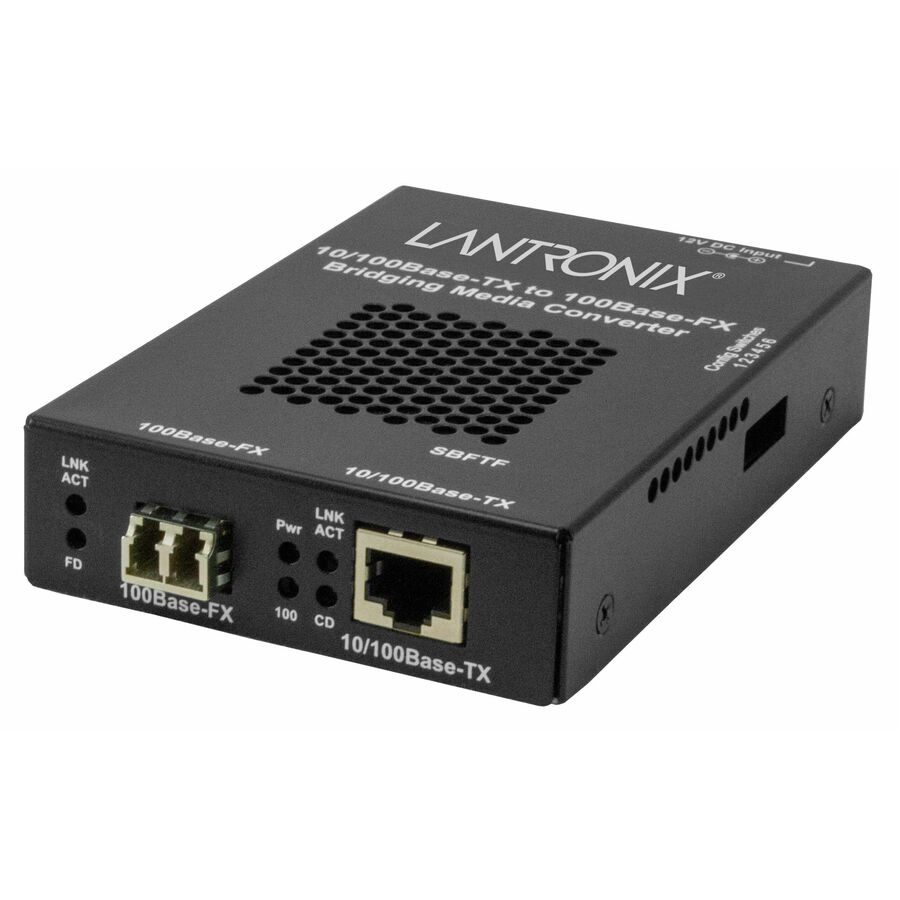

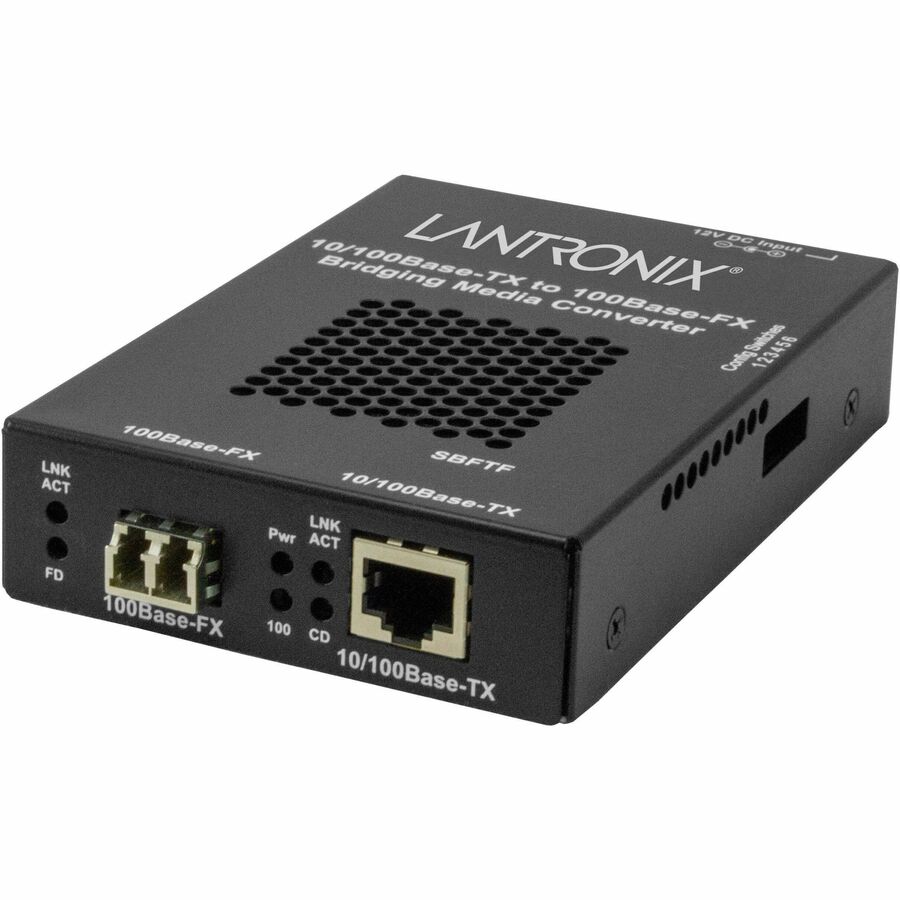

Lantronix SBFTF1039-105 Transceiver/Media Converter

1 x Network (RJ-45) - 1 x LC Ports - Multi-mode - 1300 nm Fiber - Fast Ethernet - 100Base-FX, 10/100Base-TX - 100 Mbit/s - 2 km - AC/DC - Wall Mountable, DIN Rail Mountable, Rack-mountable, Standalone, Shelf Mount - TAA Compliant

SKU
SBFTF1039-105-NA
Category
Transceivers/Media Converters

MSRP$336.00

$244.24

Save 27%
Back ordered

Back ordered — ships when restocked.

Get a quote

Genuine Lantronix through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

SKU
SBFTF1039-105-NA
Category
Transceivers/Media Converters

Overview

Stand-alone Fast Ethernet Media and Rate Converter

10/100Base-TX to 100Base-FX

The SBFTF Series is a that provides an interface between 10/100Base-TX ports and 100Base-FX ports, allowing users to integrate fiber optic cabling into 10/100 copper environments. Operating at Layer 2, the data link layer, this converter not only converts copper to fiber, it also provides rate conversion allowing legacy 10Base-T copper devices to connect to 100Base-FX fiber.

Highlights

  • Auto-Negotiation
  • Auto-MDI/MDIX
  • Link Pass Through
  • Far-End-Fault (FEF) Detection
  • Automatic Link Restoration Extend network distance up to 120km
  • Bridging devices will provide conversion and integration solutions for half and full-duplex environments
  • 10 Mbps or 100 Mbps on TP port
  • Half or full-duplex on all ports including fiber

Specifications

Package Contents
  • SBFTF1039-105 Transceiver/Media Converter
  • Power Supply - North America
Product TypeTransceiver/Media Converter
Manufacturer Part NumberSBFTF1039-105-NA
Maximum Distance Supported2 km
Power SourceAC/DC
Limited WarrantyLifetime
Weight (Approximate)2 lb
Form FactorWall Mountable, DIN Rail Mountable, Rack-mountable, Standalone, Shelf Mount
ManufacturerLantronix, Inc
Product ModelSBFTF1039-105
Product NameSBFTF1039-105 Transceiver/Media Converter
Network Technology100Base-FX, 10/100Base-TX
Product SeriesSBFTF
Brand NameLantronix
Height1"
Width3.3"
Depth4.8"
Environmentally FriendlyYes
Maximum Data Transfer Rate100 Mbit/s
Ethernet TechnologyFast Ethernet
Number of Network (RJ-45) Ports1
Network (RJ-45)Yes
Number of LC Ports1
Media Type SupportedOptical Fiber, Twisted Pair
Fiber Mode SupportedMulti-mode
Total Number of Ports2
TAA CompliantYes
Environmental ComplianceRegistration, Evaluation, Authorization and Restriction of Chemicals (REACH), Restriction of Hazardous Substances (RoHS), Waste Electrical and Electronic Equipment Directive (WEEE)
Fiber Optic Cable Wavelength1300 nm
