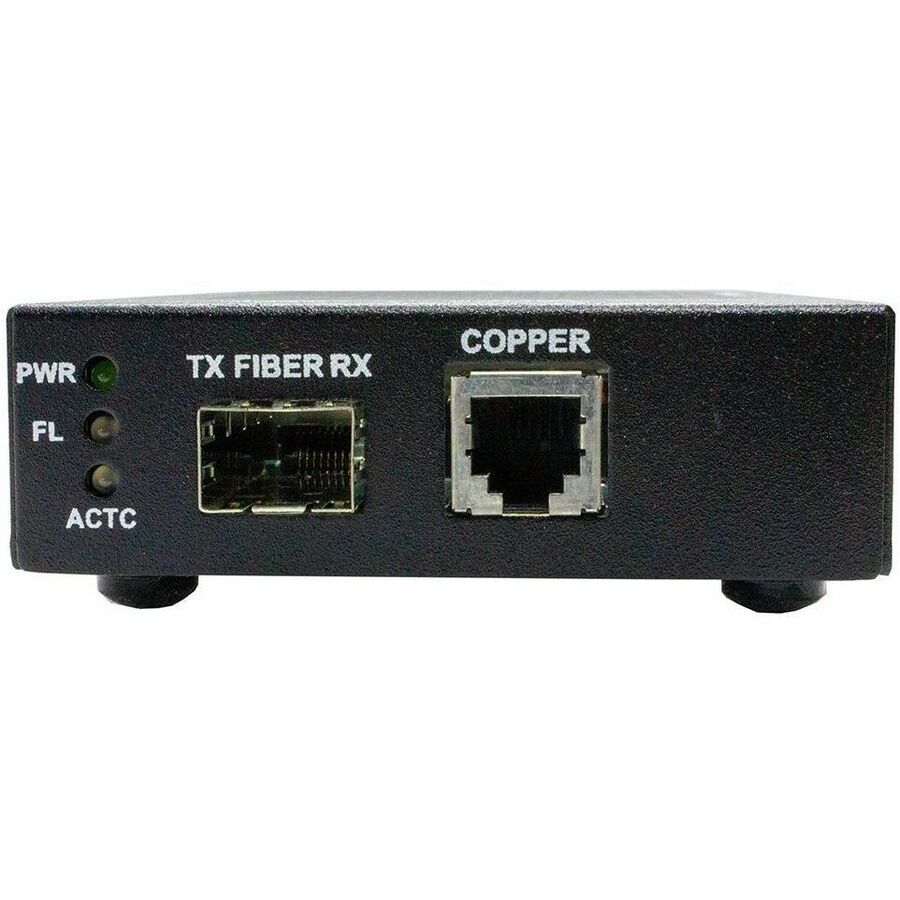

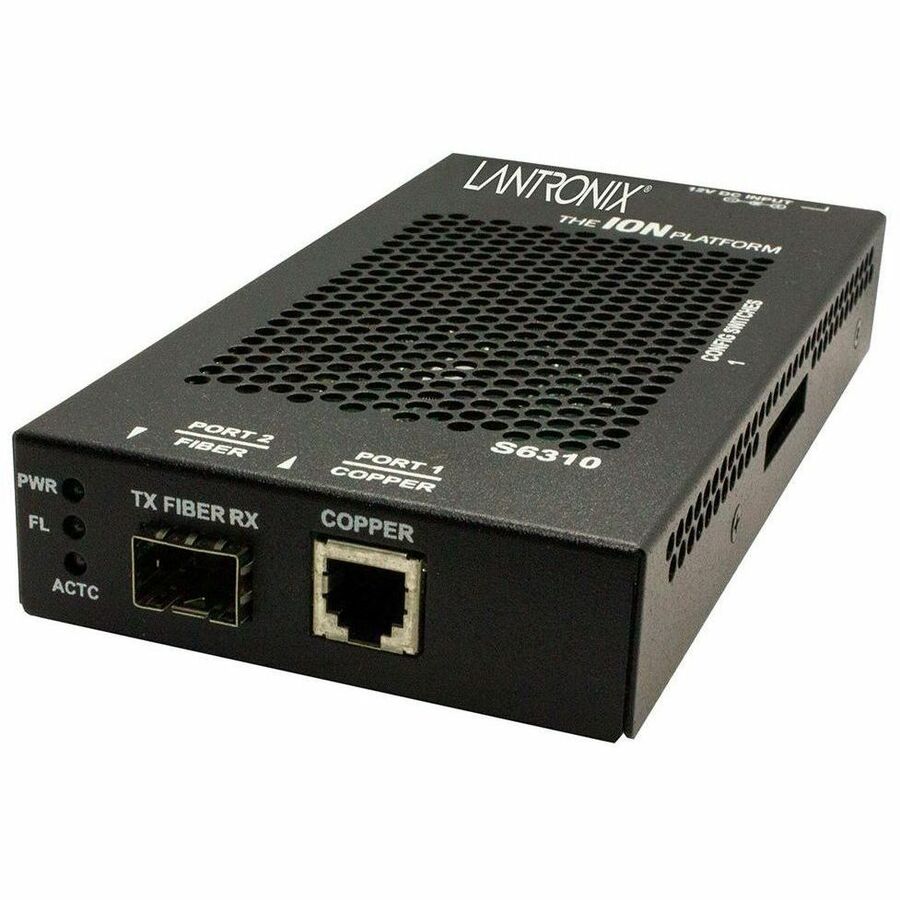

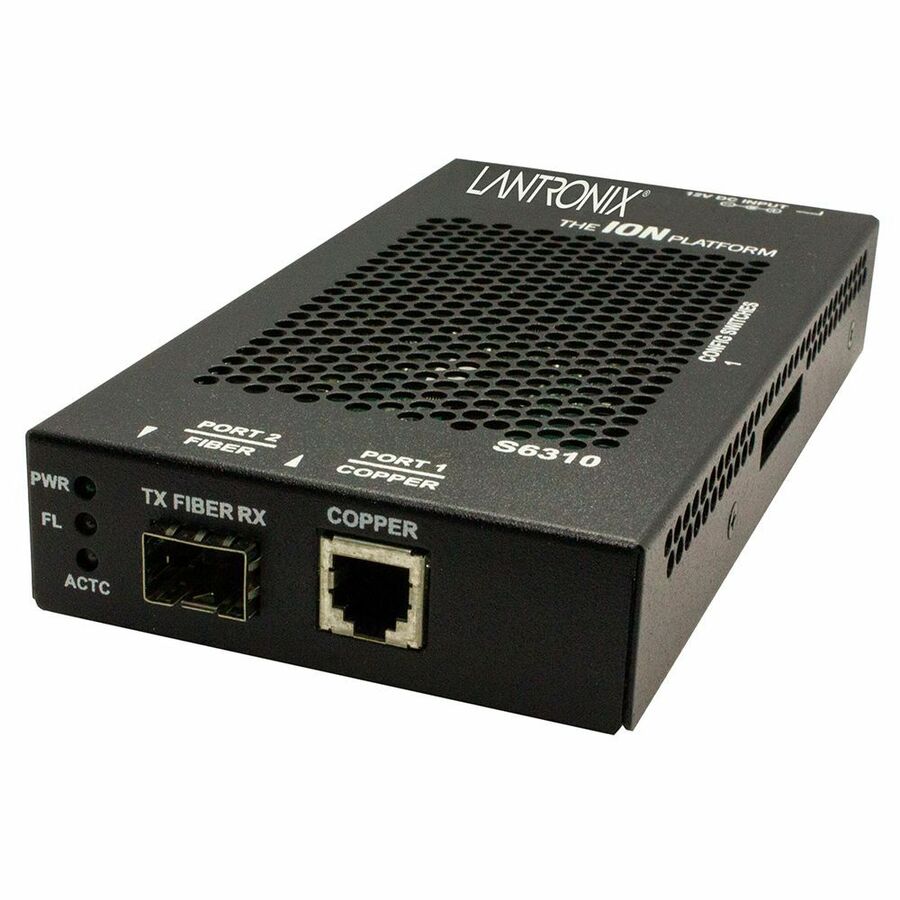

Lantronix S6310-3340 Transceiver/Media Converter
5 km - 1 x Expansion Slots - SFP - 1 x SFP Slots - AC/DC - Standalone, Rack-mountable - TAA Compliant
- SKU
- S6310-3340-NA
- Category
- Transceivers/Media Converters
MSRP$695.00
$505.01
Save 27%Back ordered — ships when restocked.
Genuine Lantronix through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- S6310-3340-NA
- Category
- Transceivers/Media Converters
Overview
The S6310-3340 is a stand-alone media converter that provides an interface between a twisted pair RJ-11 port and a fiber port, allowing users to connect central-office voice grade signals to distant Plain Old Telephone equipment (POTS) utilizing standard telephone signaling. Two units are required to implement an end to end system. The first unit connects to a telephone line or PBX and is configured to act as a telephone (FXO Mode) and has the ability to detect ringing voltages. The second unit is the reciprocal unit and is configured to have the ability to act as a Central Office and connects to a telephone device (FXS Mode).
Together, the modules allow legacy analog phone lines to be extended over fiber for both permanent installations as well as temporary job-site installations.
Highlights
- Audio transmission of voice grade signals
- Supports ringing at distant end
- Supports Caller ID
- Configurable worldwide country formats
- Must be deployed in pairs: ION chassis card and stand-alone unit | ION chassis card and ION chassis card | Stand-alone unit and stand-alone unit
- Single product configurable to either FXO mode or FXS mode
- Automatic Ring Down supported when both converters are configured to FXS Mode
- SFP based product: Uses Gigabit Ethernet SFP Modules | Lantronix offers a wide variety of SFP modules to support multimode or singlemode fiber, as well as dual or single strand fiber installations
- Supports in-band management of remote stand-alone unit when linked to a POTS slide-in-card installed in a managed ION chassis
- Electrical interface is provided through an RJ-11 female connector
Specifications
| Package Contents |
|
|---|---|
| Product Type | Transceiver/Media Converter |
| Manufacturer Part Number | S6310-3340-NA |
| Maximum Distance Supported | 5 km |
| Power Source | AC/DC |
| Limited Warranty | Lifetime |
| Weight (Approximate) | 2 lb |
| Form Factor | Standalone, Rack-mountable |
| Manufacturer | Lantronix, Inc |
| Product Model | S6310-3340 |
| Product Name | S6310-3340 Transceiver/Media Converter |
| Power Consumption | 2 W |
| Product Line | ION |
| Brand Name | Lantronix |
| Expansion Slot Type | SFP |
| Height | 1" |
| Width | 3.3" |
| Depth | 6.5" |
| Environmentally Friendly | Yes |
| Number of SFP Slots | 1 |
| Media Type Supported | Optical Fiber, Twisted Pair |
| Total Number of Ports | 1 |
| Total Number of Expansion Slots | 1 |
| TAA Compliant | Yes |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH), Restriction of Hazardous Substances (RoHS), Waste Electrical and Electronic Equipment Directive (WEEE) |
