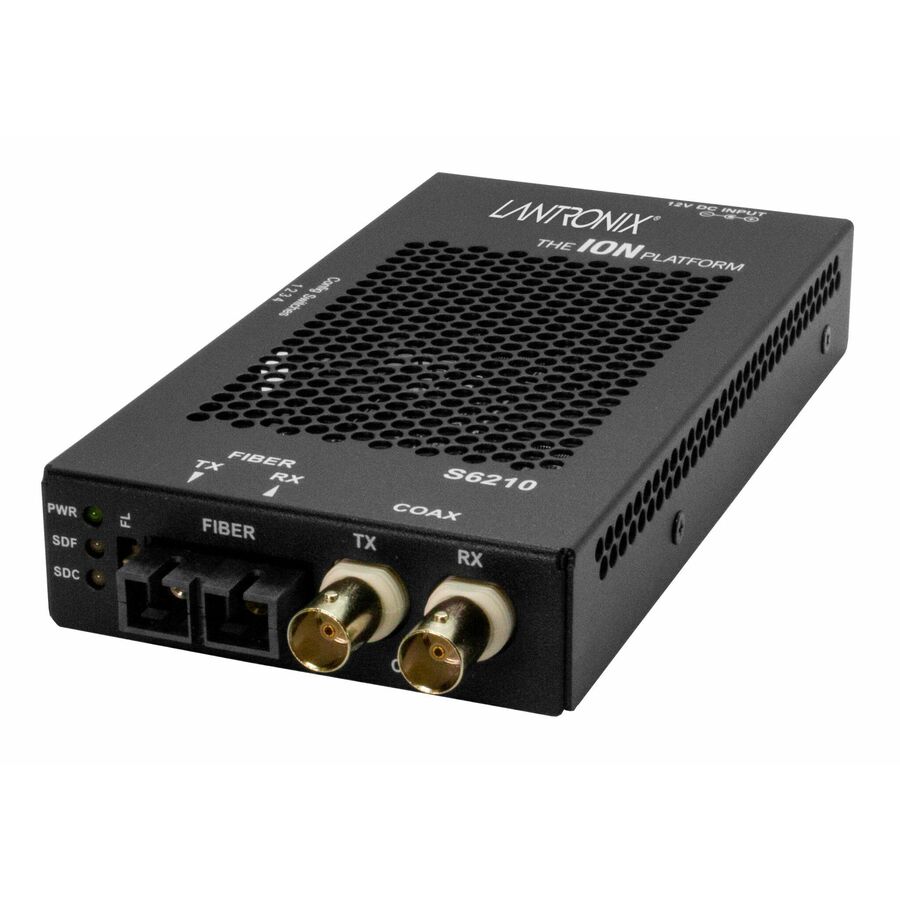

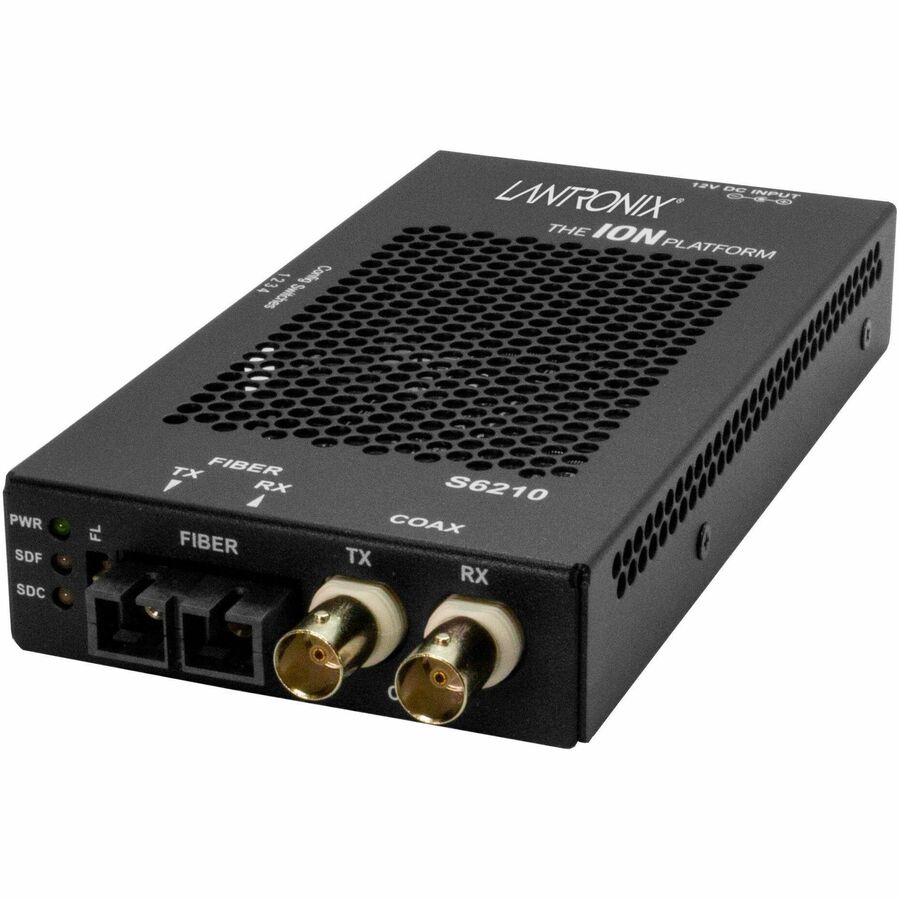

Transition Networks S6210-3014 Transceiver/Media Converter
1 x SC Ports - Single-mode - 1310 nm Fiber - 44.70 Mbit/s - 20 km - Power Supply - Wall Mountable, DIN Rail Mountable, Rack-mountable, Standalone, Shelf Mount - TAA Compliant
- SKU
- S6210-3014-SA
- Category
- Transceivers/Media Converters
MSRP$946.00
$686.73
Save 27%Back ordered — ships when restocked.
Genuine Lantronix through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- S6210-3014-SA
- Category
- Transceivers/Media Converters
Overview
Stand-alone DS3-T3/E3 Network Interface Device
DS3 - T3/E3 Coax over Fiber
The ION S6210 is a managed stand-alone media converter that provides a solution for those users that need to extend DS3-T3/E3 connections over fiber. The S6210 is available in versions that support fixed fiber connectors as well as SFP fiber modules offering support for a variety of fiber types, distances, and wavelengths to provide maximum flexibility across a variety of network topologies. CWDM SFPs can also be utilized to further increase the bandwidth capacity of the fiber infrastructure.
The S6210 DS3-T3/E3 converters must be used in pairs. Management of the stand-alone converter is supported, in-band, over the fiber, when the remote S6210 is linked to a C6210 card installed in a managed ION chassis.
Highlights
- AIS (Alarm Indication Signal)
- Coax Line Build Out
- Switch selectable for DS3/T3 or E3
- Remote firmware upgrade
- Loopback - Coax and Fiber
- LEDs for immediate visual status
- Supports dual or single fiber
- Supports multimode and single mode fiber at a variety of distances
- Supports CWDM SFPs
- SNMP management when used with ION chassis and management module
Specifications
| Package Contents |
|
|---|---|
| Product Type | Transceiver/Media Converter |
| Manufacturer Part Number | S6210-3014-SA |
| Maximum Distance Supported | 20 km |
| Power Source | Power Supply |
| Limited Warranty | Lifetime |
| Weight (Approximate) | 2 lb |
| Form Factor | Wall Mountable, DIN Rail Mountable, Rack-mountable, Standalone, Shelf Mount |
| Manufacturer | Lantronix, Inc |
| Product Model | S6210-3014 |
| Product Name | S6210-3014 Transceiver/Media Converter |
| Power Consumption | 2.40 W |
| Product Line | ION |
| Product Series | S6210 |
| Brand Name | Transition Networks |
| Height | 1" |
| Width | 3.5" |
| Depth | 6.5" |
| Environmentally Friendly | Yes |
| Maximum Data Transfer Rate | 44.70 Mbit/s |
| Number of SC Ports | 1 |
| Media Type Supported | Optical Fiber, Coaxial |
| Fiber Mode Supported | Single-mode |
| Total Number of Ports | 3 |
| TAA Compliant | Yes |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH), Restriction of Hazardous Substances (RoHS), Waste Electrical and Electronic Equipment Directive (WEEE) |
| Fiber Optic Cable Wavelength | 1310 nm |
