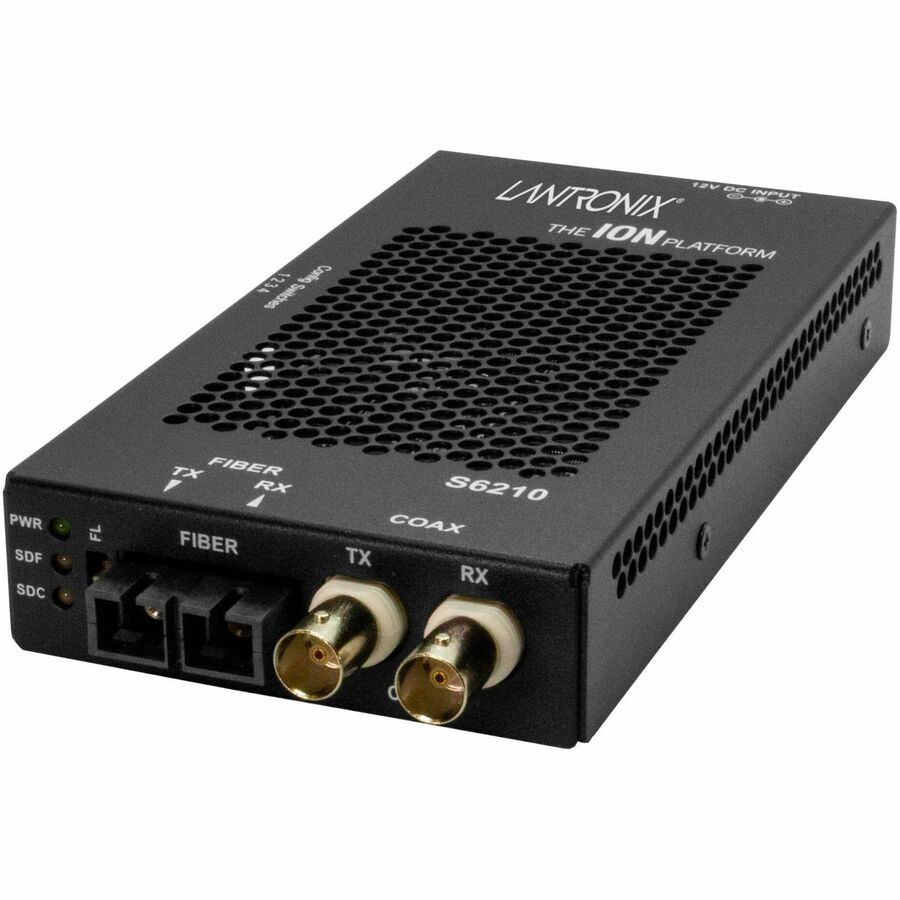

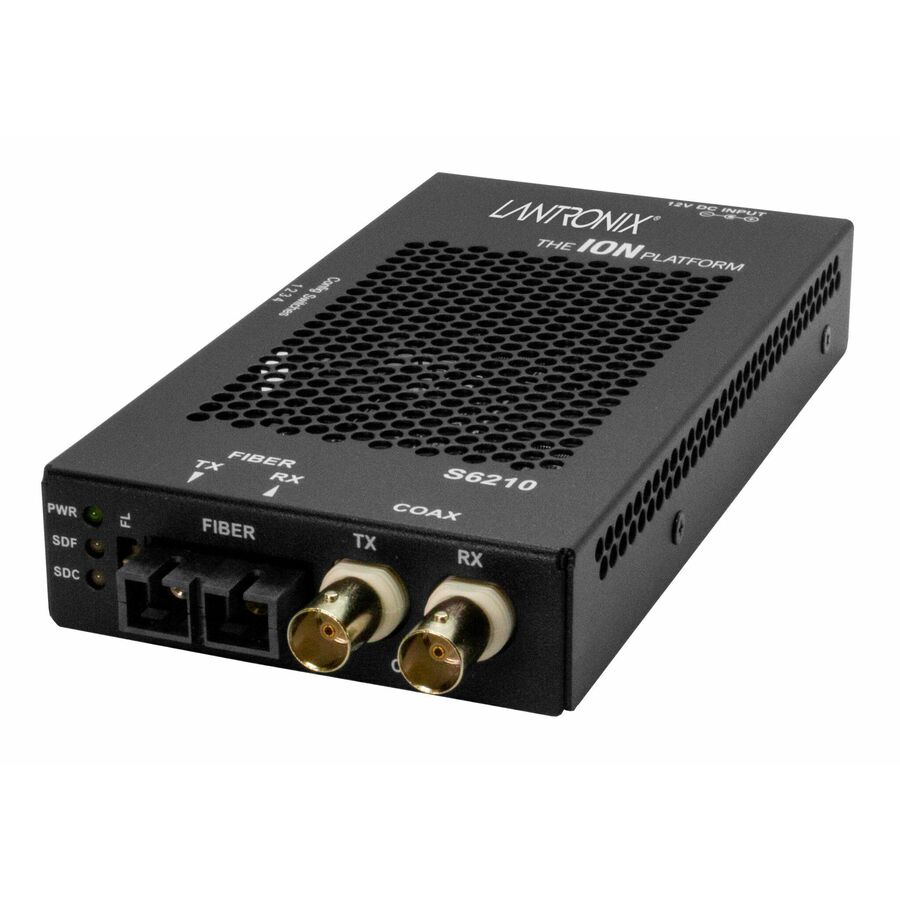

Transition Networks S6210-3014 Transceiver/Media Converter
Lantronix

Transition Networks S6210-3014 Transceiver/Media Converter

1 x SC Ports - Single-mode - 1310 nm Fiber - 44.70 Mbit/s - 20 km - Power Supply - Wall Mountable, DIN Rail Mountable, Rack-mountable, Standalone, Shelf Mount - TAA Compliant

SKU
S6210-3014-LA
Category
Transceivers/Media Converters

MSRP$946.00

$686.73

Save 27%
Back ordered

Back ordered — ships when restocked.

Get a quote

Genuine Lantronix through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

SKU
S6210-3014-LA
Category
Transceivers/Media Converters

Overview

Stand-alone DS3-T3/E3 Network Interface Device

DS3 - T3/E3 Coax over Fiber

The ION S6210 is a managed stand-alone media converter that provides a solution for those users that need to extend DS3-T3/E3 connections over fiber. The S6210 is available in versions that support fixed fiber connectors as well as SFP fiber modules offering support for a variety of fiber types, distances, and wavelengths to provide maximum flexibility across a variety of network topologies. CWDM SFPs can also be utilized to further increase the bandwidth capacity of the fiber infrastructure.

The S6210 DS3-T3/E3 converters must be used in pairs. Management of the stand-alone converter is supported, in-band, over the fiber, when the remote S6210 is linked to a C6210 card installed in a managed ION chassis.

Highlights

  • AIS (Alarm Indication Signal)
  • Coax Line Build Out
  • Switch selectable for DS3/T3 or E3
  • Remote firmware upgrade
  • Loopback - Coax and Fiber
  • LEDs for immediate visual status
  • Supports dual or single fiber
  • Supports multimode and single mode fiber at a variety of distances
  • Supports CWDM SFPs
  • SNMP management when used with ION chassis and management module

Specifications

Package Contents
  • S6210-3014 Transceiver/Media Converter
  • Power Supply - Latin America
Product TypeTransceiver/Media Converter
Manufacturer Part NumberS6210-3014-LA
Maximum Distance Supported20 km
Power SourcePower Supply
Limited WarrantyLifetime
Weight (Approximate)2 lb
Form FactorWall Mountable, DIN Rail Mountable, Rack-mountable, Standalone, Shelf Mount
ManufacturerLantronix, Inc
Product ModelS6210-3014
Product NameS6210-3014 Transceiver/Media Converter
Power Consumption2.40 W
Product LineION
Product SeriesS6210
Brand NameTransition Networks
Height1"
Width3.5"
Depth6.5"
Environmentally FriendlyYes
Maximum Data Transfer Rate44.70 Mbit/s
Number of SC Ports1
Media Type SupportedOptical Fiber, Coaxial
Fiber Mode SupportedSingle-mode
Total Number of Ports3
TAA CompliantYes
Environmental ComplianceRegistration, Evaluation, Authorization and Restriction of Chemicals (REACH), Restriction of Hazardous Substances (RoHS), Waste Electrical and Electronic Equipment Directive (WEEE)
Fiber Optic Cable Wavelength1310 nm
