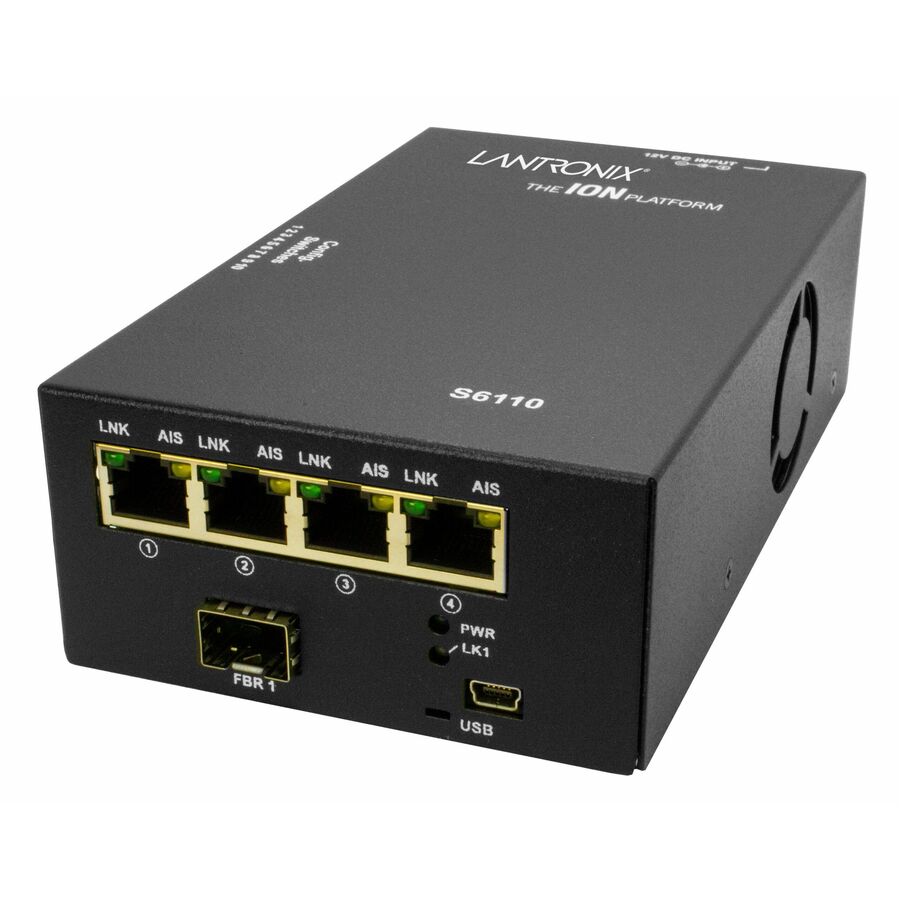

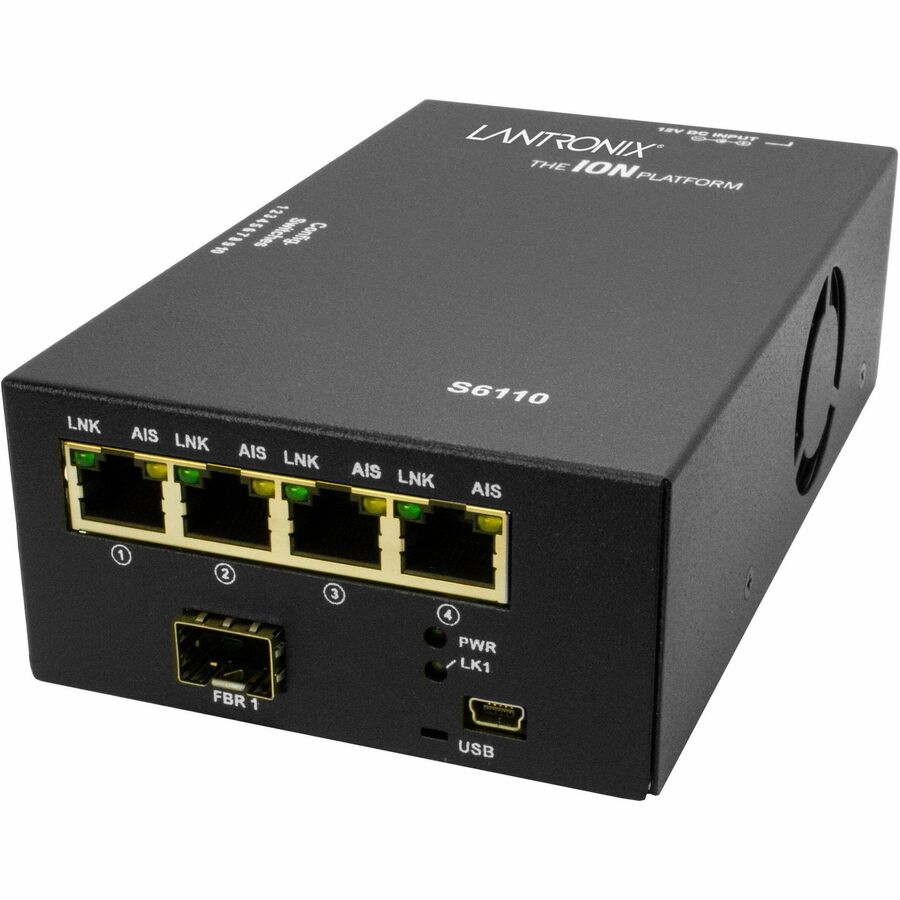

Transition Networks S6110-1040 Transceiver/Media Converter
100Base-X/OC-3, T1/E1/J1 - 1.50 km - 1 x Expansion Slots - SFP - 1 x SFP Slots - Power Supply - Standalone, Wall Mountable - TAA Compliant
- SKU
- S6110-1040-SA
- Category
- Transceivers/Media Converters
MSRP$1,086.00
$788.54
Save 27%Back ordered — ships when restocked.
Genuine Lantronix through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- S6110-1040-SA
- Category
- Transceivers/Media Converters
Overview
Stand-alone DS1 - T1/E1/J1 Network Interface Device
4 x DS1 - T1/E1/J1 over Fiber
The ION S6110 is a managed stand-alone DS1 - T1/E1/J1 media converter mux that provides a solution for those users that need to extend multiple DS1 - T1/E1/J1 connections over fiber. The S6110 includes (4) RJ-48 ports and (1) fiber port. The device offers support for a variety of fiber types, distances, and wavelengths to provide maximum flexibility across a variety of network topologies. CWDM SFPs can also be utilized to further increase the bandwidth capacity of the fiber infrastructure.
The S6110 converter must be used in pairs. Management of the stand-alone converter is supported, in-band, over the fiber, when the remote S6110 is linked to a C6110 card installed in a managed ION chassis.
Highlights
- (4) RJ-48 copper interfaces
- (1) fiber interface (SFP)
- Loopback via test set
- Local and remote loopbacks
- LEDs for device status and troubleshooting
- Settings for line code, line build out, loopbacks and Alarm Indication Signal (AIS)
- Access to complete status and configuration on local and remote device
- Remote firmware upgrade
- Remote management
- Extended operating temperature
- Must be used in pairs
Specifications
| Package Contents |
|
|---|---|
| Product Type | Transceiver/Media Converter |
| Manufacturer Part Number | S6110-1040-SA |
| Maximum Distance Supported | 1.50 km |
| Power Source | Power Supply |
| Limited Warranty | Lifetime |
| Weight (Approximate) | 2 lb |
| Form Factor | Standalone, Wall Mountable |
| Manufacturer | Lantronix, Inc |
| Product Model | S6110-1040 |
| Product Name | S6110-1040 Transceiver/Media Converter |
| Network Technology | 100Base-X/OC-3, T1/E1/J1 |
| Power Consumption | 6 W |
| Product Line | ION |
| Brand Name | Transition Networks |
| Expansion Slot Type | SFP |
| Height | 1.8" |
| Width | 3.7" |
| Depth | 6.5" |
| Environmentally Friendly | Yes |
| Number of SFP Slots | 1 |
| Media Type Supported | Optical Fiber, Twisted Pair |
| Total Number of Ports | 4 |
| Total Number of Expansion Slots | 1 |
| TAA Compliant | Yes |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH), Restriction of Hazardous Substances (RoHS), Waste Electrical and Electronic Equipment Directive (WEEE) |
