Lantronix S6010-1040 Transceiver/Media Converter
T1/E1 - 1.50 km - 1 x Expansion Slots - SFP - 1 x SFP Slots - AC Adapter - Wall Mountable, DIN Rail Mountable, Rack-mountable, Standalone, Shelf Mount - TAA Compliant
- SKU
- S6010-1040-NA
- Category
- Transceivers/Media Converters
MSRP$834.00
$605.90
Save 27%Back ordered — ships when restocked.
Genuine Lantronix through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- S6010-1040-NA
- Category
- Transceivers/Media Converters
Overview
Stand-alone DS1 - T1/E1 Remotely Managed NID
DS1 - T1/E1 over Fiber

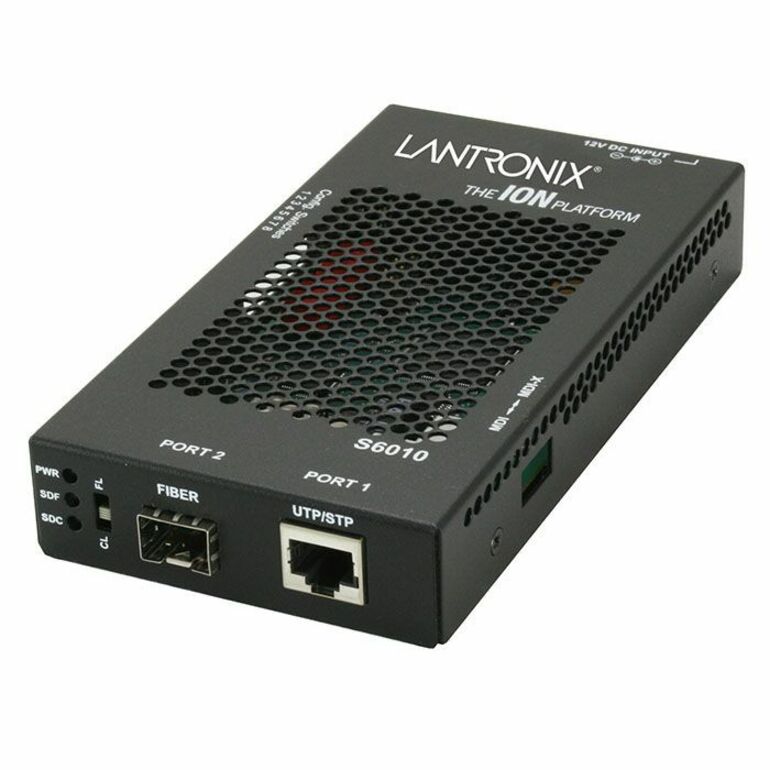

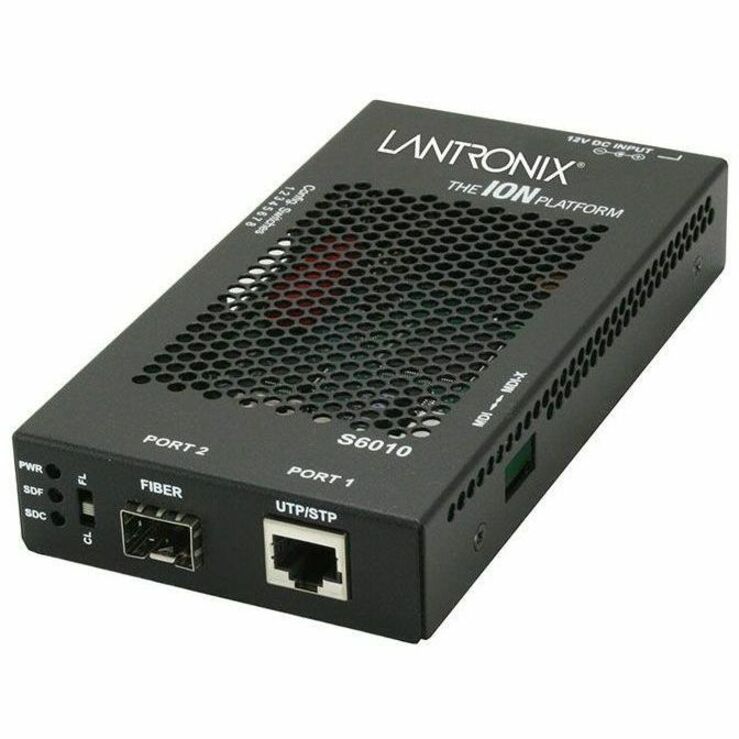

The ION S6010 is a stand-alone managed media converter that offers a solution for extending DS1 - T1/E1 or PRI connections over fiber optic cabling. It provides fiber extension though a twisted pair RJ-48 port and a fiber port. These DS1 - T1/E1 converters must be used in pairs, one on each end of the fiber link. Management of the stand-alone converter is supported, in-band, over the fiber, when the remote S6010 is linked to a C6010 card installed in a managed ION Chassis. These DS1 - T1/E1 converters are available with fixed fiber connectors or an open SFP slot, with support for various fiber types, distances, and wavelengths to provide maximum flexibility for any network topology. CWDM SFPs can also be used to further increase the bandwidth capacity of the fiber infrastructure.
Highlights
- Remote in-band management
- Local or Remote Loopbacks - Copper or Fiber
- Switch selectable for T1 or E1
- Remote firmware upgrade
- LEDs for immediate visual status
- Supports dual or single fiber
- Supports multimode and single mode fiber at a variety of distances
- Supports CWDM SFPs
- SNMP management when used with ION chassis and management module
- Remote stand-alone can be managed by local peer
Specifications
| Package Contents |
|
|---|---|
| Product Type | Transceiver/Media Converter |
| Manufacturer Part Number | S6010-1040-NA |
| Maximum Distance Supported | 1.50 km |
| Power Source | AC Adapter |
| Limited Warranty | Lifetime |
| Weight (Approximate) | 2 lb |
| Form Factor | Wall Mountable, DIN Rail Mountable, Rack-mountable, Standalone, Shelf Mount |
| Manufacturer | Lantronix, Inc |
| Product Model | S6010-1040 |
| Product Name | S6010-1040 Transceiver/Media Converter |
| Network Technology | T1/E1 |
| Power Consumption | 2.60 W |
| Product Series | S6010 |
| Brand Name | Lantronix |
| Expansion Slot Type | SFP |
| Height | 1" |
| Width | 3.3" |
| Depth | 6.5" |
| Environmentally Friendly | Yes |
| Number of SFP Slots | 1 |
| Media Type Supported | Optical Fiber, Twisted Pair |
| Total Number of Ports | 1 |
| Total Number of Expansion Slots | 1 |
| TAA Compliant | Yes |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH), Restriction of Hazardous Substances (RoHS), Waste Electrical and Electronic Equipment Directive (WEEE) |
