Lantronix S4120-1048 Transceiver/Media Converter
Lantronix

Lantronix S4120-1048 Transceiver/Media Converter

1 x Network (RJ-45) - 10 Gigabit Ethernet - 10GBase-T, 10GBase-X - 10 Gbit/s - 0.10 km - 1 x Expansion Slots - SFP+ - 1 x SFP+ Slots - AC/DC - Standalone, Rack-mountable, Wall Mountable, DIN Rail Mountable, Shelf Mount - TAA Compliant

SKU
S4120-1048-LA
Category
Transceivers/Media Converters

MSRP$1,977.00

$1,434.53

Save 27%
Back ordered

Back ordered — ships when restocked.

Get a quote

Genuine Lantronix through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

SKU
S4120-1048-LA
Category
Transceivers/Media Converters

Overview

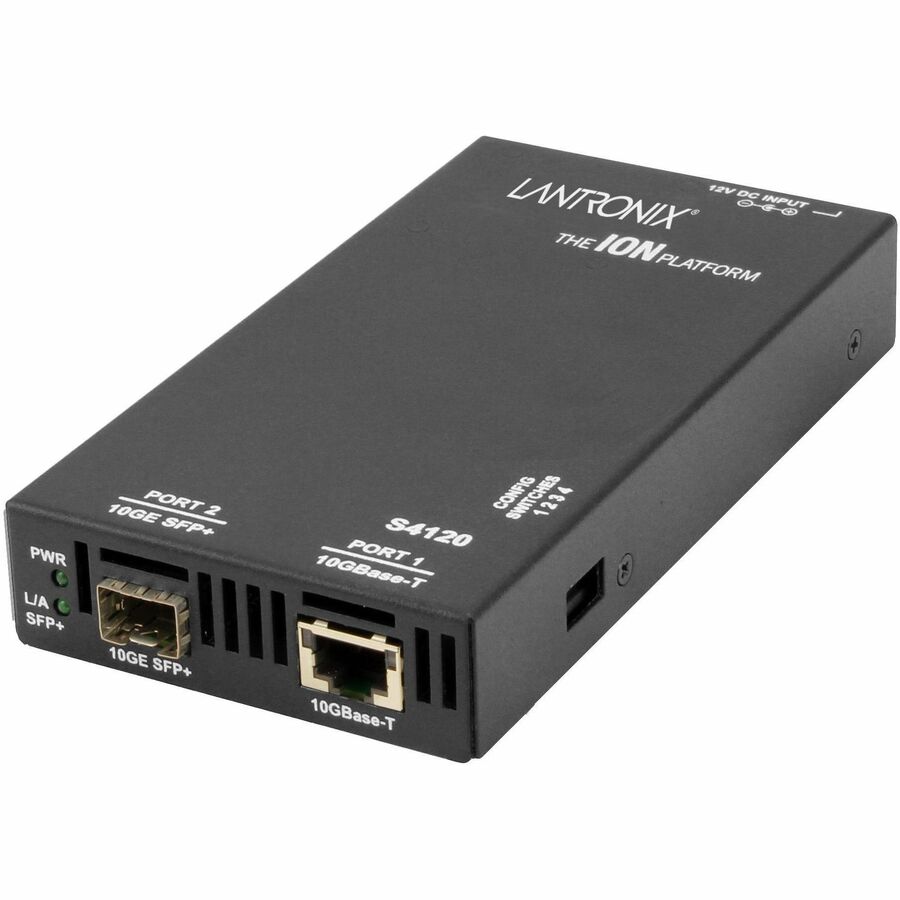

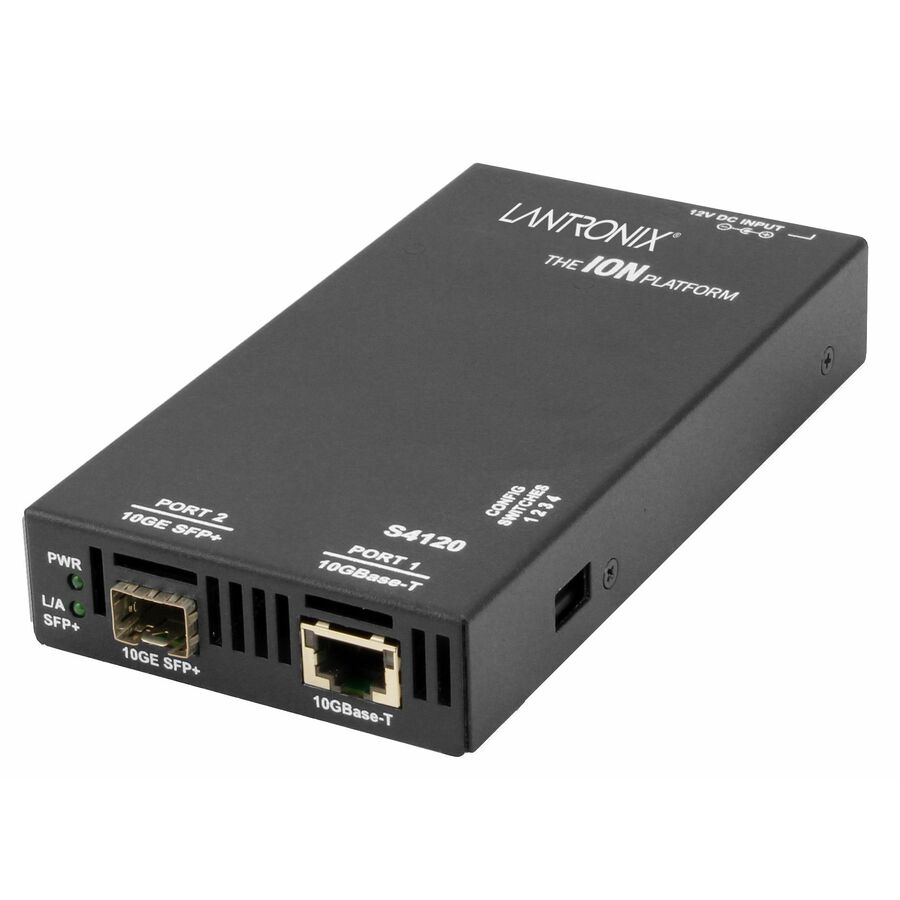

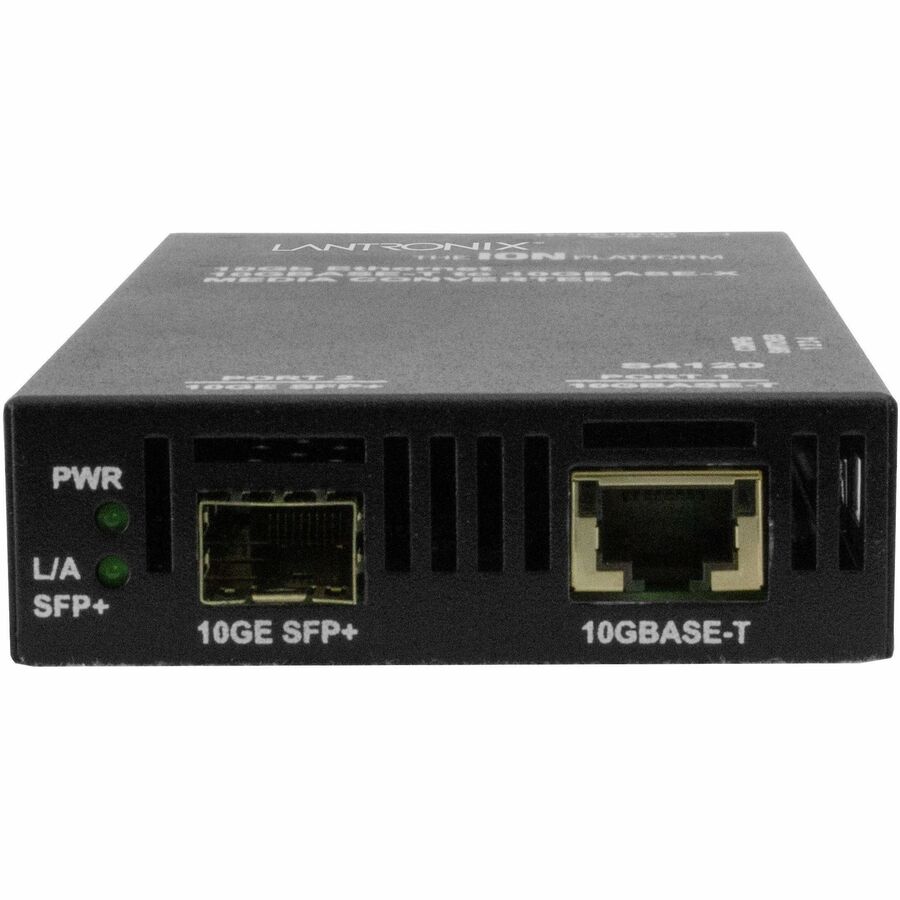

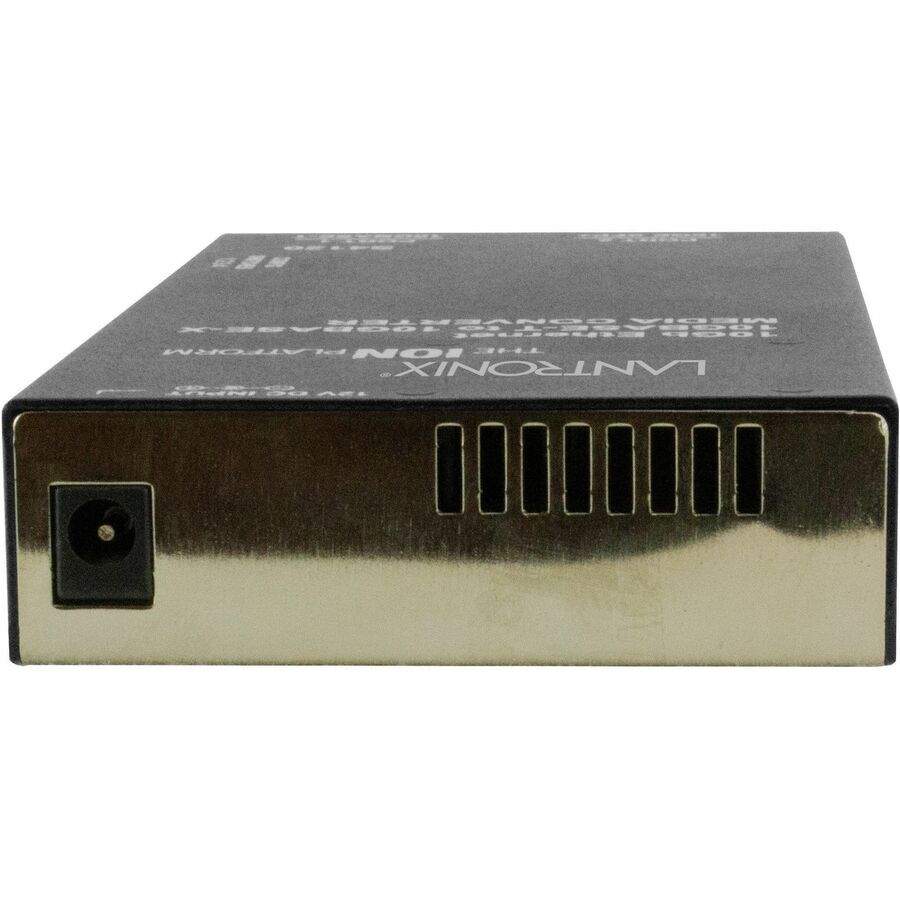

Stand-alone 10 Gigabit Ethernet Media Converter

10GBase-T Copper to Fiber

The S4120 is a stand-alone media converter that provides an interface between 10GBase-T ports and 10GBase-X slot via an open SFP+ port, allowing users to convert their 10Gig Ethernet ports to the preferred type of cabling used in their networks. The open SFP+ slot supports a wide variety of Transition Networks 10GE SFP+ fiber modules. Operating at Layer 1, the physical layer, data is passed through the converter at line speed, making the S4120 ideal for applications where low latency is essential. The ION S4120 can be managed, in-band, over the fiber, when it is linked back to a C4120 card installed in a managed ION chassis.

Highlights

  • Transparent Link Pass Through
  • Auto-Negotiation
  • Auto-MDI/MDIX
  • Automatic Link Restoration
  • Loopback on Fiber and Copper
  • DMI
  • Support Remote In-band Management and Remote Firmware Upgrade when linked to a C4120 card installed in a managed ION chassis
  • Fiber Port supported standards: 10GBase-SR | 10GBase-LRM | 10GBase-LR | 10GBase-ER | 10GBase-ZR
  • The open SFP+ port also supports: Direct attached 10G copper cable assemblies: Both Class-I and Class-II fiber | SFP+ modules | SFP modules supporting WDM technology
  • Support 100m on Cat6a or higher UTP Per Energy Efficient Ethernet standards, IEEE 802.3az, UTP cable length is detected and power is adjusted according, to reduce power consumption on shorter UTP cable installs

Specifications

Package Contents
  • S4120-1048 Transceiver/Media Converter
  • Power Supply - Latin America
Product TypeTransceiver/Media Converter
Manufacturer Part NumberS4120-1048-LA
Maximum Distance Supported0.10 km
Power SourceAC/DC
Limited WarrantyLifetime
Weight (Approximate)2 lb
Form FactorStandalone, Rack-mountable, Wall Mountable, DIN Rail Mountable, Shelf Mount
ManufacturerLantronix, Inc
Product ModelS4120-1048
Product NameS4120-1048 Transceiver/Media Converter
Network Technology10GBase-T, 10GBase-X
Power Consumption10.50 W
Product LineION
Brand NameLantronix
Expansion Slot TypeSFP+
Height1"
Width3.3"
Depth6.5"
Environmentally FriendlyYes
Maximum Data Transfer Rate10 Gbit/s
Ethernet Technology10 Gigabit Ethernet
Number of Network (RJ-45) Ports1
Network (RJ-45)Yes
Number of SFP+ Slots1
Media Type SupportedOptical Fiber, Twisted Pair
Total Number of Ports1
Total Number of Expansion Slots1
TAA CompliantYes
Environmental ComplianceRegistration, Evaluation, Authorization and Restriction of Chemicals (REACH), Restriction of Hazardous Substances (RoHS), Waste Electrical and Electronic Equipment Directive (WEEE)
