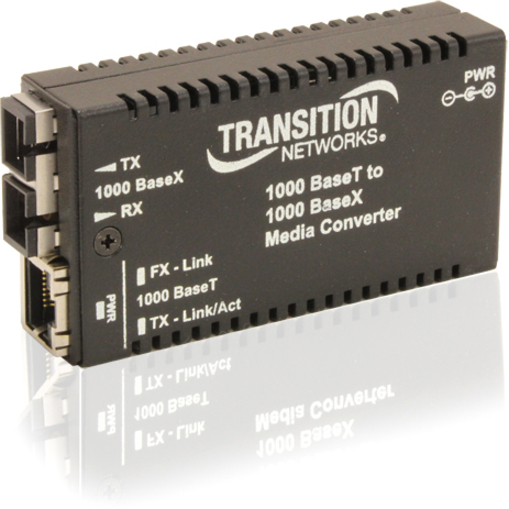

Transition Networks M/GE-T-SX-01 Transceiver/Media Converter
Lantronix

Transition Networks M/GE-T-SX-01 Transceiver/Media Converter

1 x Network (RJ-45) - 1 x SC Ports - 10/100/1000Base-T, 1000Base-SX - 0.55 km - Desktop, Wall Mountable, Rack-mountable

SKU
M/GE-T-SX-01-NA
Category
Transceivers/Media Converters

MSRP$336.00

$244.07

Save 27%
Back ordered

Back ordered — ships when restocked.

Get a quote

Genuine Lantronix through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

SKU
M/GE-T-SX-01-NA
Category
Transceivers/Media Converters

Overview

Mini Gigabit Ethernet Media Converter

1000Base-T to 1000Base-SX/LX

The M/GE-T Series is a Gigabit Ethernet stand-alone Mini media converter that provides cost effective media conversion between 1000Base-T ports and 1000Base-SX/LX ports. With its fixed configuration, deployments are just plug-and-play, and its small size makes it ideal for locations where space is limited. Operating at Layer 1, the physical layer, data is passed through the converter at line speed, making it ideal for applications where low latency is essential.

Highlights

  • Auto-Negotiation
  • Auto-MDI/MDIX
  • Automatic Link Restoration
  • Interoperable with other 1000Base-T/SX/LX NICs or switch ports
  • Status LEDs for easy monitoring
  • Supports SFP modules
  • Supports Jumbo Frames up to 13312bytes
  • 65% smaller than standard media converter
  • Extend Network Distance
  • Low-Latency Design
  • Fiber Link Pass Through

Specifications

Package Contents
  • M/GE-T-SX-01 Transceiver/Media Converter
  • Power Supply - North America
Product TypeTransceiver/Media Converter
Manufacturer Part NumberM/GE-T-SX-01-NA
Maximum Distance Supported0.55 km
Limited WarrantyLifetime
Form FactorDesktop, Wall Mountable, Rack-mountable
ManufacturerLantronix, Inc
Product ModelM/GE-T-SX-01
Product NameM/GE-T-SX-01 Transceiver/Media Converter
Network Technology10/100/1000Base-T, 1000Base-SX
Brand NameTransition Networks
Height0.9"
Width1.8"
Depth3.3"
Environmentally FriendlyYes
Ethernet TechnologyGigabit Ethernet
USBNo
DVINo
Number of Network (RJ-45) Ports1
Network (RJ-45)Yes
Management PortNo
Number of SC Ports1
Media Type SupportedOptical Fiber, Twisted Pair
Fiber Mode SupportedMulti-mode
Total Number of Ports2
Environmental ComplianceError-dirty-data
