Lantronix M/GE-T-LX-01 Transceiver/Media Converter
Lantronix

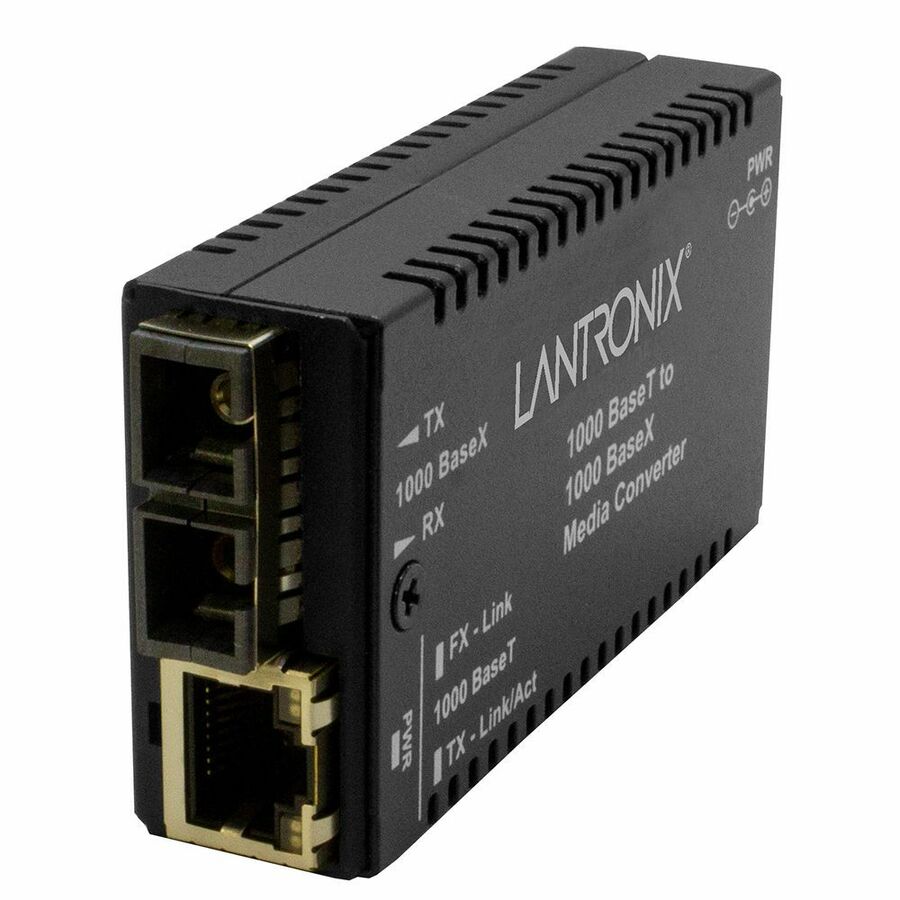

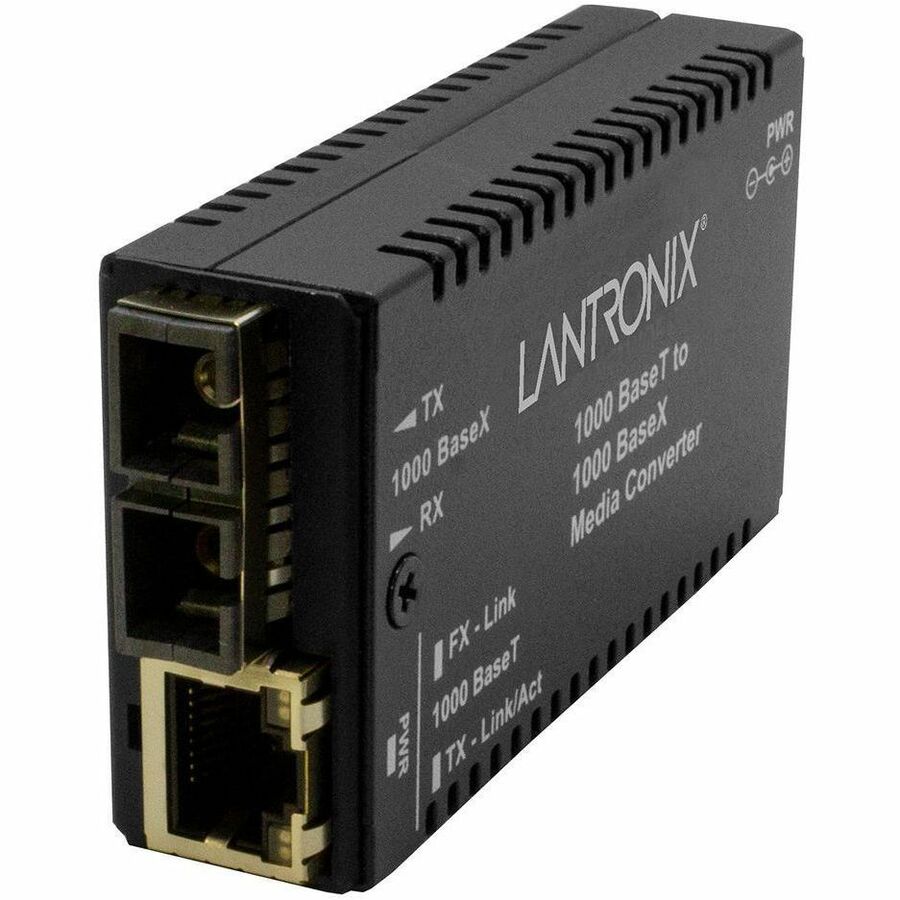

Lantronix M/GE-T-LX-01 Transceiver/Media Converter

1 x Network (RJ-45) - 1 x SC Ports - Single-mode - 1310 nm Fiber - Gigabit Ethernet - 1000Base-LX, 1000Base-T - 1000 Mbit/s - 10 km - AC/DC - Wall Mountable, DIN Rail Mountable, Rack-mountable, Standalone - TAA Compliant

SKU
M/GE-T-LX-01-EU
Category
Transceivers/Media Converters

MSRP$429.00

$301.55

Save 30%
Back ordered

Back ordered — ships when restocked.

Get a quote

Genuine Lantronix through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

SKU
M/GE-T-LX-01-EU
Category
Transceivers/Media Converters

Overview

Mini Gigabit Ethernet Media Converter

1000Base-T to 1000Base-SX/LX

The M/GE-T Series is a Gigabit Ethernet stand-alone Mini media converter that provides cost effective media conversion between 1000Base-T ports and 1000Base-SX/LX ports. With its fixed configuration, deployments are just plug-and-play, and its small size makes it ideal for locations where space is limited. Operating at Layer 1, the physical layer, data is passed through the converter at line speed, making it ideal for applications where low latency is essential.

Highlights

  • Auto-Negotiation
  • Auto-MDI/MDIX
  • Automatic Link Restoration
  • Interoperable with other 1000Base-T/SX/LX NICs or switch ports
  • Status LEDs for easy monitoring
  • Supports SFP modules
  • Supports Jumbo Frames up to 13312bytes
  • 65% smaller than standard media converter
  • Extend Network Distance
  • Low-Latency Design
  • Fiber Link Pass Through

Specifications

Package Contents
  • M/GE-T-LX-01 Transceiver/Media Converter
  • Power Supply - Europe
Product TypeTransceiver/Media Converter
Manufacturer Part NumberM/GE-T-LX-01-EU
Maximum Distance Supported10 km
Power SourceAC/DC
Limited WarrantyLifetime
Weight (Approximate)2 lb
Form FactorWall Mountable, DIN Rail Mountable, Rack-mountable, Standalone
ManufacturerLantronix, Inc
Product ModelM/GE-T-LX-01
Product NameM/GE-T-LX-01 Transceiver/Media Converter
Network Technology1000Base-LX, 1000Base-T
Power Consumption2.60 W
Product SeriesM/GE-T
Brand NameLantronix
Height0.9"
Width1.8"
Depth3.3"
Environmentally FriendlyYes
Maximum Data Transfer Rate1000 Mbit/s
Ethernet TechnologyGigabit Ethernet
Number of Network (RJ-45) Ports1
Network (RJ-45)Yes
Number of SC Ports1
Media Type SupportedOptical Fiber, Twisted Pair
Fiber Mode SupportedSingle-mode
Total Number of Ports2
TAA CompliantYes
Environmental ComplianceRegistration, Evaluation, Authorization and Restriction of Chemicals (REACH), Restriction of Hazardous Substances (RoHS), Waste Electrical and Electronic Equipment Directive (WEEE)
Fiber Optic Cable Wavelength1310 nm
