Lantronix M/GE-PSW-SX-01(ST) Transceiver/Media Converter
Lantronix

Lantronix M/GE-PSW-SX-01(ST) Transceiver/Media Converter

1 x Network (RJ-45) - 1 x ST Ports - Multi-mode - 850 nm Fiber - Gigabit Ethernet - 10/100/1000Base-T, 1000Base-SX - 1000 Mbit/s - 0.55 km - AC Adapter - Wall Mountable, DIN Rail Mountable, Rack-mountable, Standalone - TAA Compliant

SKU
M/GE-PSW-SX-01(ST)-NA
Category
Transceivers/Media Converters

MSRP$413.00

$300.47

Save 27%
Back ordered

Back ordered — ships when restocked.

Get a quote

Genuine Lantronix through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

SKU
M/GE-PSW-SX-01(ST)-NA
Category
Transceivers/Media Converters

Overview

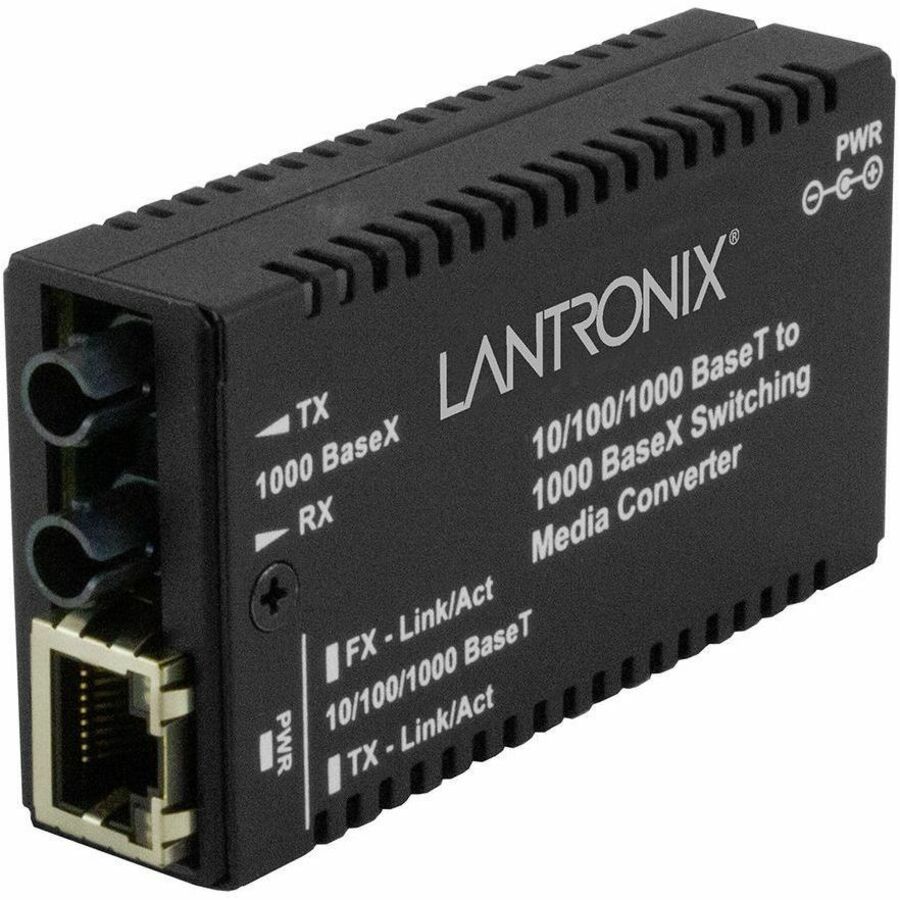

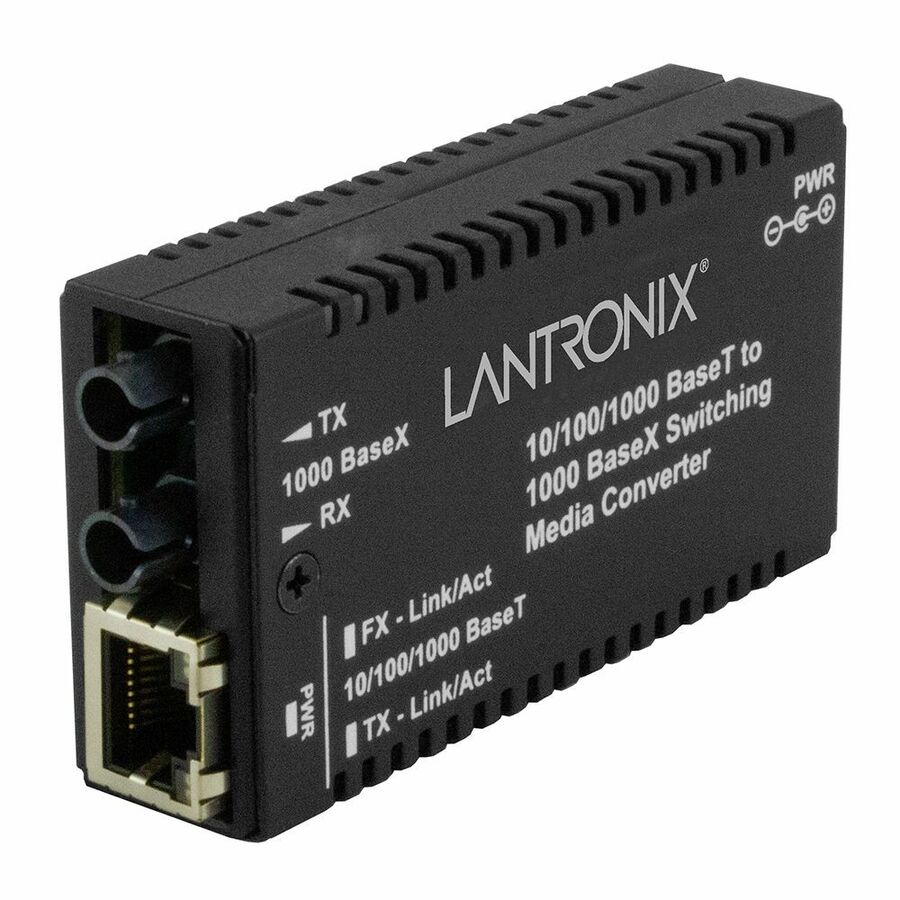

Mini Gigabit Ethernet Media Converter

10/100/1000Base-T to 1000Base-SX/LX

The M/GE-PSW Series is a Gigabit Ethernet stand-alone Mini media converter that provides cost effective media conversion between 10/100/1000Base-T ports and 1000Base-SX/LX ports. With its fixed configuration, deployments are just plug-and-play, and its small size makes it ideal for locations where space is limited. Operating at Layer 2, the data link layer, this converter not only converts copper to fiber, it also provides rate conversion allowing legacy 10/100 copper devices to connect to 1000Base-SX/LX fiber.

Highlights

  • Unit & Port LEDs allow for quick status information
  • Auto-Negotiation
  • Fixed Full-Duplex on fiber
  • Auto-MDI/MDIX
  • Active Link Pass Through
  • Automatic Link Restoration
  • Space saving design
  • Connect Legacy Networking Equipment: Connect an existing 10/100 Mbps device to 1000 Mbps devices.
  • Jumbo Frame (up to 10,240 Bytes)
  • USB Power Option, requires the use of a USB to DC barrel connector cable (USBC-AM-DC)

Specifications

Package Contents
  • M/GE-PSW-SX-01(ST) Transceiver/Media Converter
  • Power Supply - North America
Product TypeTransceiver/Media Converter
Manufacturer Part NumberM/GE-PSW-SX-01(ST)-NA
Maximum Distance Supported0.55 km
Power SourceAC Adapter
Limited WarrantyLifetime
Weight (Approximate)2 lb
Form FactorWall Mountable, DIN Rail Mountable, Rack-mountable, Standalone
ManufacturerLantronix, Inc
Product ModelM/GE-PSW-SX-01(ST)
Product NameM/GE-PSW-SX-01(ST) Transceiver/Media Converter
Network Technology10/100/1000Base-T, 1000Base-SX
Power Consumption3.15 W
Product SeriesM/GE-PSW
Brand NameLantronix
Height0.9"
Width1.8"
Depth3.3"
Environmentally FriendlyYes
Maximum Data Transfer Rate1000 Mbit/s
Ethernet TechnologyGigabit Ethernet
Number of Network (RJ-45) Ports1
Network (RJ-45)Yes
Number of ST Ports1
Media Type SupportedOptical Fiber, Twisted Pair
Fiber Mode SupportedMulti-mode
Total Number of Ports2
TAA CompliantYes
Environmental ComplianceRegistration, Evaluation, Authorization and Restriction of Chemicals (REACH), Restriction of Hazardous Substances (RoHS), Waste Electrical and Electronic Equipment Directive (WEEE)
Fiber Optic Cable Core/Cladding Specification62.5/125 µm, 50/125 µm
Fiber Optic Cable Wavelength850 nm
