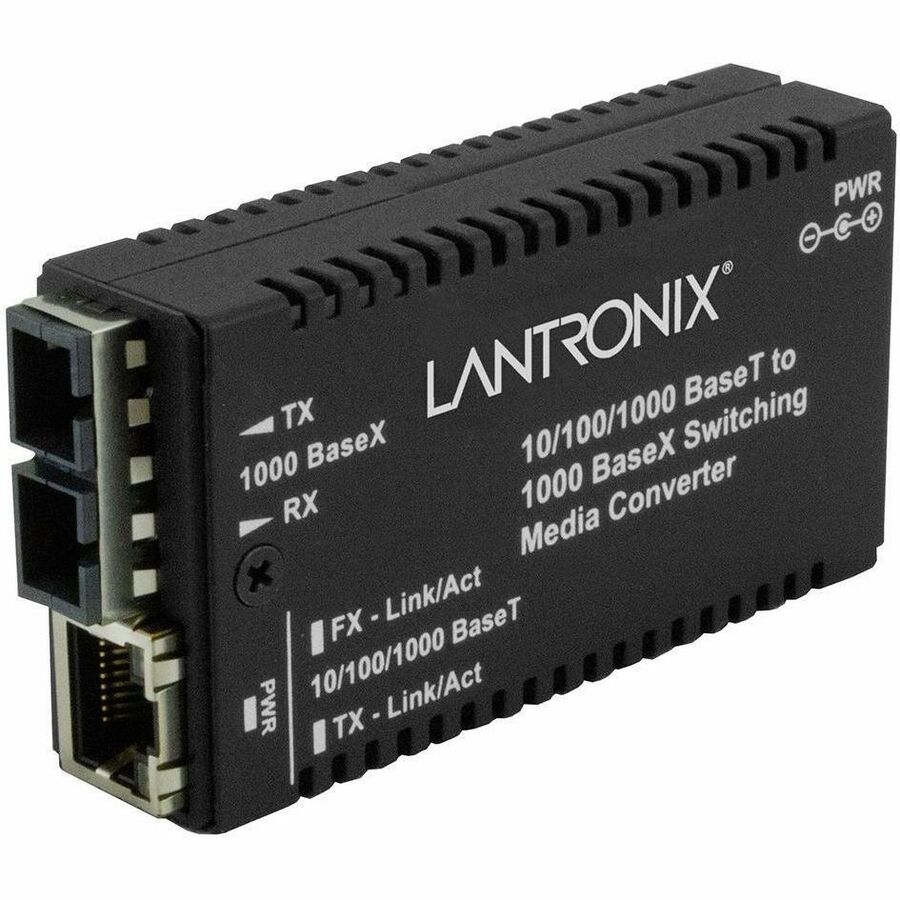

Mini Gigabit Ethernet Media Converter 10/100/1000Base-T to 1000Base-SX/LX
Lantronix

Mini Gigabit Ethernet Media Converter 10/100/1000Base-T to 1000Base-SX/LX

Mini 10/100/1000BT -1000BX Switch, SC MM, 3.3V

SKU
M/GE-PSW-SX-01-LA
Category
Transceivers/Media Converters

MSRP$413.00

$299.80

Save 27%
Back ordered

Back ordered — ships when restocked.

Get a quote

Genuine Lantronix through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

SKU
M/GE-PSW-SX-01-LA
Category
Transceivers/Media Converters

Overview

A Gigabit Ethernet stand-alone Mini media converter that provides cost effective media conversion between 10/100/1000Base-T ports and 1000Base-SX/LX ports. With its fixed configuration, deployments are just plug-and-play, and its small size makes it ideal for locations where space is limited. Operating at Layer 2, the data link layer, this converter not only converts copper to fiber, it also provides rate conversion allowing legacy 10/100 copper devices to connect to 1000Base-SX/LX fiber. NDAA Compliant, TAA Compliant

Highlights

  • Unit & Port LEDs allow for quick status information
  • Auto-Negotiation
  • Fixed Full-Duplex on fiber
  • Auto-MDI/MDIX
  • Active Link Pass Through
  • Automatic Link Restoration
  • Space saving design
  • Connect Legacy Networking Equipment: Connect an existing 10/100 Mbps device to 1000 Mbps devices.
  • Jumbo Frame up to 10,240 Bytes
  • USB Power Option, requires the use of a USB to DC barrel connector cable USBC-AM-DC

Specifications

Package Contents
  • M/GE-PSW-SX-01 Gigabit Ethernet Media Converter Power Supply (Latin America)
Product TypeTransceiver/Media Converter
Manufacturer Part NumberM/GE-PSW-SX-01-LA
Maximum Distance Supported0.55 km
Power SourcePower Supply
Limited WarrantyLifetime
Weight (Approximate)2 lb
Form FactorExternal, Wall Mountable
ManufacturerLantronix, Inc
Product ModelM/GE-PSW-SX-01
Product NameM/GE-PSW-SX-01 Gigabit Ethernet Media Converter
Network Technology10/100/1000Base-T, 1000Base-SX
Power Consumption3.15 W
Product SeriesM/GE-PSW
Brand NameLantronix
Height0.9"
Width1.8"
Depth3.3"
Ethernet TechnologyGigabit Ethernet
Number of Network (RJ-45) Ports1
Network (RJ-45)Yes
Number of SC Ports1
Media Type SupportedTwisted Pair, Optical Fiber
Total Number of Ports2
SC Port TypeDuplex
TAA CompliantYes
Fiber Optic Cable Core/Cladding Specification62.5/125 µm, 50/125 µm
