Transition Networks M/E-TX-FX-01(SFP) Transceiver/Media Converter
1 x Network (RJ-45) - Fast Ethernet - 100Base-X, 100Base-TX - 100 Mbit/s - 0.10 km - 1 x Expansion Slots - SFP - 1 x SFP Slots - AC/DC - Wall Mountable, DIN Rail Mountable, Rack-mountable, Standalone - TAA Compliant
- SKU
- M/E-TX-FX-01(SFP)-BR
- Category
- Transceivers/Media Converters
MSRP$128.00
$95.49
Save 25%Back ordered — ships when restocked.
Genuine Lantronix through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- M/E-TX-FX-01(SFP)-BR
- Category
- Transceivers/Media Converters
Overview

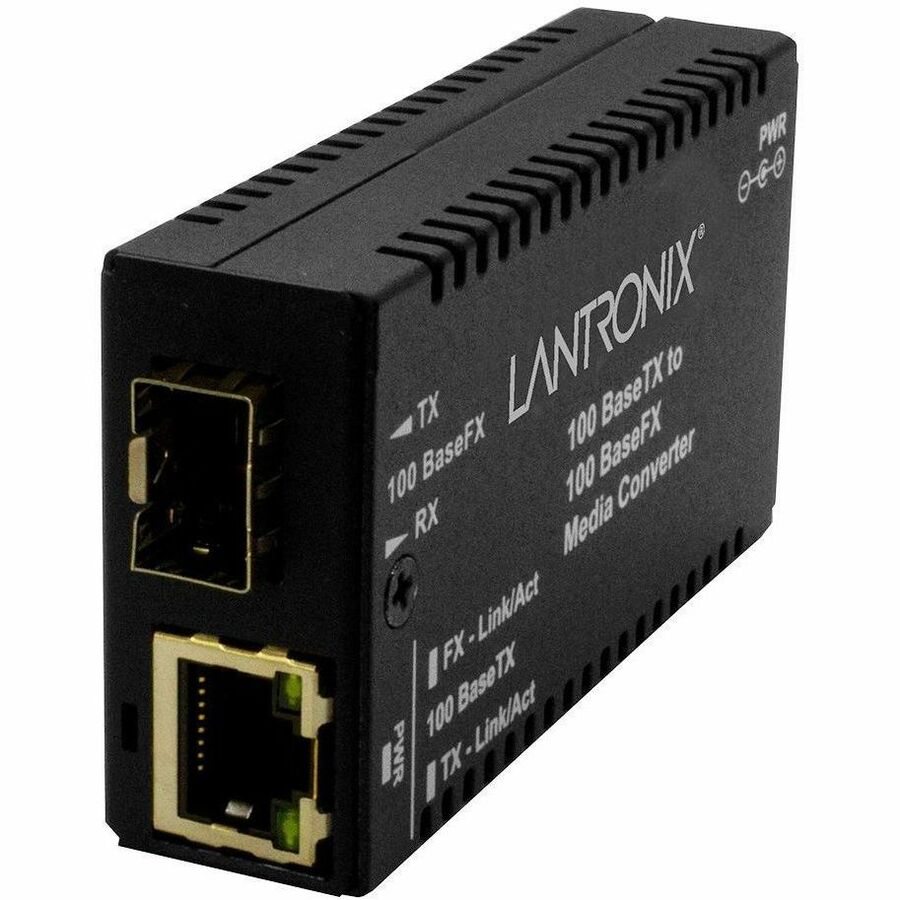

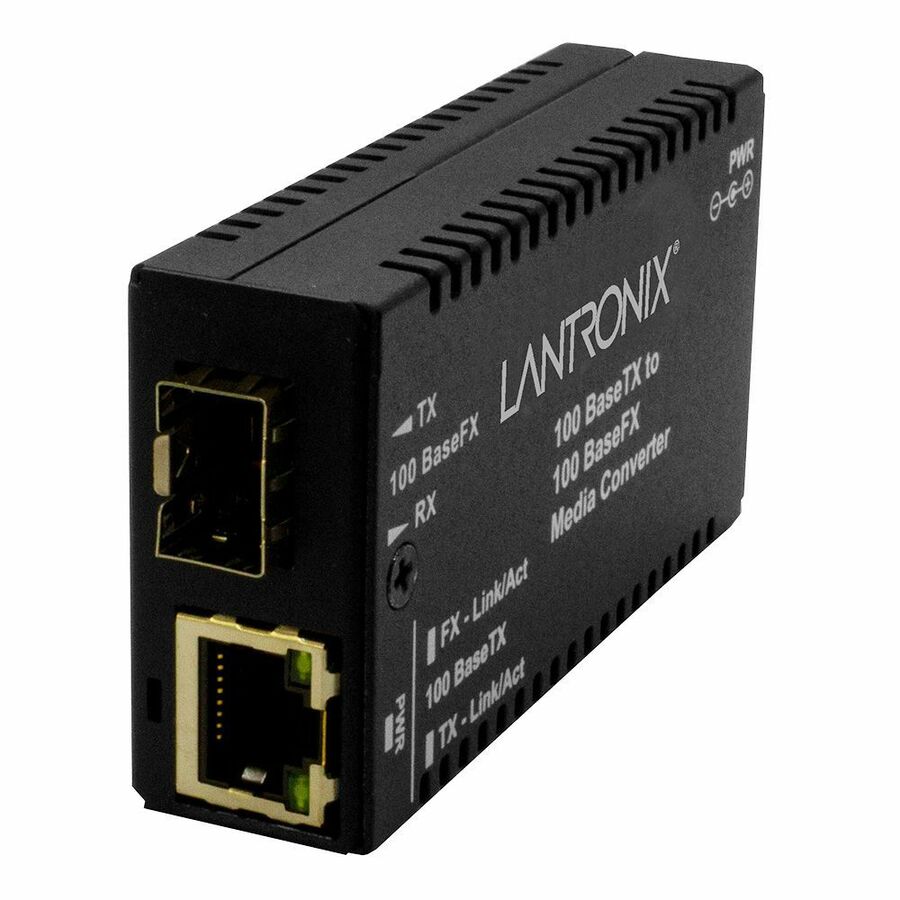

Mini Fast Ethernet Media Converter
100Base-TX to 100Base-FX
The M/E-TX Series is a Fast Ethernet stand-alone Mini media converter that provides cost effective media conversion between 100Base-TX ports and 100Base-FX ports. With its fixed configuration, deployments are just plug-and-play, and its small size makes it ideal for locations where space is limited. Operating at Layer 1, the physical layer, data is passed through the converter at line speed, making it ideal for applications where low latency is essential.
Highlights
- Fiber integration used in pairs or as a single unit, this mini media converter will ease the integration of fiber optic cabling into copper-rich fast Ethernet environments
- Extend Network Distance as fiber supports the transmission of Fast Ethernet data over much longer distances than possible twisted pair
- Low-Latency Layer 1 Design, this mini converter will retransmit Fast Ethernet signals without any store-and-forward packet inspection delays found in other Layer 2 devices
- Small Size is ideal for conversion locations where available space is limited - 65% smaller than standard media converter
- Unit and port LEDs allow for quick status information
- Auto-Negotiation
- Auto-MDI/MDIX
Specifications
| Package Contents |
|
|---|---|
| Product Type | Transceiver/Media Converter |
| Manufacturer Part Number | M/E-TX-FX-01(SFP)-BR |
| Maximum Distance Supported | 0.10 km |
| Power Source | AC/DC |
| Limited Warranty | Lifetime |
| Weight (Approximate) | 2 lb |
| Form Factor | Wall Mountable, DIN Rail Mountable, Rack-mountable, Standalone |
| Manufacturer | Lantronix, Inc |
| Product Model | M/E-TX-FX-01(SFP) |
| Product Name | M/E-TX-FX-01(SFP) Transceiver/Media Converter |
| Network Technology | 100Base-X, 100Base-TX |
| Power Consumption | 2.60 W |
| Product Series | M/E-TX |
| Brand Name | Transition Networks |
| Expansion Slot Type | SFP |
| Height | 0.9" |
| Width | 1.8" |
| Depth | 3.3" |
| Environmentally Friendly | Yes |
| Maximum Data Transfer Rate | 100 Mbit/s |
| Ethernet Technology | Fast Ethernet |
| Number of Network (RJ-45) Ports | 1 |
| Network (RJ-45) | Yes |
| Number of SFP Slots | 1 |
| Media Type Supported | Optical Fiber, Twisted Pair |
| Total Number of Ports | 1 |
| Total Number of Expansion Slots | 1 |
| TAA Compliant | Yes |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH), Restriction of Hazardous Substances (RoHS), Waste Electrical and Electronic Equipment Directive (WEEE) |
