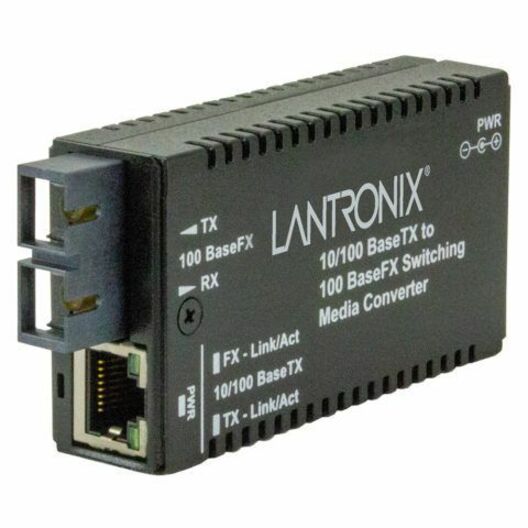

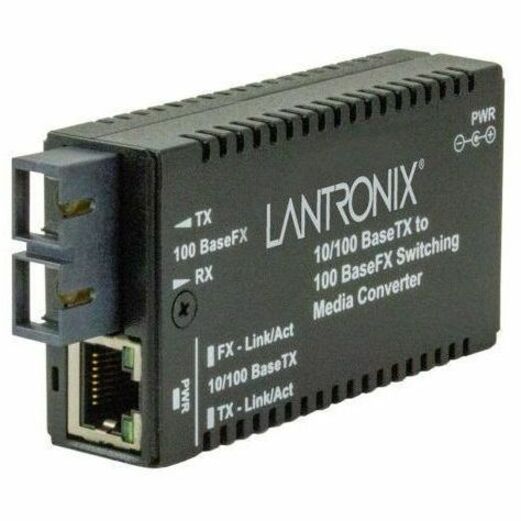

Lantronix M/E-PSW-FX-02 Transceiver/Media Converter
1 x Network (RJ-45) - 1 x ST Ports - Multi-mode - 1300 nm Fiber - Fast Ethernet - 10/100Base-TX, 100Base-FX - 100 Mbit/s - 2 km - AC/DC - Standalone, Rack-mountable, Wall Mountable, DIN Rail Mountable - TAA Compliant
- SKU
- M/E-PSW-FX-02-SA
- Category
- Transceivers/Media Converters
MSRP$146.00
$106.15
Save 27%Back ordered — ships when restocked.
Genuine Lantronix through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- M/E-PSW-FX-02-SA
- Category
- Transceivers/Media Converters
Overview
Mini Fast Ethernet Media Converter
10/100Base-TX to 100Base-FX
The M/E-PSW Series is a Fast Ethernet stand-alone Mini media converter that provides cost effective media conversion between 10/100Base-TX ports and 100Base-FX ports. With its fixed configuration, deployments are just plug-and-play, and its small size makes it ideal for locations where space is limited. Operating at Layer 2, the data link layer, this converter not only converts copper to fiber, it also provides rate conversion allowing legacy 10Base-T copper devices to connect to 100Base-FX fiber.
Highlights
- Unit and Port LEDs allow for quick status information
- Auto-Negotiation
- Fixed Full-Duplex on fiber
- Auto-MDI/MDIX
- Automatic Link Restoration
- Far-End-Fault (FEF)
- Connect to legacy network equipment
- Eliminate Collision Domains
Specifications
| Package Contents |
|
|---|---|
| Product Type | Transceiver/Media Converter |
| Manufacturer Part Number | M/E-PSW-FX-02-SA |
| Maximum Distance Supported | 2 km |
| Power Source | AC/DC |
| Limited Warranty | Lifetime |
| Weight (Approximate) | 2 lb |
| Form Factor | Standalone, Rack-mountable, Wall Mountable, DIN Rail Mountable |
| Manufacturer | Lantronix, Inc |
| Product Model | M/E-PSW-FX-02 |
| Product Name | M/E-PSW-FX-02 Transceiver/Media Converter |
| Network Technology | 10/100Base-TX, 100Base-FX |
| Power Consumption | 2.60 W |
| Product Series | M/E-PSW |
| Brand Name | Lantronix |
| Height | 0.9" |
| Width | 1.8" |
| Depth | 3.3" |
| Environmentally Friendly | Yes |
| Maximum Data Transfer Rate | 100 Mbit/s |
| Ethernet Technology | Fast Ethernet |
| Number of Network (RJ-45) Ports | 1 |
| Network (RJ-45) | Yes |
| Number of ST Ports | 1 |
| Media Type Supported | Optical Fiber, Twisted Pair |
| Fiber Mode Supported | Multi-mode |
| Total Number of Ports | 2 |
| TAA Compliant | Yes |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH), Restriction of Hazardous Substances (RoHS), Waste Electrical and Electronic Equipment Directive (WEEE) |
| Fiber Optic Cable Wavelength | 1300 nm |
