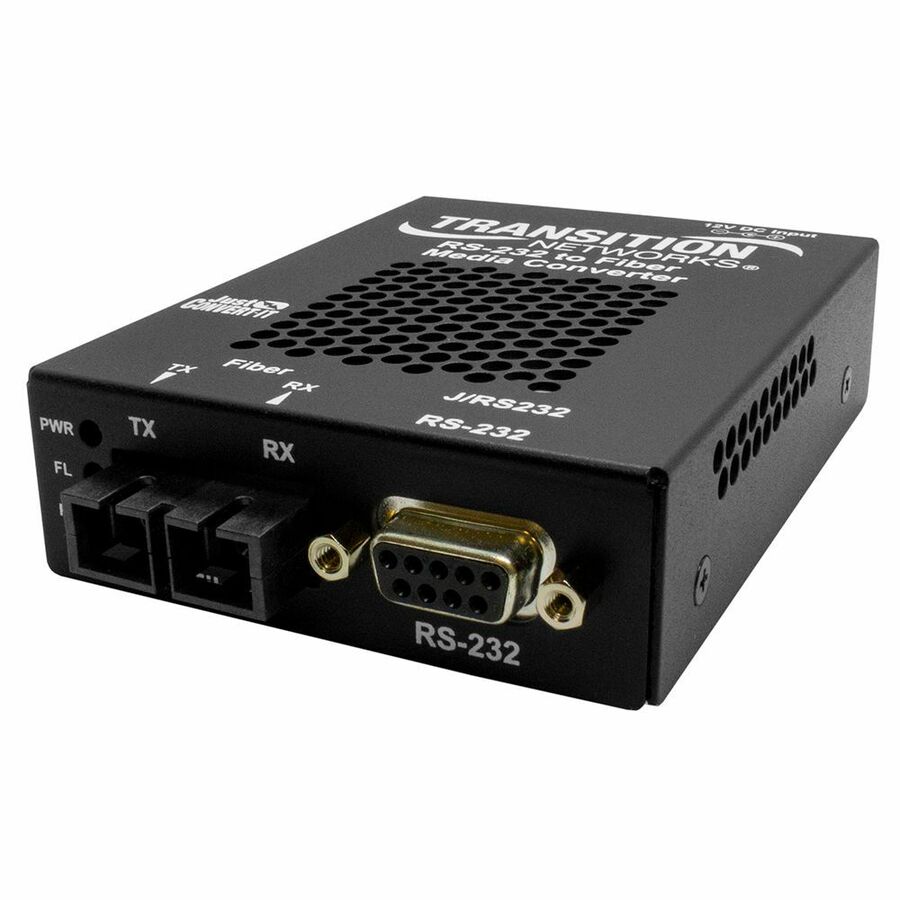

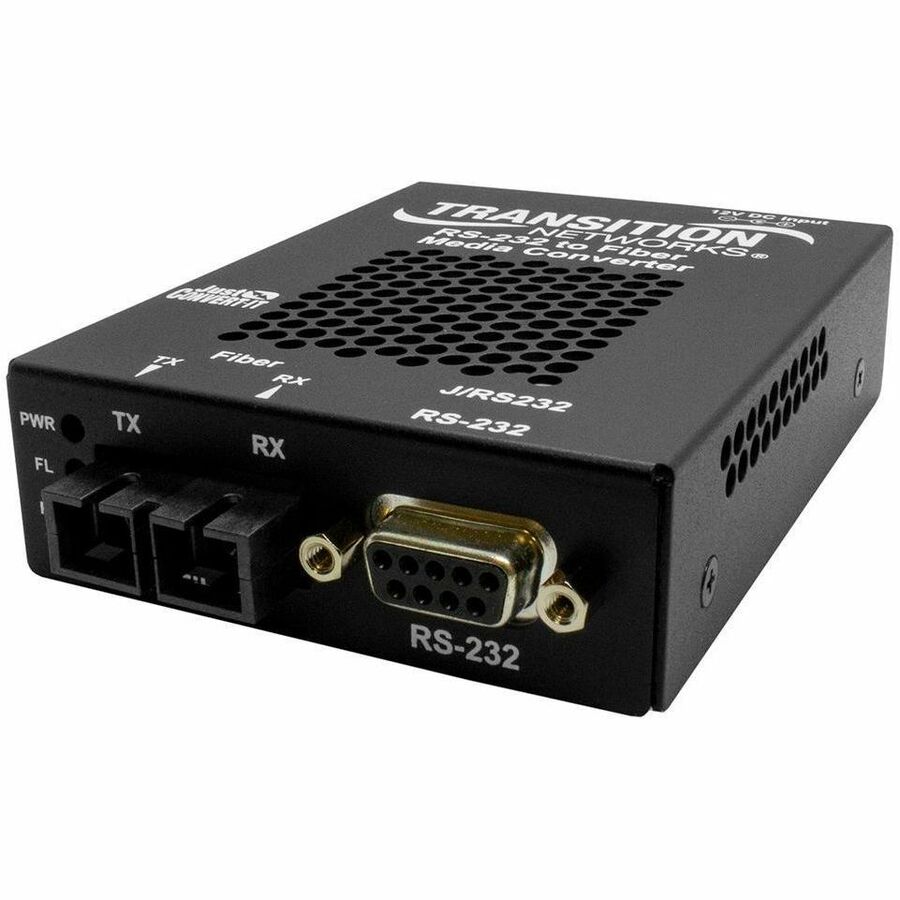

Transition Networks J/RS232-CF-01(SC) Transceiver/Media Converter
1 x SC Ports - Multi-mode - 1300 nm Fiber - 120 kbit/s - 2 km - AC/DC - Standalone, Rack-mountable, Wall Mountable, DIN Rail Mountable, Shelf Mount - TAA Compliant
- SKU
- J/RS232-CF-01(SC)-BR
- Category
- Transceivers/Media Converters
MSRP$235.00
$170.80
Save 27%Back ordered — ships when restocked.
Genuine Lantronix through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- J/RS232-CF-01(SC)-BR
- Category
- Transceivers/Media Converters
Overview
Stand-alone RS232 Media Converter RS232 Copper to Fiber
Link a remote terminal to a host computer: Connect multiple devices, such as security scanners, POS devices, remote terminals and building access/alarming systems to a host computer. Ideal for campus or business environments where remote devices can be networked in a point-to-point configuration where distances are greater than the 15 meter limitation of conventional copper serial cables.
Lantronix's serial RS232 to Fiber Media Converter is an inexpensive way to extend the distance between serial connections with the use of fiber optic cable. This converter supports full or half-duplex data transmission at speeds up to 120 Kbps. Unit and Port LEDs allow for quick status information on the converter.
Highlights
- Offered with either a male or female connector
- Full/Half-duplex transmission at speeds up to 120 Kbps
- Fiber LED lights to show link with or without data transmission
Specifications
| Package Contents |
|
|---|---|
| Product Type | Transceiver/Media Converter |
| Manufacturer Part Number | J/RS232-CF-01(SC)-BR |
| Maximum Distance Supported | 2 km |
| Power Source | AC/DC |
| Limited Warranty | Lifetime |
| Weight (Approximate) | 2 lb |
| Form Factor | Standalone, Rack-mountable, Wall Mountable, DIN Rail Mountable, Shelf Mount |
| Manufacturer | Lantronix, Inc |
| Product Model | J/RS232-CF-01(SC) |
| Product Name | J/RS232-CF-01(SC) Transceiver/Media Converter |
| Power Consumption | 3 W |
| Product Series | J/RS232 |
| Brand Name | Transition Networks |
| Height | 1" |
| Width | 3" |
| Depth | 3.9" |
| Environmentally Friendly | Yes |
| Maximum Data Transfer Rate | 120 kbit/s |
| Number of SC Ports | 1 |
| Media Type Supported | Optical Fiber |
| Fiber Mode Supported | Multi-mode |
| Total Number of Ports | 2 |
| TAA Compliant | Yes |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH), Restriction of Hazardous Substances (RoHS), Waste Electrical and Electronic Equipment Directive (WEEE) |
| Fiber Optic Cable Wavelength | 1300 nm |
