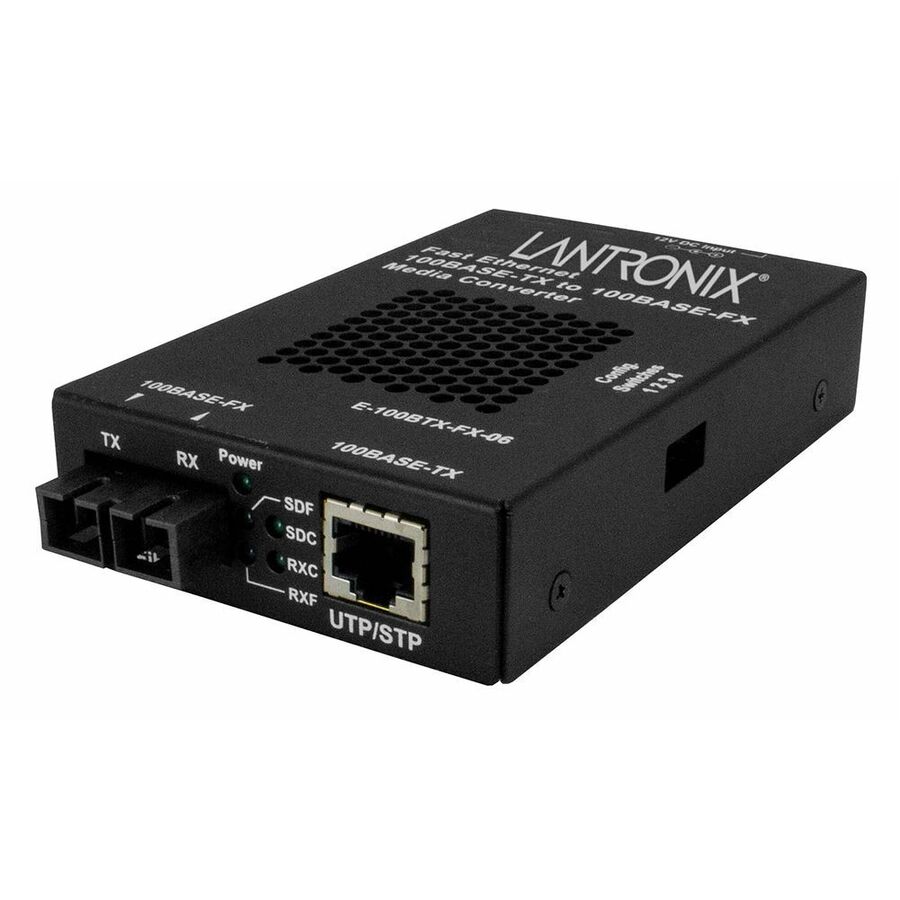

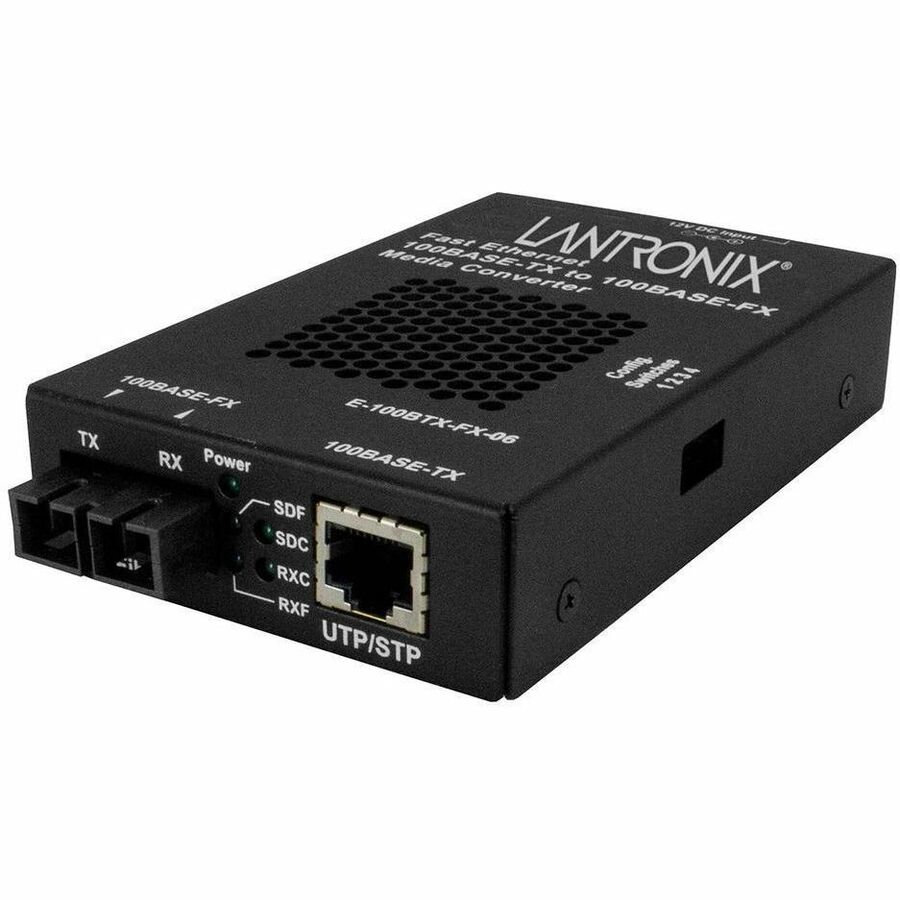

Lantronix E-100BTX-FX-06 Transceiver/Media Converter
Lantronix

Lantronix E-100BTX-FX-06 Transceiver/Media Converter

1 x Network (RJ-45) - 1 x SC Ports - Multi-mode - 1300 nm Fiber - Fast Ethernet - 100Base-FX, 100Base-TX - 100 Mbit/s - 2 km - AC/DC - Standalone, Rack-mountable, Wall Mountable, DIN Rail Mountable, Shelf Mount - TAA Compliant

SKU
E-100BTX-FX-06(SC)-LA
Category
Transceivers/Media Converters

MSRP$258.00

$188.05

Save 27%
Back ordered

Back ordered — ships when restocked.

Get a quote

Genuine Lantronix through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

SKU
E-100BTX-FX-06(SC)-LA
Category
Transceivers/Media Converters

Overview

Stand-alone Fast Ethernet Media Converter

100Base-TX to 100Base-FX

The E-100BTX-FX-06 is a stand-alone media converter that provides an interface between 100Base-TX ports and 100Base-FX ports, allowing users to integrate fiber optic cabling into 100Base-TX copper environments. Operating at Layer 1, the physical layer, data is passed through the converter at line speed, making it ideal for applications where low latency is essential.

Highlights

  • Used in pairs or as a single unit to integrate fiber into a 100base copper environment
  • Low latency, layer 1 design
  • Auto-negotiation
  • Auto-MDI/MDIX
  • Active link pass through
  • Far-End-Fault (FEF)
  • Pause
  • Automatic link restoration
  • Supports all 100Mbps SFP Modules

Specifications

Package Contents
  • E-100BTX-FX-06 Transceiver/Media Converter
  • Power Supply - Latin America
Product TypeTransceiver/Media Converter
Manufacturer Part NumberE-100BTX-FX-06(SC)-LA
Maximum Distance Supported2 km
Power SourceAC/DC
Limited WarrantyLifetime
Weight (Approximate)2 lb
Form FactorStandalone, Rack-mountable, Wall Mountable, DIN Rail Mountable, Shelf Mount
ManufacturerLantronix, Inc
Product ModelE-100BTX-FX-06
Product NameE-100BTX-FX-06 Transceiver/Media Converter
Network Technology100Base-FX, 100Base-TX
Power Consumption1.75 W
Product SeriesE-100BTX
Brand NameLantronix
Height1"
Width3"
Depth4.7"
Environmentally FriendlyYes
Maximum Data Transfer Rate100 Mbit/s
Ethernet TechnologyFast Ethernet
Number of Network (RJ-45) Ports1
Network (RJ-45)Yes
Number of SC Ports1
Media Type SupportedOptical Fiber, Twisted Pair
Fiber Mode SupportedMulti-mode
Total Number of Ports2
TAA CompliantYes
Environmental ComplianceRegistration, Evaluation, Authorization and Restriction of Chemicals (REACH), Restriction of Hazardous Substances (RoHS), Waste Electrical and Electronic Equipment Directive (WEEE)
Fiber Optic Cable Wavelength1300 nm
