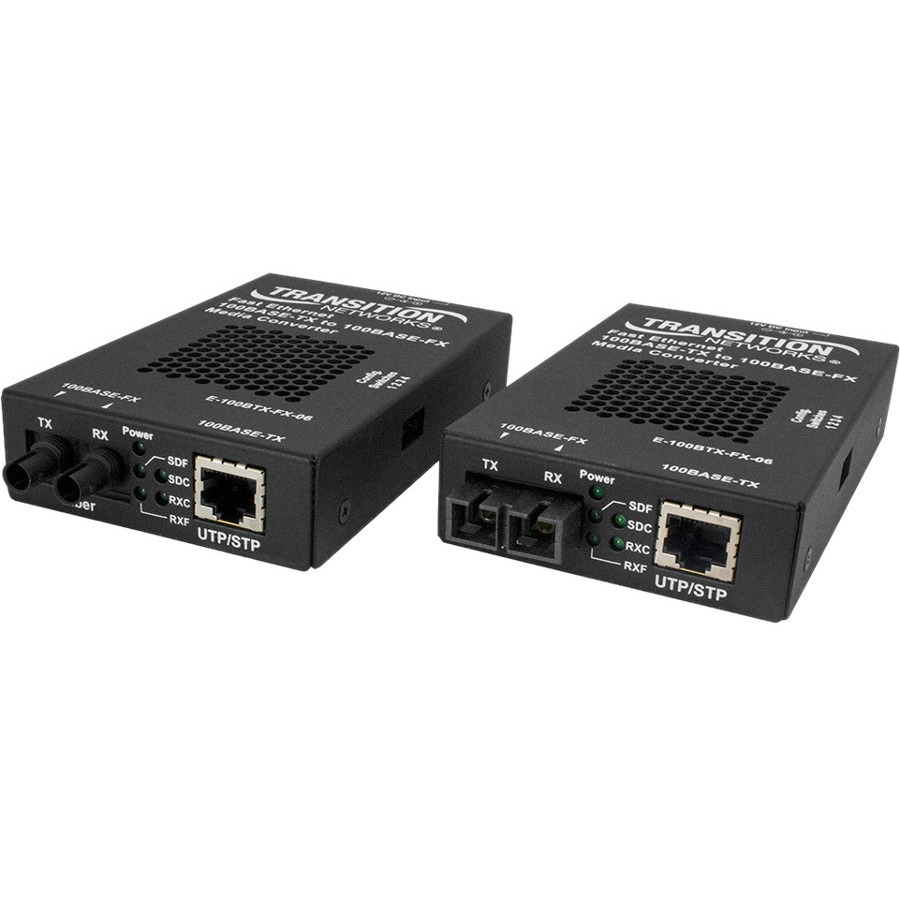

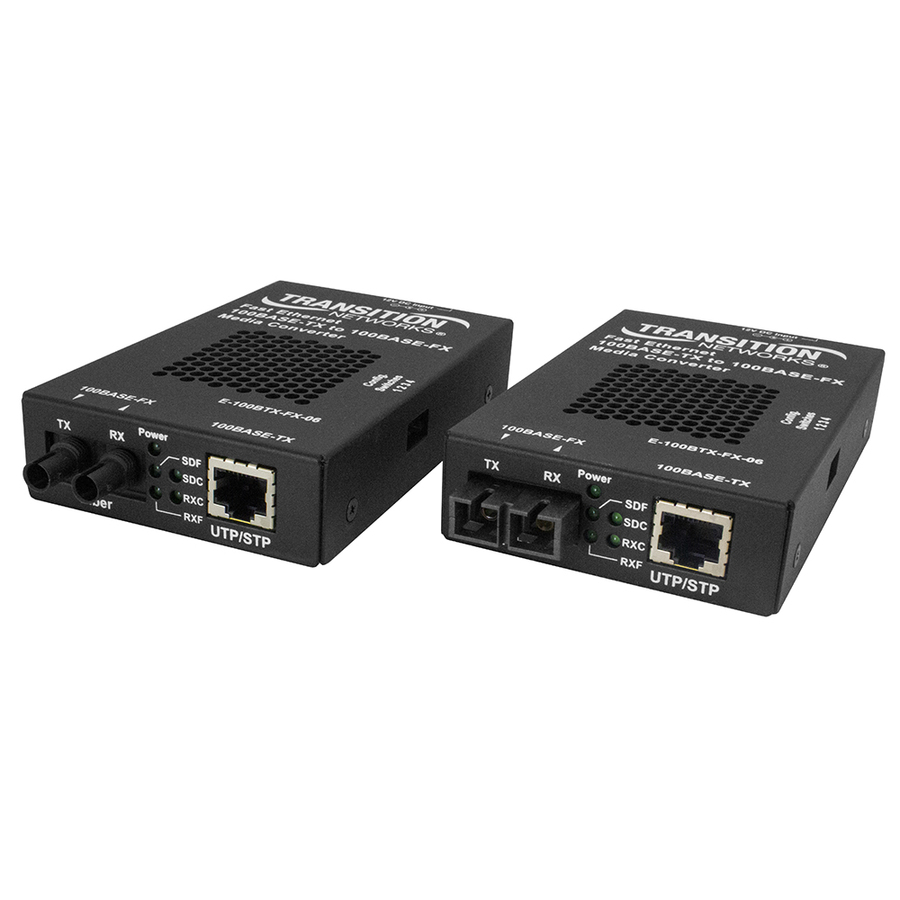

Transition Networks Stand-alone Fast Ethernet Media Converter 100Base-TX to 100Base-FX
1 x Network (RJ-45) - 1 x LC Ports - Multi-mode - 1300 nm Fiber - Fast Ethernet - 100Base-TX, 100Base-FX - 2 km - Power Supply - Standalone, Rack-mountable, Wall Mountable, DIN Rail Mountable
- SKU
- E-100BTX-FX-06(LC)-NA
- Category
- Transceivers/Media Converters
MSRP$308.00
$223.90
Save 27%Back ordered — ships when restocked.
Genuine Lantronix through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- E-100BTX-FX-06(LC)-NA
- Category
- Transceivers/Media Converters
Overview
The E-100BTX-FX-06 is a stand-alone media converter that provides an interface between 100Base-TX ports and 100Base-FX ports, allowing users to integrate fiber optic cabling into 100Base-TX copper environments. Operating at Layer 1, the physical layer, data is passed through the converter at line speed, making it ideal for applications where low latency is essential.
Highlights
- Used in pairs or as a single unit to integrate fiber into a 100base copper environment
- Low latency, layer 1 design
- Auto-negotiation
- Auto-MDI/MDIX
- Active link pass through
- Far-End-Fault (FEF)
- Pause
- Automatic link restoration
- Supports all 100Mbps SFP Modules
Specifications
| Package Contents |
|
|---|---|
| Product Type | Transceiver/Media Converter |
| Manufacturer Part Number | E-100BTX-FX-06(LC)-NA |
| Maximum Distance Supported | 2 km |
| Power Source | Power Supply |
| Limited Warranty | Lifetime |
| Weight (Approximate) | 2 lb |
| Form Factor | Standalone, Rack-mountable, Wall Mountable, DIN Rail Mountable |
| Manufacturer | Lantronix, Inc |
| Product Name | Stand-alone Fast Ethernet Media Converter 100Base-TX to 100Base-FX |
| Network Technology | 100Base-TX, 100Base-FX |
| Power Consumption | 1.75 W |
| Product Series | E-100BTX-FX-06 |
| Brand Name | Transition Networks |
| Height | 1" |
| Width | 3" |
| Depth | 4.7" |
| Environmentally Friendly | Yes |
| Ethernet Technology | Fast Ethernet |
| Number of Network (RJ-45) Ports | 1 |
| Network (RJ-45) | Yes |
| Number of LC Ports | 1 |
| Media Type Supported | Twisted Pair, Optical Fiber |
| Fiber Mode Supported | Multi-mode |
| Total Number of Ports | 2 |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS), Waste Electrical and Electronic Equipment Directive (WEEE) |
| Fiber Optic Cable Wavelength | 1300 nm |
