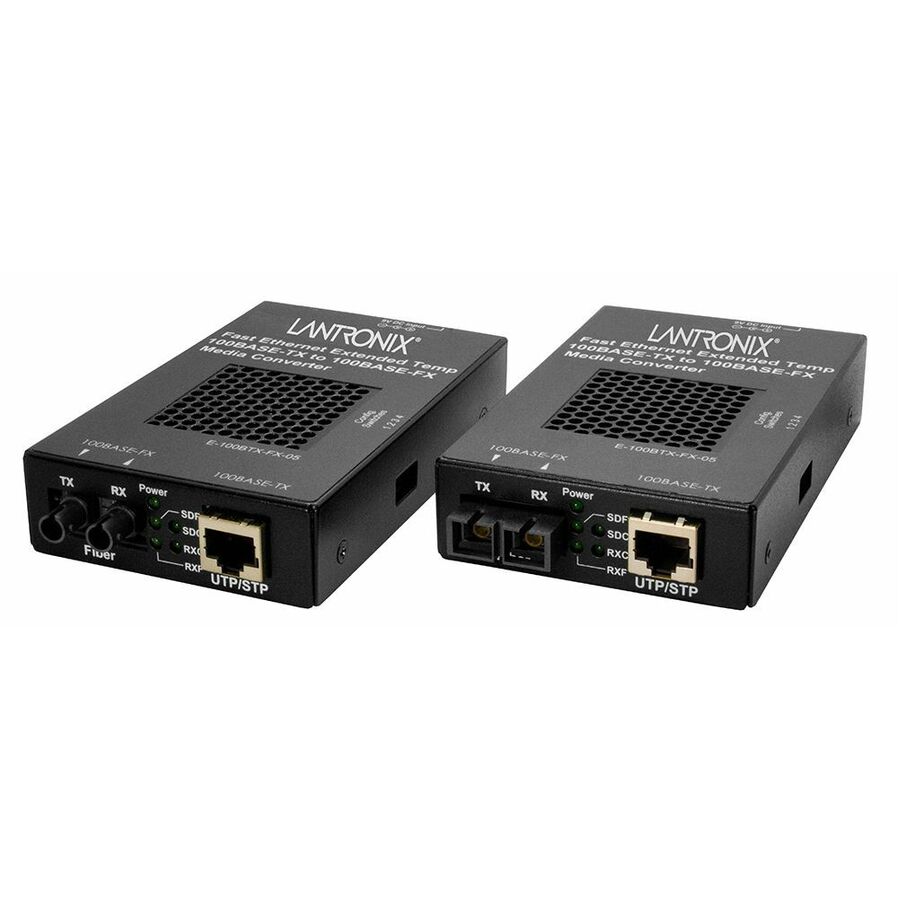

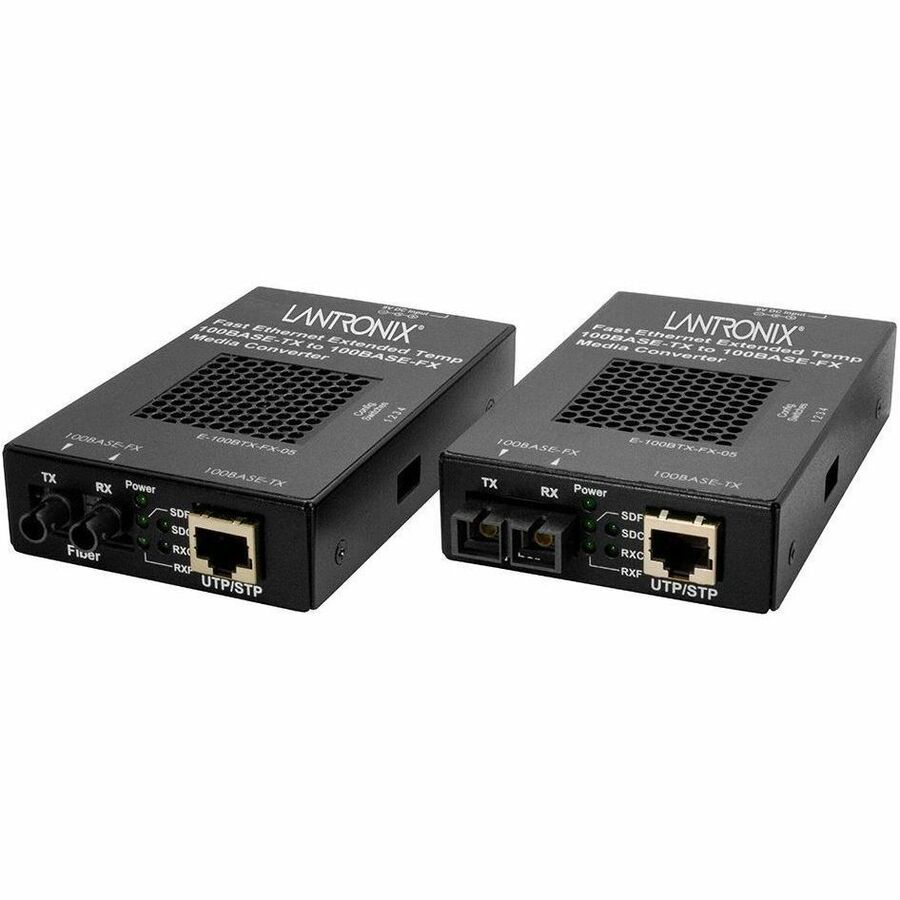

Lantronix E-100BTX-FX-05(SMHT) Transceiver/Media Converter
1 x Network (RJ-45) - 1 x SC Ports - Single-mode - 1310 nm Fiber - Fast Ethernet - 100Base-TX, 100Base-FX - 100 Mbit/s - 20 km - AC/DC - Standalone, Wall Mountable, DIN Rail Mountable, Shelf Mount - TAA Compliant
- SKU
- E-100BTX-FX-05(SMHT)-LA
- Category
- Transceivers/Media Converters
MSRP$879.00
$637.55
Save 27%Back ordered — ships when restocked.
Genuine Lantronix through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- E-100BTX-FX-05(SMHT)-LA
- Category
- Transceivers/Media Converters
Overview
Unmanaged Hardened Fast Ethernet Media Converter
(1) 100Base-TX Port + (1) 100Base-FX Port
The E-100BTX-HT Series is a Hardened Ethernet stand-alone media converter that provides an interface between 100Base-TX ports and 100Base-FX ports, allowing users to integrate fiber optic cabling into extreme 100Base-TX copper environments, by supporting an operating temperature range of -25°C to 65°C. Operating at Layer 1, the physical layer, data is passed through the converter at line speed, making it ideal for applications where low latency is essential.
Highlights
- Extended Temperature Capable: Designed to operate in environments where ambient temperatures can rise as high as 65°C (149°F)
- Auto-Negotiation
- Auto-MDI/MDIX
- Link Pass Through
- Far-End-Fault Detection
- Automatic Link Restoration
- Pause
Specifications
| Package Contents |
|
|---|---|
| Product Type | Transceiver/Media Converter |
| Manufacturer Part Number | E-100BTX-FX-05(SMHT)-LA |
| Maximum Distance Supported | 20 km |
| Power Source | AC/DC |
| Limited Warranty | Lifetime |
| Weight (Approximate) | 2 lb |
| Form Factor | Standalone, Wall Mountable, DIN Rail Mountable, Shelf Mount |
| Manufacturer | Lantronix, Inc |
| Product Model | E-100BTX-FX-05(SMHT) |
| Product Name | E-100BTX-FX-05(SMHT) Transceiver/Media Converter |
| Network Technology | 100Base-TX, 100Base-FX |
| Product Series | E-100BTX-HT |
| Brand Name | Lantronix |
| Height | 1" |
| Width | 3" |
| Depth | 4.7" |
| Environmentally Friendly | Yes |
| Maximum Data Transfer Rate | 100 Mbit/s |
| Ethernet Technology | Fast Ethernet |
| Number of Network (RJ-45) Ports | 1 |
| Network (RJ-45) | Yes |
| Number of SC Ports | 1 |
| Media Type Supported | Optical Fiber, Twisted Pair |
| Fiber Mode Supported | Single-mode |
| Total Number of Ports | 2 |
| TAA Compliant | Yes |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH), Restriction of Hazardous Substances (RoHS), Waste Electrical and Electronic Equipment Directive (WEEE) |
| Fiber Optic Cable Wavelength | 1310 nm |
