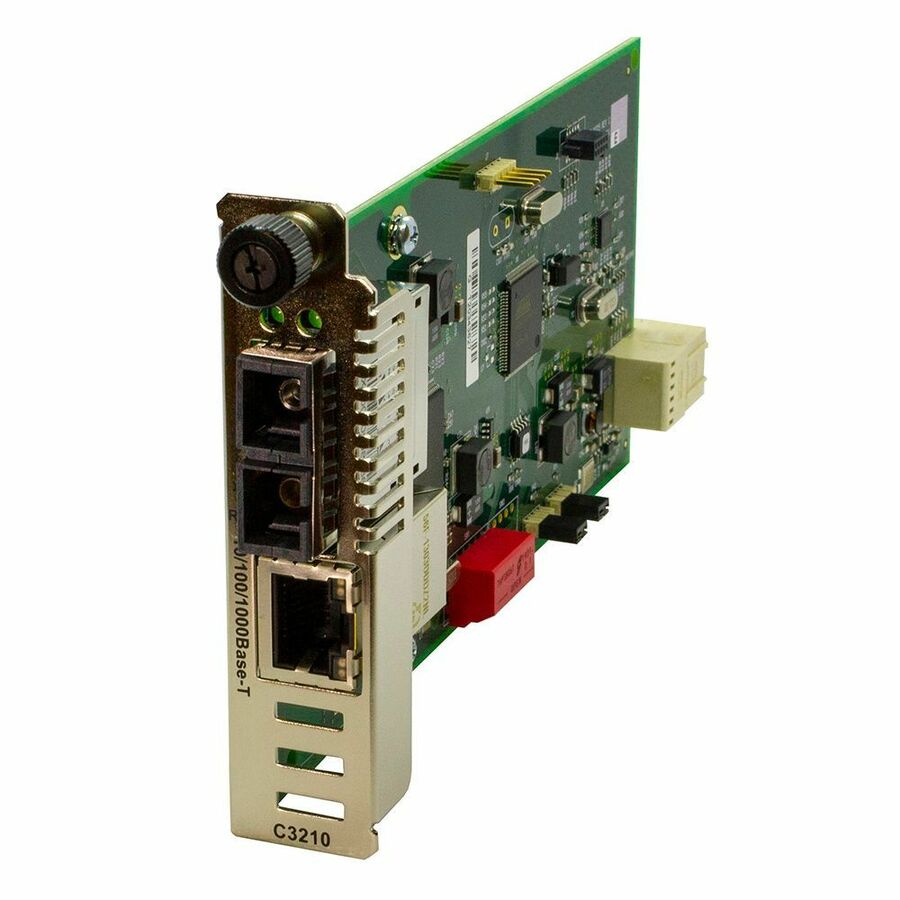

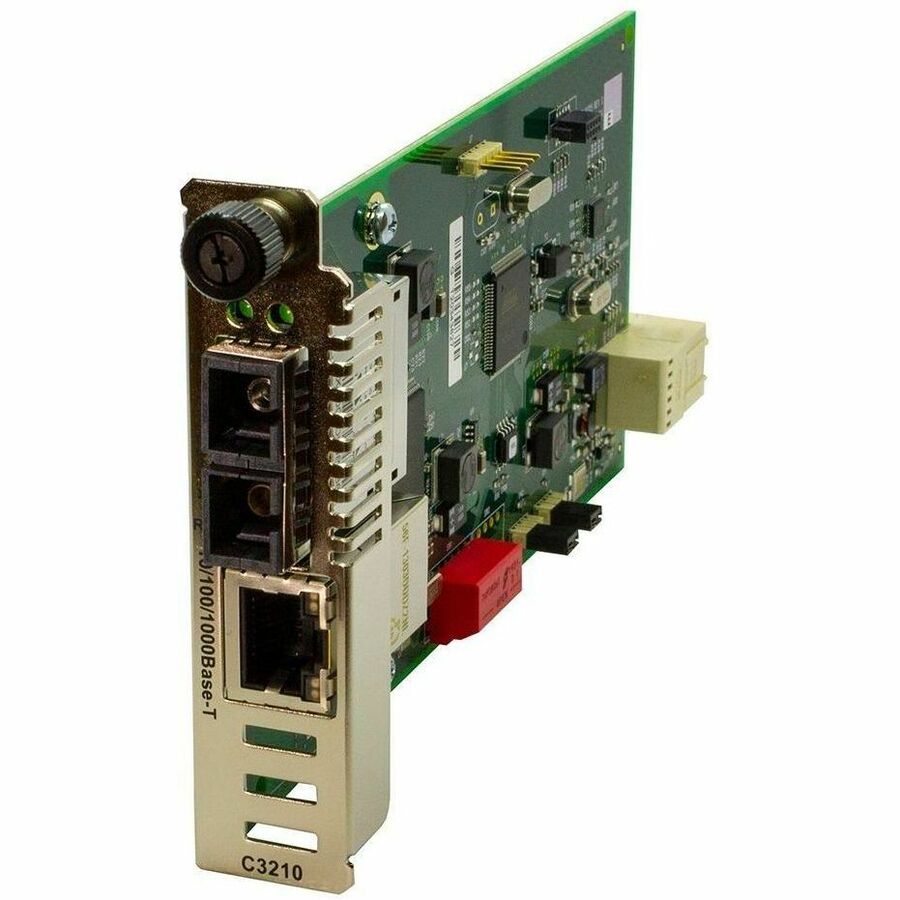

Transition Networks ION C3210-1014 Transceiver/Media Converter
1 x Network (RJ-45) - 1 x SC Ports - DuplexSC Port - Single-mode - 1310 nm Fiber - Gigabit Ethernet - 10/100/1000Base-T, 1000Base-LX - 1000 Mbit/s - 10 km - DC - TAA Compliant
- SKU
- C3210-1014
- Category
- Transceivers/Media Converters
MSRP$743.00
$539.37
Save 27%Back ordered — ships when restocked.
Genuine Lantronix through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- C3210-1014
- Category
- Transceivers/Media Converters
Overview
The ION C3210 is a media converter module that provides an interface between 10/100/1000Base-T ports and 1000Base-SX/LX ports, allowing users to integrate fiber optic cabling into 10/100/1000 copper environments. Operating at Layer 2, the data link layer, this converter not only converts copper to fiber, it also provides rate conversion allowing legacy 10/100 copper devices to connect to 1000Base-SX/LX fiber. The ION C3210 is a manageable device when installed in a managed ION chassis.
Highlights
- Copper and Fiber Auto-Negotiation
- Switch Selectable Speeds
- Auto-MDI/MDIX
- Link Pass Through
- Remote Fault Detect
- Pause
- Automatic Link Restoration
- IEEE 802.1p QoS, IPv4 TOS/DiffServ, IPv6 traffic class
- IEEE 802.1Q Port VLAN, tagging and doubling tagging (Q in Q)
- Field Upgradeable Firmware
Specifications
| Product Type | Transceiver/Media Converter |
|---|---|
| Manufacturer Part Number | C3210-1014 |
| Maximum Distance Supported | 10 km |
| Power Source | DC |
| Weight (Approximate) | 1 lb |
| Manufacturer | Lantronix, Inc |
| Product Model | C3210-1014 |
| Product Name | ION C3210-1014 Transceiver/Media Converter |
| Network Technology | 10/100/1000Base-T, 1000Base-LX |
| Power Consumption | 3.60 W |
| Product Line | ION |
| Product Series | C3210 |
| Brand Name | Transition Networks |
| Height | 3.4" |
| Width | 0.9" |
| Depth | 6.5" |
| Maximum Data Transfer Rate | 1000 Mbit/s |
| Ethernet Technology | Gigabit Ethernet |
| Number of Network (RJ-45) Ports | 1 |
| Network (RJ-45) | Yes |
| Number of SC Ports | 1 |
| Media Type Supported | Optical Fiber, Twisted Pair |
| Fiber Mode Supported | Single-mode |
| Total Number of Ports | 2 |
| SC Port Type | Duplex |
| TAA Compliant | Yes |
| Fiber Optic Cable Wavelength | 1310 nm |
