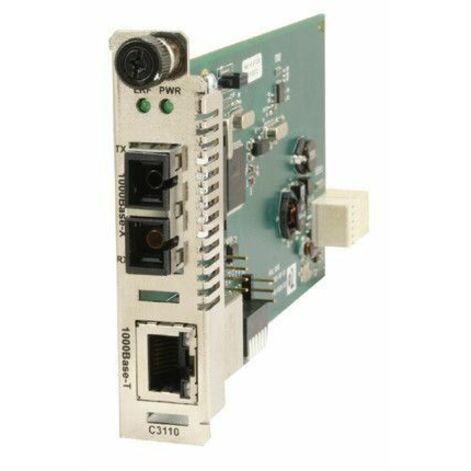

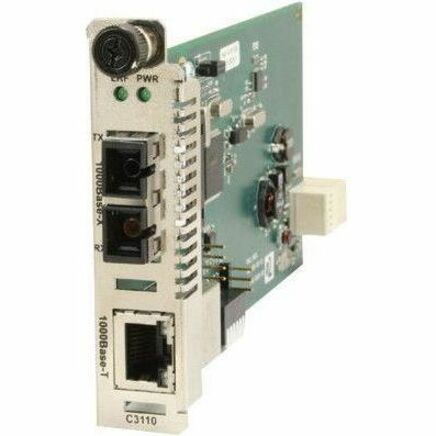

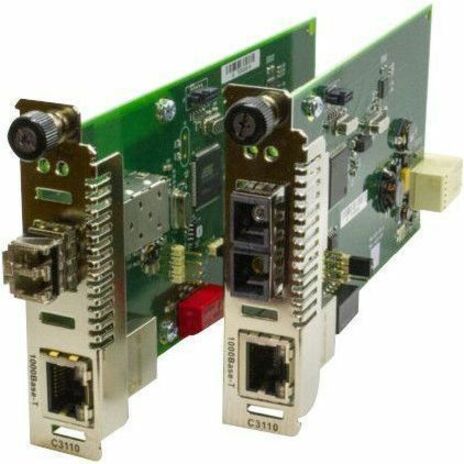

Transition Networks ION C3110-1039 Transceiver/Media Converter
1 x Network (RJ-45) - 1 x LC Ports - Multi-mode - 850 nm Fiber - Gigabit Ethernet - 1000Base-T, 1000Base-SX - 1000 Mbit/s - 0.55 km - DC - TAA Compliant
- SKU
- C3110-1039
- Category
- Transceivers/Media Converters
MSRP$534.00
$387.54
Save 27%Back ordered — ships when restocked.
Genuine Lantronix through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- C3110-1039
- Category
- Transceivers/Media Converters
Overview
The ION C3110 is a media converter module that provides an interface between 1000Base-T ports and 1000Base-SX/LX ports, allowing users to integrate fiber optic cabling into 1000Base-T copper environments.
Operating at Layer 1, the physical layer, data is passed through the converter at line speed, making it ideal for applications where low latency is essential. The ION C3110 is a manageable device when installed in a managed ION chassis.
Highlights
- Copper and Fiber Auto-Negotiation
- Auto-MDI/MDIX on TP port
- Transparent Link Pass Through
- Remote Fault Detect
- Loopback
- Pause
- Automatic Link Restoration
- Field Upgradeable Firmware
- Can be used in any ION Platform Chassis
- Cost effective fiber deployment by pairing C3110 with lower cost 1000Base-T switches, offering the benefits of fiber without the high costs
Specifications
| Product Type | Transceiver/Media Converter |
|---|---|
| Manufacturer Part Number | C3110-1039 |
| Maximum Distance Supported | 0.55 km |
| Power Source | DC |
| Limited Warranty | Lifetime |
| Weight (Approximate) | 1 lb |
| Manufacturer | Lantronix, Inc |
| Product Model | C3110-1039 |
| Product Name | ION C3110-1039 Transceiver/Media Converter |
| Network Technology | 1000Base-T, 1000Base-SX |
| Power Consumption | 3.60 W |
| Product Line | ION |
| Product Series | C3110 |
| Brand Name | Transition Networks |
| Height | 3.4" |
| Width | 0.9" |
| Depth | 6.5" |
| Maximum Data Transfer Rate | 1000 Mbit/s |
| Ethernet Technology | Gigabit Ethernet |
| Number of Network (RJ-45) Ports | 1 |
| Network (RJ-45) | Yes |
| Number of LC Ports | 1 |
| Media Type Supported | Optical Fiber, Twisted Pair |
| Fiber Mode Supported | Multi-mode |
| Total Number of Ports | 2 |
| TAA Compliant | Yes |
| Fiber Optic Cable Core/Cladding Specification | 62.5/125 µm, 50/125 µm |
| Fiber Optic Cable Wavelength | 850 nm |
