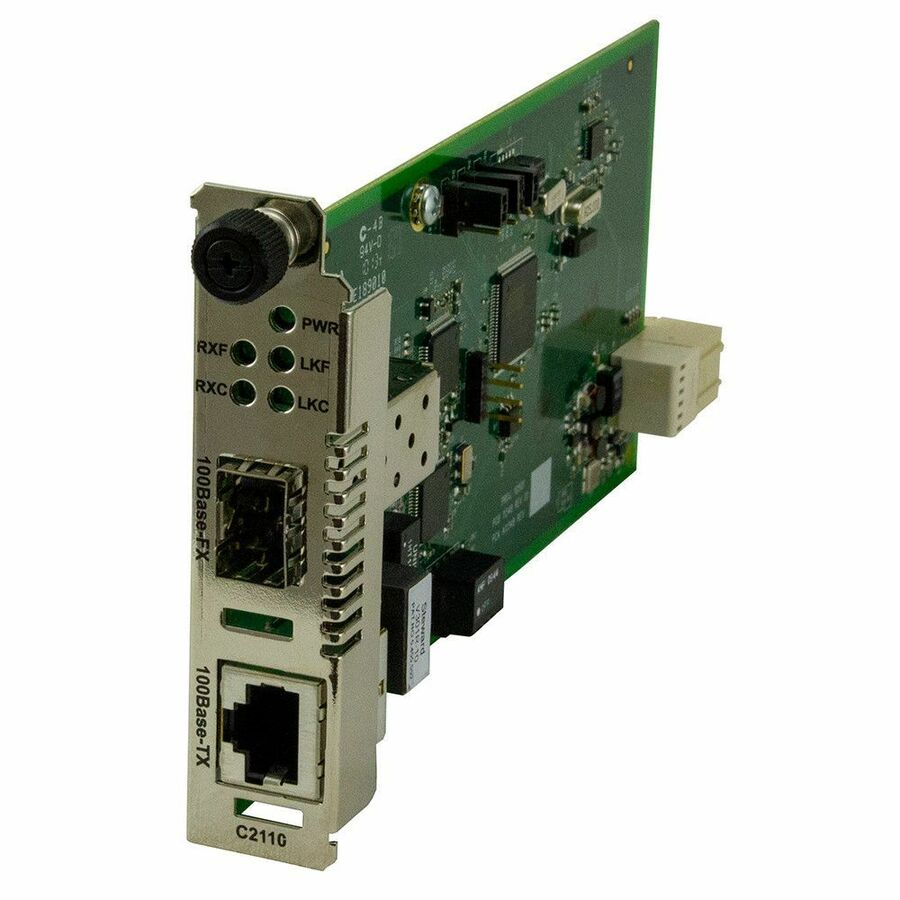

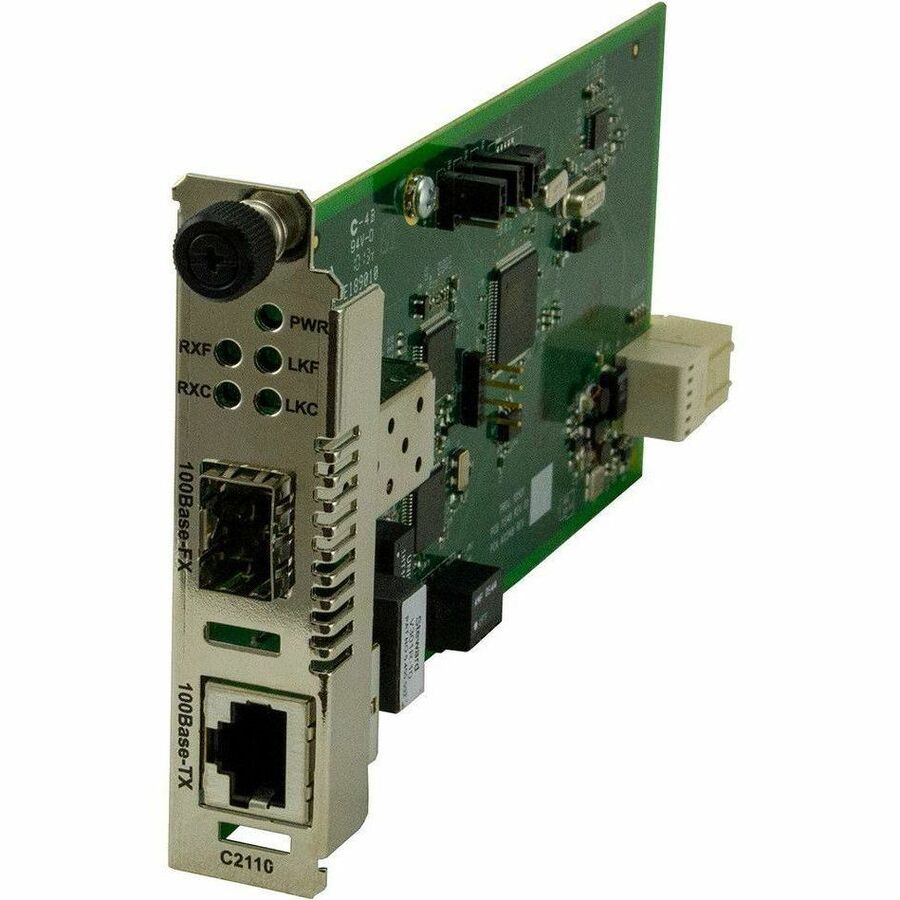

Transition Networks ION C2110-1040 Transceiver/Media Converter
1 x Network (RJ-45) - Fast Ethernet - 100Base-TX, 100Base-X - 100 Mbit/s - 0.10 km - 1 x Expansion Slots - SFP - 1 x SFP Slots - DC - TAA Compliant
- SKU
- C2110-1040
- Category
- Transceivers/Media Converters
MSRP$241.00
$175.10
Save 27%Back ordered — ships when restocked.
Genuine Lantronix through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- C2110-1040
- Category
- Transceivers/Media Converters
Overview
The ION C2110 is a media converter module that provides an interface between 100Base-TX ports and 100Base-FX ports, allowing users to integrate fiber optic cabling into 100Base-TX copper environments. Operating at Layer 1, the physical layer, data is passed through the converter at line speed, making it ideal for applications where low latency is essential. The ION C2110 is a manageable device when installed in a managed ION chassis.
Highlights
- Auto-Negotiation of speed and duplex on TP port
- Auto-MDI/MDIX on TP port
- Link Pass Through (LPT)
- Far-End-Fault (FEF) detection
- Automatic Link Restoration
- Pause advertisement
- Field Upgradeable Firmware
- Can be used in any ION Platform Chassis
- Standards based, will link with any Standard 100Base-TX and any Standard 100Base-FX ports
Specifications
| Product Type | Transceiver/Media Converter |
|---|---|
| Manufacturer Part Number | C2110-1040 |
| Maximum Distance Supported | 0.10 km |
| Power Source | DC |
| Limited Warranty | Lifetime |
| Weight (Approximate) | 1 lb |
| Manufacturer | Lantronix, Inc |
| Product Model | C2110-1040 |
| Product Name | ION C2110-1040 Transceiver/Media Converter |
| Network Technology | 100Base-TX, 100Base-X |
| Power Consumption | 2.50 W |
| Product Line | ION |
| Product Series | C2110 |
| Brand Name | Transition Networks |
| Expansion Slot Type | SFP |
| Height | 3.4" |
| Width | 0.9" |
| Depth | 6.5" |
| Maximum Data Transfer Rate | 100 Mbit/s |
| Ethernet Technology | Fast Ethernet |
| Number of Network (RJ-45) Ports | 1 |
| Network (RJ-45) | Yes |
| Number of SFP Slots | 1 |
| Media Type Supported | Twisted Pair, Optical Fiber |
| Total Number of Ports | 1 |
| Total Number of Expansion Slots | 1 |
| TAA Compliant | Yes |
