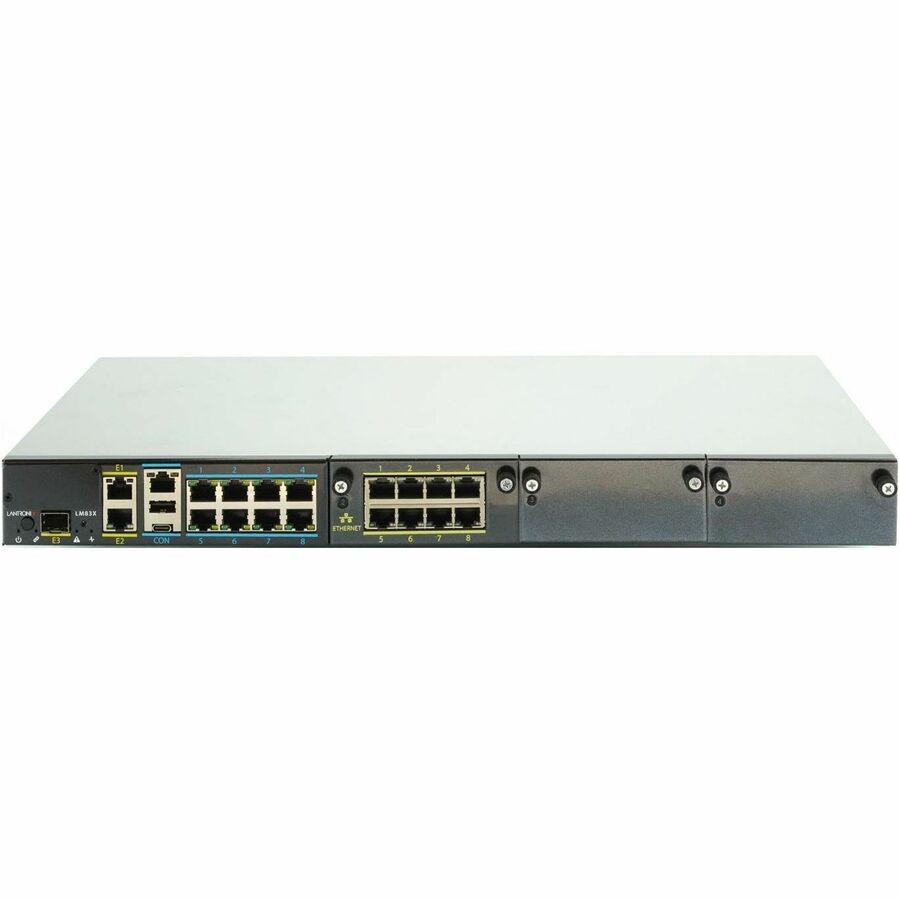

LM83X Console Server with 8 total serial ports & 8 Ethernet ports, dual DC power

AI-Driven Out-of-Band Management for Enterprise Scalability & Performance

The Lantronix LM83X is a modular platform designed to act independently from the network to remotely monitor, manage and control up to 104 devices including a managed power supply.

The LM Series

An advanced out-of-band solution that provides access, monitoring and control of network infrastructure that operates whether the network is up or down.

• Secure | The LM Series are closed appliances, meaning the underlying OS is locked down. We work with your TACACS/Radius and have several options for secure connections.

• Automated | Detect, analyze and take data-driven runbook actions rapidly and automatically

• Resilient | If the primary network link goes down, the LM Series can fail-over site traffic to the out-of-band connection. With automated testing of out-of-band links and LM "heartbeats," Lantronix ensures out-of-band is available when you need it.

• Scalable | Three expansion bays let you customize your LM83X with up to 104 serial ports, or a combination of serial and dedicated Ethernet ports. An LCD keypad is also available.

Zero Touch Deployment

New, factory fresh LM Series appliances can use DHCP and/or DNS to automatically find and register themselves with the Lantronix Control Center (LCC), allowing network engineers to easily provision them via the LCC, eliminating the need to stage configurations or send technical personal to remote sites for deployment purposes.

Automatic Configuration of NTP and DNS Servers via DHCP

Primary and secondary NTP and DNS servers are automatically set per those delivered in a DHCP Offer if NTP and DNS servers are not already configured. Any NTP and DNS servers configured via the CLI or the UCC will override server information delivered via DHCP.

Automatically Detect and Configure Internal Modems

An internal modem is automatically detected and configured if one is present - this includes setting the modem make, model and serial bit rate for all internal modems. PPP settings will be automatically configured for the case of a cellular modem.

Lantronix Software Services

Control Center - enables advanced out-of-band management by providing a centralized point of control for all LM Series appliances and managed devices deployed throughout your distributed IT environment.

Connectivity Services - North American and global cellular data plans and VPN security with an easy-to-use cloud platform to manage your SIMs and services.
