Tripp Lite by Eaton 10-Port Industrial-Grade USB 3.x (5Gbps) Hub - 20 kV ESD Immunity Metal Housing Mountable

Rugged industrial-grade hub adds 10 USB 3.0 ports to your computer for connecting industrial printers, sensors and other USB devices.

• Adds barcode scanner, serial device, sensor-up to 10 devices-to your host computer

• Supports USB 3.0 SuperSpeed rates up to 5 Gbps to ensure fast data transfers

• Rugged metal housing designed to withstand harsh warehouse and factory environments

• ESD protection to ±20 kV cuts potential static damage to your connected peripherals

• Plug-and-play operation with no software required for easy, immediate installation

• 3-year limited warranty

Features

Industrial-Grade USB 3.0 Hub Adds up to 10 USB Devices to Your Computer

This 10-port USB 3.0 hub with a heavy-duty all-metal housing connects as many as 10 USB devices, such as external hard drives, industrial printers, barcode scanners, serial devices and sensors, to your host PC, server or thin client. The durable metal housing withstands harsh physical conditions in industrial and commercial applications, such as factories, construction sites, supply rooms and warehouses.

Supports SuperSpeed USB 3.0 to Ensure Fast Data Transfers

The hub supports USB 3.0 SuperSpeed data transfer rates up to 5 Gbps, which is 10 times faster than USB 2.0. It is especially recommended for high-bandwidth USB 3.0 devices, such as security cameras and high-resolution webcams. Each downstream port provides up to 900 mA for charging mobile devices. The hub is backward compatible with previous USB standards, so you can also continue using older peripherals while getting maximum performance from current devices.

Protects Your Devices against Electrostatic Discharge (ESD) and Overcurrent

Machines on the shop floor can generate electrostatic discharges, wiping out data and damaging sensitive electronics. This 10-port hub includes ESD protection to ±20 kV, reducing potential static damage to your connected peripherals. This feature works in tandem with ±2.5kV-per-port overcurrent protection to safeguard your connected devices against damage and data loss from power surges.

Plug-and-Play Hub Offers Flexible Power and Mounting Options

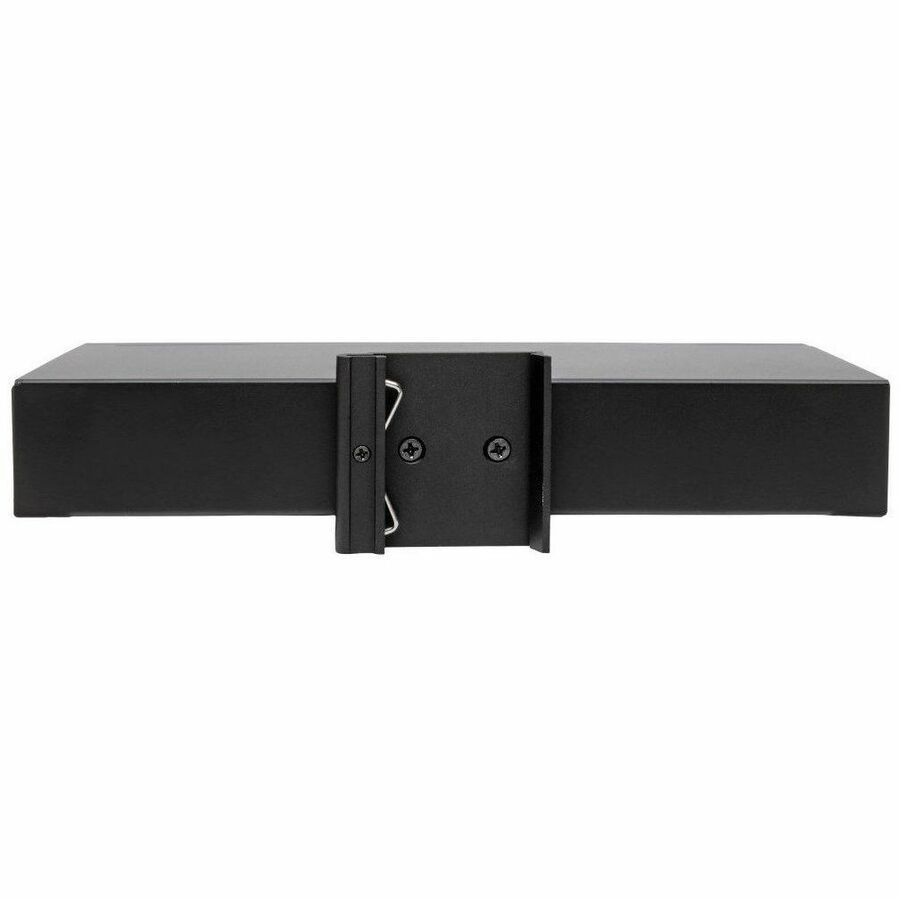

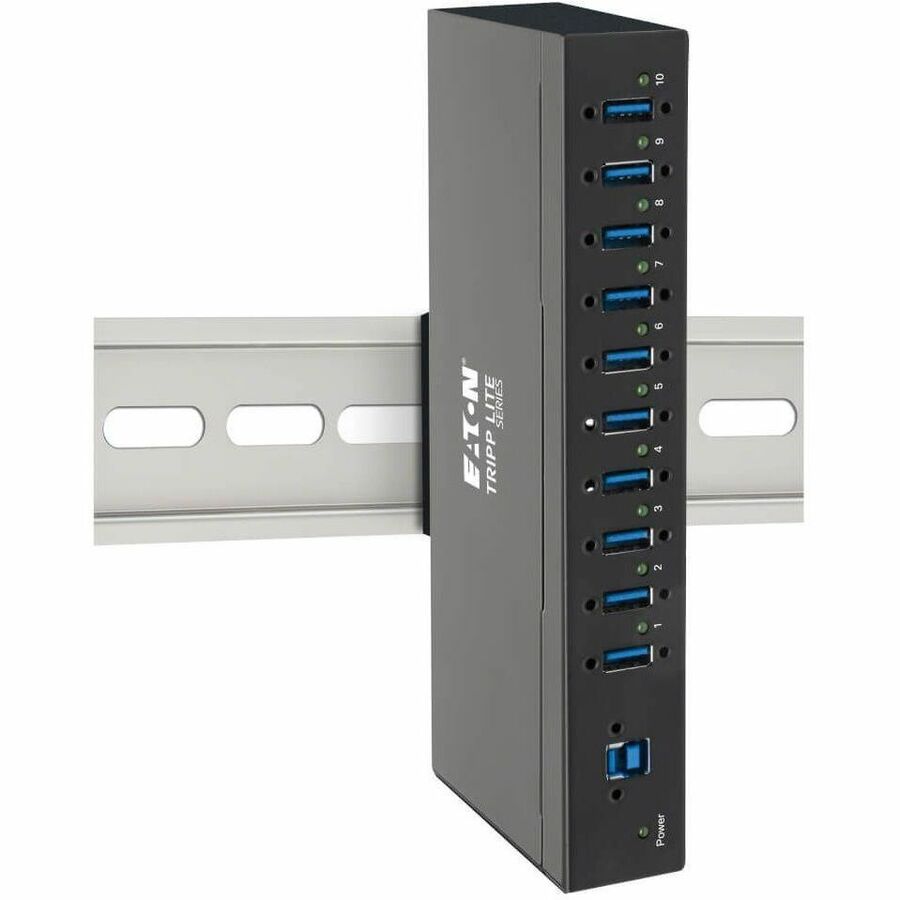

The U360-010-IND requires no software or drivers to download and install. It draws power from the connected computer through the included USB cable. You can also plug the included 3-wire terminal block into the hub to draw power from a power terminal, or connect a compatible 9-40V DC LPS power supply (not included) to a standard AC outlet. The hub mounts easily to a wall or DIN rail using the included hardware.

More from the Manufacturer

Tripp Lite U360-010 Product Summary

Provides extra USB 3.0 ports for a desktop or notebook computer in home, business and education settings

10 USB 3.0 A (female) ports for data transfer and mobile device charging

High-speed data transfer rates up to 5 Gbps

BC 1.2 charging ports provide 1.5A of charging per port (2.4A when connected to AC power)

Works with all major operating systems

Overcurrent protection safeguards connected devices against damage or data loss

Plug-and-play; no special software or complicated setup procedures

Compact design

Charges Smartphones, Tablets and Other Mobile Devices Quickly

Each of the U360-010’s ports delivers 1.5 amps of power for charging mobile devices. When connected to AC power, they provide up to 5V 2.4A of power (NOTE: total power available is dependent on external power supply). That’s more than enough power to charge your smartphone, tablet or even your MacBook Pro.

Optimizes Power Efficiency

USB 3.0 SuperSpeed uses only a fraction of the power of USB 2.0 to transfer the same amount of data—and during charging applications, this hub delivers twice the power of USB 2.0. The U360-010 has lower active and idle power requirements and does not require device polling.

Provides Overcurrent and Overvoltage Protection for Connected Devices

To safeguard your connected devices against damage or data loss due to overvoltages, the U360-010 features per-port overcurrent and overvoltage protection.
