Tripp Lite by Eaton External 48V 2U Rack/Tower Battery Pack for select UPS Systems (BP48V27-2US)
48 V DC - 4 Year Minimum Battery Life - 6 Year Maximum Battery Life
- SKU
- BP48V27-2US
- Category
- UPS Batteries
MSRP$1,979.02
$1,249.91
Save 37%In stock: 58
Genuine Eaton through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- BP48V27-2US
- Category
- UPS Batteries
Overview

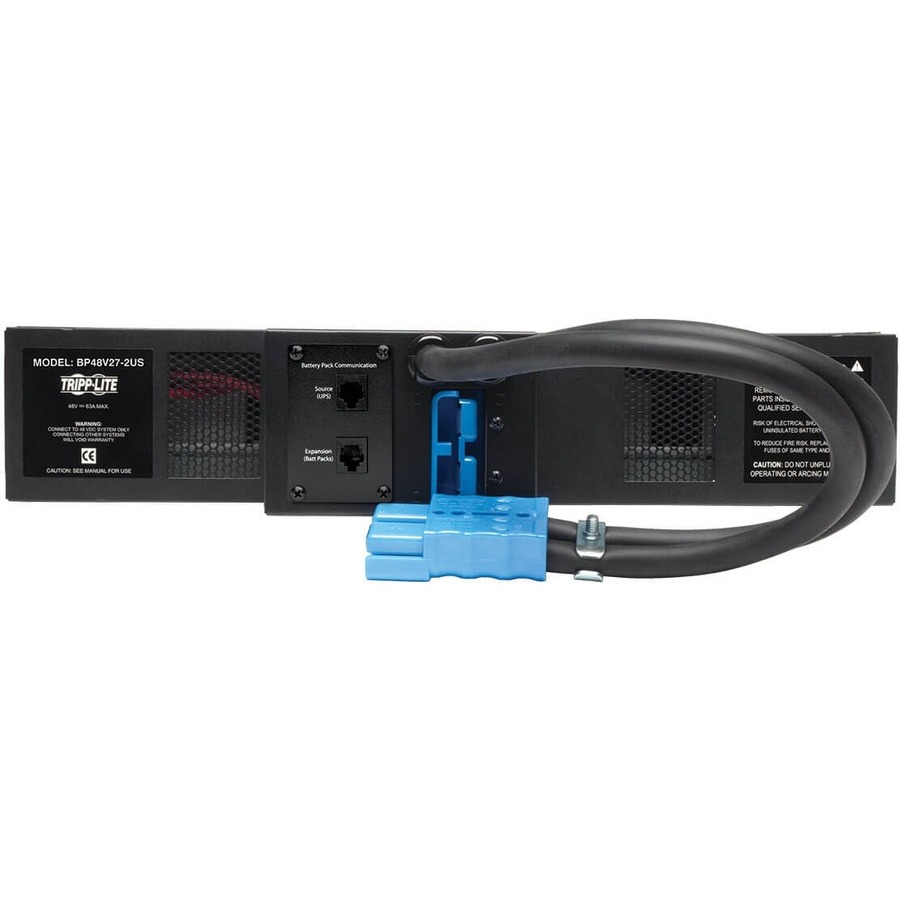

BP48V27-2US rackmount external battery pack offers extended battery runtime when used in conjunction with expandable 48V Tripp Lite rackmount UPS systems. Includes heavy gauge cabling with high current DC connector for safe, simple installation. Included daisychain connector enables the connection of additional compatible 48V external battery packs to the host UPS. Included mounting accessories support 2U rackmount installation in 4 post racks. Options for 2-point front-rail mounting, 2 post center-mounting and wallmount installation available.
Compatible with these UPS Systems - SM2200RMDVTAA, SMART1500CRMXL, SMART2200CRMXL, SMART2200RMXL2U, SMART2200RMXL2UP, SMART2200RMXLN, SMART2600RM2U, SMART3000CRMXL, SMART3000RM2U, SMART3000RM2UN, SMART3000RMXL2U, SMART3000RMXLN, SMART3000VS, SMART5000RT3U, SMART5000XFMRXL, SMARTINT3000VS, SMX2200XLRT2U, SMX3000XLRT2UA, SMX5000XLRT3U, SU1500RTXL2UA, SU1500RTXLCD2U, SU2200RTXL2UA, SU2200RTXLCD2U and other Tripp Lite UPS systems that specify the use of this battery pack. More from the Manufacturer
An Ideal Solution for Extending UPS Battery Runtime
Tripp Lite’s BP48V27-2US Rack/Tower External Battery Pack extends battery runtime when used with compatible Tripp Lite rackmount and tower UPS systems. The BP48V27-2US includes heavy-gauge cabling with a high-current DC connector for safe, simple installation. An included daisy-chain connector allows the addition of multiple compatible 48V external battery packs to the host UPS. The BP48V27-2US comes with mounting accessories that support 2U rackmount installation in 4-post racks. Optional accessories are available for 2-post mounting, wall mounting and upright tower installation. For peace of mind, the BP48V27-2US comes backed by a 2-year warranty and has a green, RoHS-compliant design.
UPS Compatibility
The BP48V27-2US is compatible with the following expandable Tripp Lite UPS systems: SM2200RMDVTAA, SMART1500CRMXL, SMART2200CRMXL, SMART2200RMXL2U, SMART2200RMXL2UP, SMART2200RMXLN, SMART2600RM2U, SMART3000CRMXL, SMART3000RM2U, SMART3000RM2UN, SMART3000RMXL2U, SMART3000RMXLN, SMART3000VS, SMART5000RT3U, SMART5000XFMRXL, SMARTINT3000VS, SMX2200XLRT2U, SMX3000XLRT2UA, SMX5000XLRT3U, SU1500RTXL2UA, SU2200RTXL2UA and other UPS systems that specify the use of this battery pack.
2-Year Warranty and Environmentally Responsible Design
The BP48V27-2US comes backed by a 2-year warranty and is manufactured in compliance with strict RoHS specifications, reflecting Tripp Lite’s commitment to environmental responsibility.
Warranty
Limited Warranty: 2 Year
About Eaton
Eaton is an intelligent power management company dedicated to improving the quality of life and protecting the environment for people everywhere. We are guided by our commitment to do business right, to operate sustainably and to help our customers manage power ─ today and well into the future. By capitalizing on the global growth trends of electrification and digitalization, we're accelerating the planet's transition to renewable energy and helping to solve the world's most urgent power management challenges.
Highlights
- Extends the runtime of compatible 48V Tripp Lite UPS Systems
- Included daisychain connector supports the addition of multiple compatible external battery packs

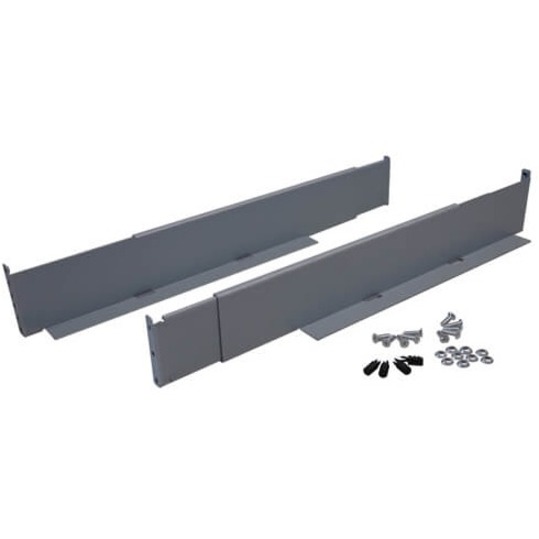

- Supports 2U rackmount installation; 4 post installation accessories included
- Options for 2 post rackmount and wallmount installation available
Specifications
| Battery Chemistry | Lead Acid |
|---|---|
| Package Contents |
|
| Product Type | External Battery Pack |
| Compatibility | Tripp Lite UPS Systems: SM2200RMDVTAA SMART1500CRMXL SMART2200CRMXL SMART2200RMXL2U SMART2200RMXL2UP SMART2200RMXLN SMART2600RM2U SMART3000CRMXL SMART3000RM2U SMART3000RM2UN SMART3000RMXL2U SMART3000RMXLN SMART3000VS SMART5000RT3U SMART5000XFMRXL SMARTINT3000VS SMX2200XLRT2U SMX3000XLRT2UA SMX5000XLRT3U SU1500RTXL2UA SU1500RTXLCD2U SU2200RTXL2UA SU2200RTXLCD2U |
| Manufacturer Part Number | BP48V27-2US |
| Limited Warranty | 2 Year |
| Output Voltage | 48 V DC |
| Weight (Approximate) | 88.07 lb |
| Manufacturer | Eaton Corporation |
| Product Model | BP48V27-2US |
| Product Name | 2U External 48V Rack/Tower Battery Pack for Select Tripp Lite UPS Systems |
| Brand Name | Tripp Lite series |
| Country of Origin | Vietnam |
| Height | 3.4" |
| Width | 17.3" |
| Depth | 22.6" |
| Environmentally Friendly | Yes |
| Maximum Battery Life | 6 Year |
| Minimum Battery Life | 4 Year |
| Product Color | Black |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
