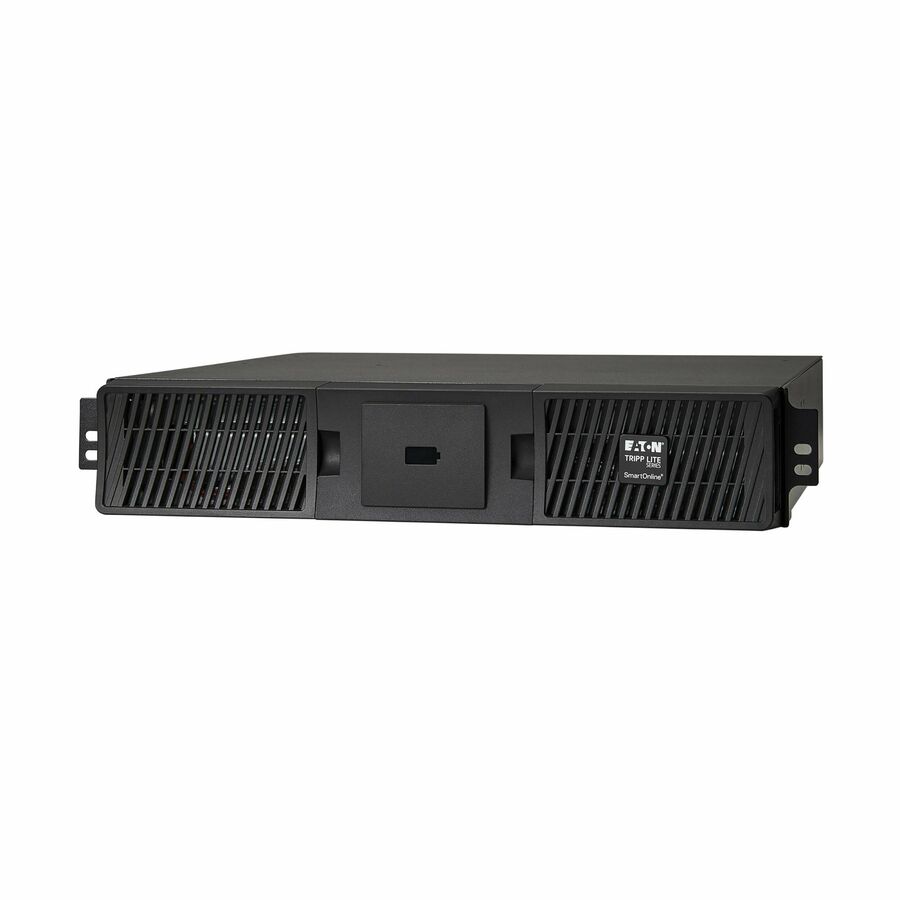

Eaton Tripp Lite Series 48V Extended Battery Module (EBM) for SmartOnline UPS Systems, 2U Rack/Tower, TAA
48 V DC - Lead Acid - Valve-regulated/User Replaceable - Hot Swappable - TAA Compliant
- SKU
- BP48RT2UTAA
- Category
- UPS Batteries
MSRP$1,424.00
$899.36
Save 37%In stock: 14
Genuine Eaton through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- BP48RT2UTAA
- Category
- UPS Batteries
Overview
Provides extended runtime for compatible UPS systems in education, healthcare, military, government and other network applications requiring TAA compliance.
Features | Backup Battery Module Gives Your Compatible UPS System Extended Runtime
The valve-regulated lead-acid (VRLA) BP48RT2UTAA offers extended battery runtime when used in conjunction with the SU1500RTXLCD2UTAA SmartOnline UPS system. It can also be daisy-chained for a maximum of four matching battery packs to deliver even longer extended-run operation. Heavy-gauge cabling with high-current DC connectors is included for safe, simple installation.
Versatile Installation Options
You can mount the BP48RT2UTAA in 2U of space in an EIA-standard 19-inch rack using the included 4- post rail kit or an optional 2-post rail kit (RK2PC, sold separately). You can also adapt it for tower installation using the UPS system's support stands.
TAA-Compliant for GSA Schedule Purchases
The BP48RT2UTAA is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.
Warranty
Limited Warranty: 2 Year
About Eaton
Eaton is an intelligent power management company dedicated to improving the quality of life and protecting the environment for people everywhere. We are guided by our commitment to do business right, to operate sustainably and to help our customers manage power ─ today and well into the future. By capitalizing on the global growth trends of electrification and digitalization, we're accelerating the planet's transition to renewable energy and helping to solve the world's most urgent power management challenges.
Highlights
- Connects to SU1500RTXLCD2UTAA SmartOnline® UPS system to add critical runtime
- Includes heavy-gauge battery cabling with high-current 48V DC connectors
- Daisy-chain connector supports additional battery packs for even longer runtime
- Supports 2U rack mounting or upright tower installation with UPS system's accessories
- Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases
- 2-year limited warranty
Specifications
| Battery Chemistry | Lead Acid |
|---|---|
| Package Contents |
|
| Product Type | Battery Unit |
| Compatibility | Tripp Lite SmartOnline SU1500RTXLCD2UTAA UPS System |
| Hot Swappable | Yes |
| Manufacturer Part Number | BP48RT2UTAA |
| Limited Warranty | 2 Year |
| Output Voltage | 48 V DC |
| Weight (Approximate) | 59.50 lb |
| Manufacturer | Eaton Corporation |
| Product Model | BP48RT2UTAA |
| Product Name | BP48RT2UTAA Battery Unit |
| Brand Name | Tripp Lite series |
| Country of Origin | Taiwan |
| Height | 3.4" |
| Width | 17.3" |
| Depth | 17.7" |
| Battery Size | Proprietary Battery Size |
| Minimum Operating Temperature | 32°F (0°C) |
| Maximum Operating Temperature | 104°F (40°C) |
| Battery Characteristics | Valve-regulated/User Replaceable |
| TAA Compliant | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS), Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
