Eaton Tripp Lite Series ±120VDC External Battery Cabinet for Select 10-100K S3M-Series 3-Phase UPS - Requires 40x 65Ah Batteries (Not Included)
65000 mAh - 120 V DC - Lead Acid - Valve-regulated
- SKU
- BP240V65LNIB
- Category
- UPS Batteries
MSRP$16,953.89
$10,707.73
Save 37%Back ordered — ships when restocked.
Genuine Eaton through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- BP240V65LNIB
- Category
- UPS Batteries
Overview
±120VDC Battery Cabinet Gives Your Compatible 3-Phase UPS Extended Runtime
This external battery pack connects to a compatible SmartOnline® S3M-Series 3-phase UPS system to provide long-lasting battery backup for data centers, telecommunications, networks, industrial facilities, security, emergency systems and other mission-critical applications that require high capacity, high availability and extended runtime. In addition to battery backup and extended runtime, the BP240V65L-NIB can also be daisy-chained to other external battery cabinets for even longer extended-run operation.
Rugged Steel Construction Designed to Last in Demanding IT Applications

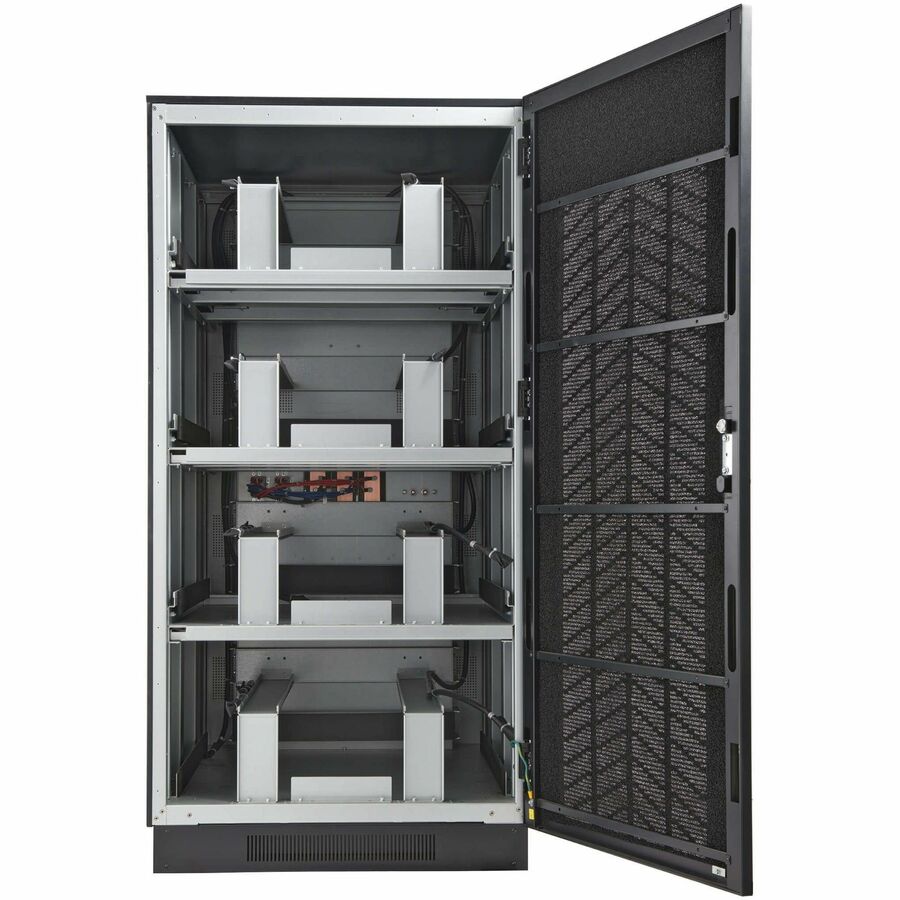

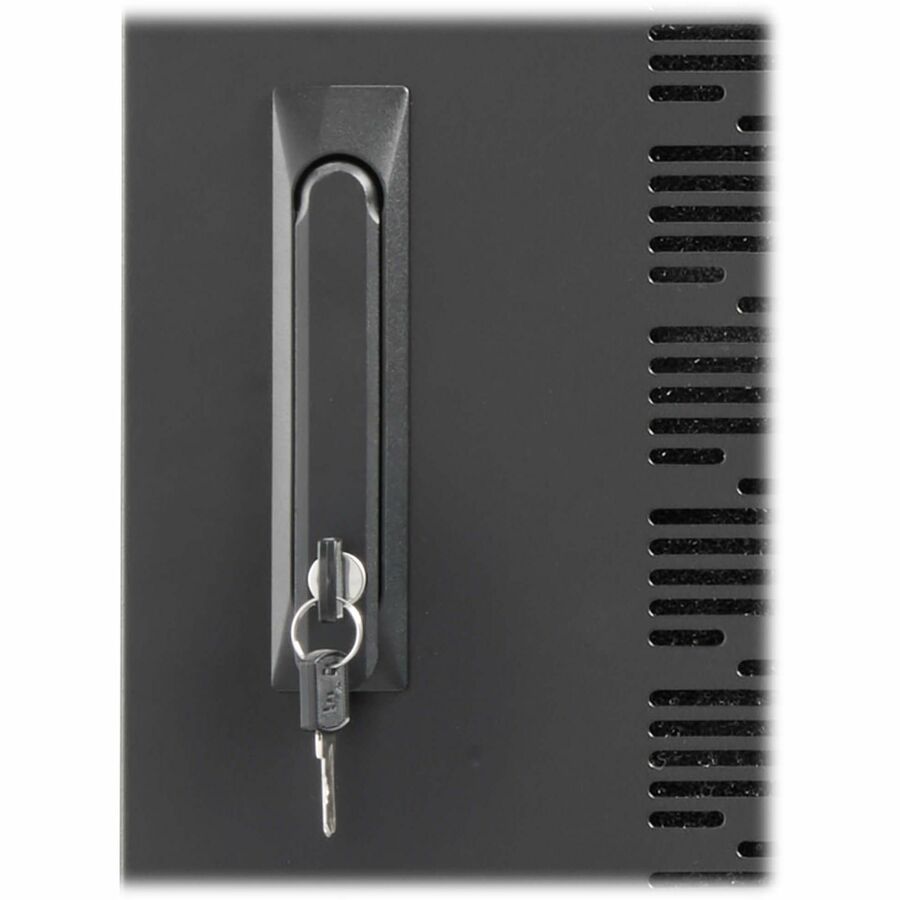

The cabinet is made from heavy-gauge steel with a baked powder-coated finish that helps prevent chipping and corrosion. The hinged front door provides easy access to the user-installed internal batteries. The door locks securely to help prevent damage, tampering or theft. Fuses and output breaker protect against potentially hazardous overcurrent.
Ships Ready for Immediate Battery Installation
All required internal battery cabling is included. External battery cables feed into the cabinet through conduit knockouts built into the bottom panel.
Warranty
Limited Warranty: 1 Year
About Eaton
Eaton is an intelligent power management company dedicated to improving the quality of life and protecting the environment for people everywhere. We are guided by our commitment to do business right, to operate sustainably and to help our customers manage power ─ today and well into the future. By capitalizing on the global growth trends of electrification and digitalization, we're accelerating the planet's transition to renewable energy and helping to solve the world's most urgent power management challenges.
Highlights
- Ideal for IT applications requiring high capacity, high availability and longer runtime
- Supports daisy-chaining to additional battery packs of same model for even more runtime
- Steel cabinet with locking door for easy access to user-installed VRLA (AGM) batteries

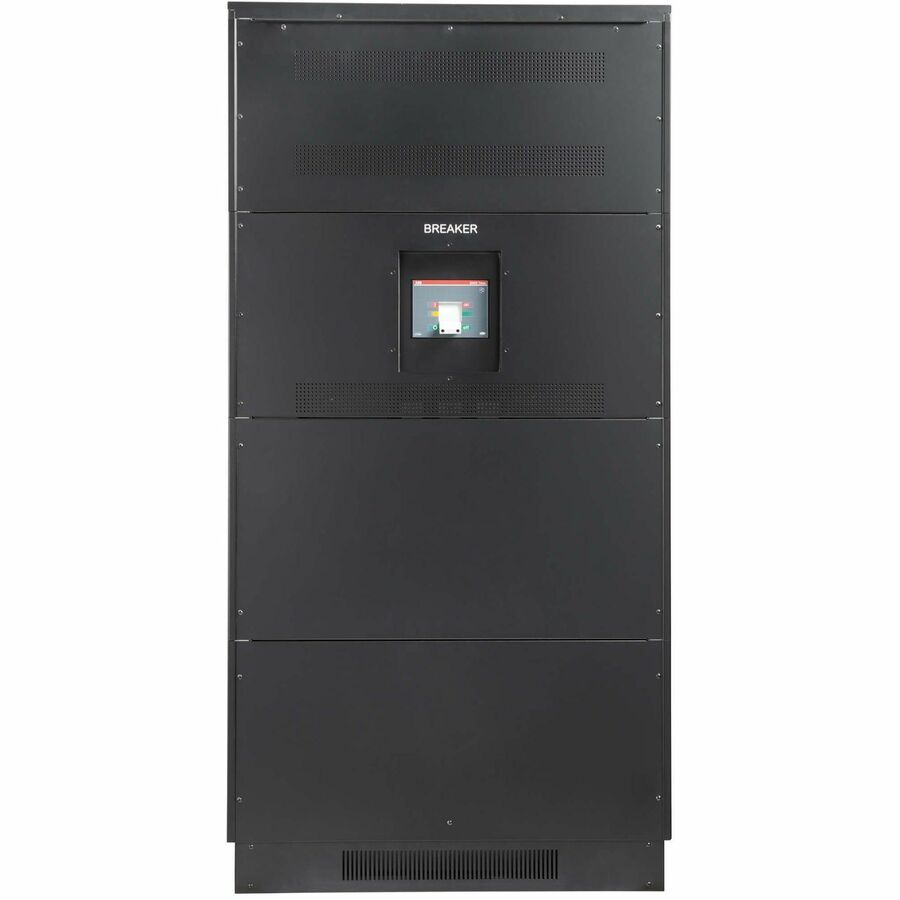

- Fuses and output breaker protect against potentially hazardous overcurrent
- Industrial design matches UPS cabinets for a clean, professional appearance
Specifications
| Package Contents |
|
|---|---|
| Product Type | Battery Cabinet |
| Compatibility | Tripp Lite SmartOnline S3M 3-phase 208V UPS Models: S3M10K-NIB S3M15K-NIB S3M20K-NIB S3M25K S3M30K S3M50K S3M60K S3M80K S3M100K |
| Manufacturer Part Number | BP240V65LNIB |
| Limited Warranty | 1 Year |
| Output Voltage | 120 V DC |
| Weight (Approximate) | 624.40 lb |
| Manufacturer | Eaton Corporation |
| Product Model | BP240V65L-NIB |
| Product Name | SmartOnline S3M BP240V65L-NIB Battery Cabinet |
| Brand Name | Tripp Lite series |
| Country of Origin | China |
| Height | 63" |
| Width | 31.5" |
| Depth | 43.4" |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
