Tripp Lite by Eaton 2x2 DVI over Cat5/Cat6 Matrix Splitter Switch, Video Transmitter, Up to 200 ft. (60 m), TAA
Eaton

Tripp Lite by Eaton 2x2 DVI over Cat5/Cat6 Matrix Splitter Switch, Video Transmitter, Up to 200 ft. (60 m), TAA

1920 x 1200 - WUXGA - 2 x 2

SKU
B140-202
Category
Video Switchboxes

Request pricing

Confirmed with stock and TAA status before any payment.

Request a quote

Genuine Eaton through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

SKU
B140-202
Category
Video Switchboxes

Overview

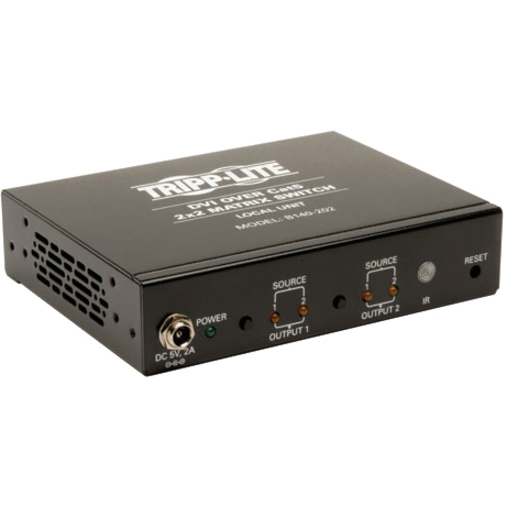

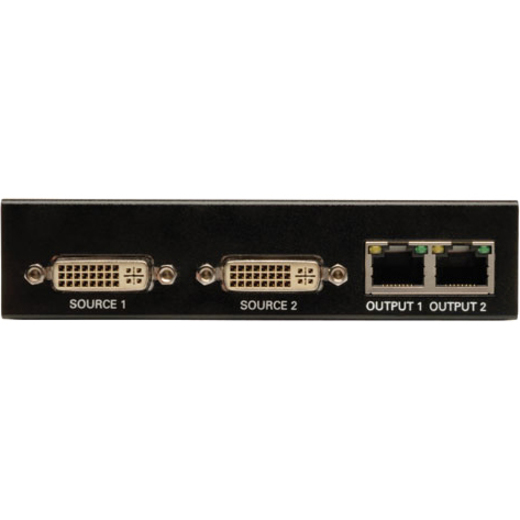

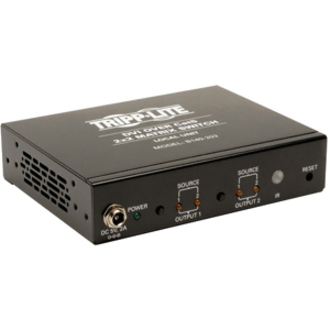

Tripp Lite's B140-202, 2X2 DVI Matrix Switch allows two DVI Single-Link video sources to be routed to one or two RJ45 outputs and extended up to 150-ft. @ 1920x1200 using Active (powered) Receivers, or up to 50-ft. @ 1920x1200 using Passive (non-powered) Receivers. Switching between sources is done manually or with included remote control. Additional monitors can be added beyond the typical two by using Tripp Lite B140-110 daisy-chain Receivers - up to 4 monitors per channel.

Warranty

Limited Warranty: 1 Year

About Eaton

Eaton is an intelligent power management company dedicated to improving the quality of life and protecting the environment for people everywhere. We are guided by our commitment to do business right, to operate sustainably and to help our customers manage power ─ today and well into the future. By capitalizing on the global growth trends of electrification and digitalization, we're accelerating the planet's transition to renewable energy and helping to solve the world's most urgent power management challenges.

Highlights

  • Share two DVI sources between two monitors
  • Supports DVI Single Link computer resolutions up to 1920 x 1200 @ 60Hz
  • Transmits over inexpensive Cat5e/6 cable up to 200 ft.
  • Plug-and-Play
  • Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases

Specifications

Package Contents
  • DVI over Cat5 2x2 Matrix Switch, 2-Port
  • External Power Supply ( Input: 100-240V, 50/60Hz, 0.5A Output: 5V, 2A
  • Mounting Hardware
  • Remote Control
  • Owners Manual
Product TypeVideo Switchbox
Device SupportedDisplay
Manufacturer Part NumberB140-202
Limited Warranty1 Year
Weight (Approximate)12.80 oz
Connectivity TechnologyCable
ManufacturerEaton Corporation
Product NameDVI over Cat5 2x2 Matrix Switch, 2-Port
Brand NameTripp Lite series
Country of OriginTaiwan
Height1.2"
Width5"
Depth3.9"
Graphics ModesWUXGA
Maximum Video Resolution1920 x 1200
Maximum Operating Distance200 ft
DVI InYes
Number of Displays Supported2
Number of Input Devices Supported2
Number of DVI Inputs2
Connectivity (RJ-45)Yes
Number of Connectivity (RJ-45) Ports2
TAA CompliantYes
