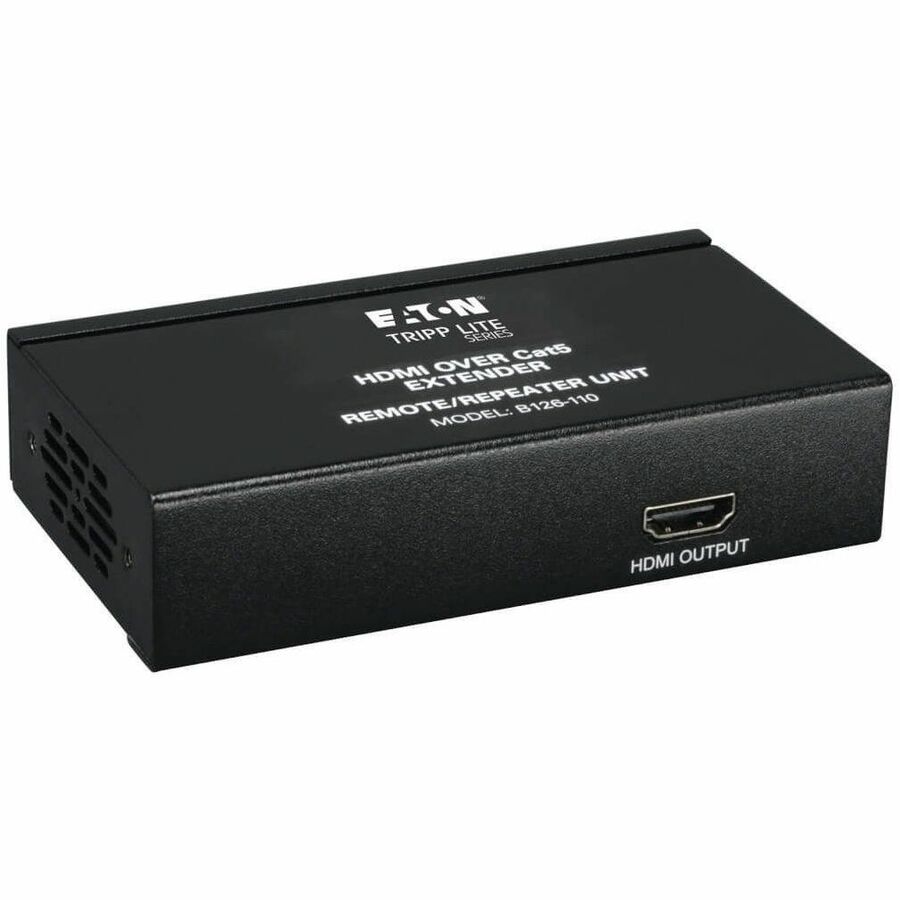

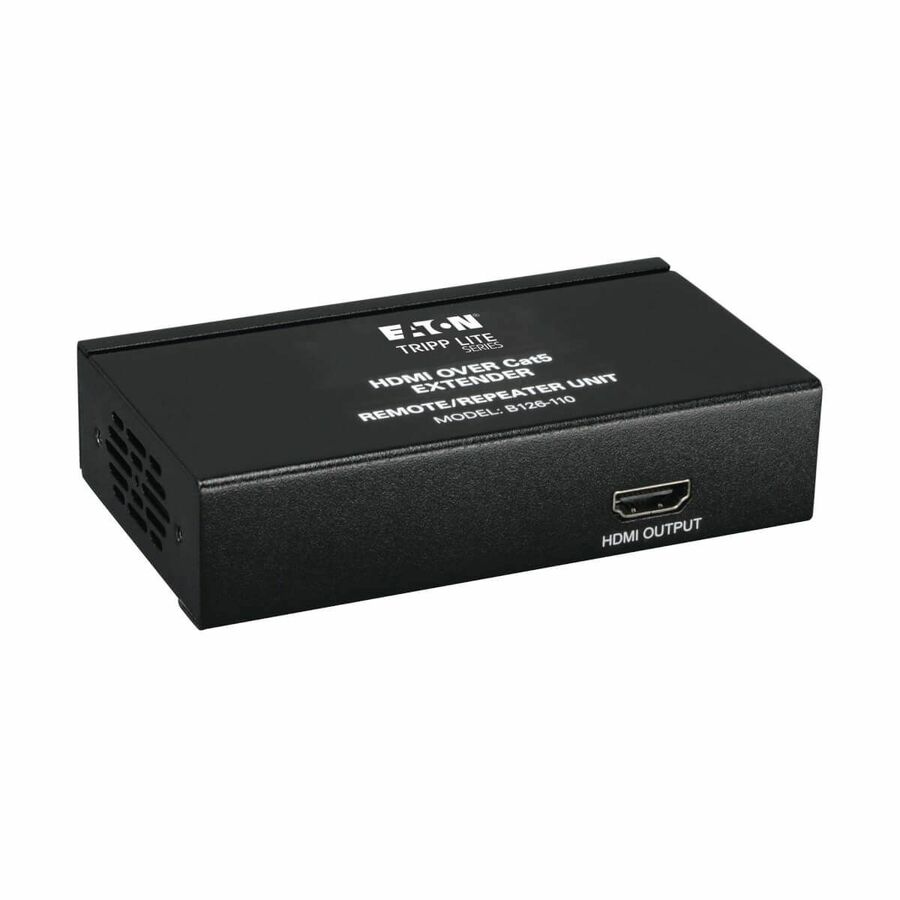

Tripp Lite by Eaton HDMI over Cat5/6 Extender Box-Style Remote Repeater for Video/Audio Up to 125 ft. (38 m) TAA

The B126-110 remote repeater unit can be added to your Tripp Lite B126-Series HDMI over Cat5 installation to increase the extension distance and/or add additional monitors. To achieve maximum distance and resolution, use 24Awg Solid Wire Cat5e/6 cable. (Tripp Lite's N202-Series) Supports 24-bit True Color (8-bits per channel), HDCP, 3D, and both stereo audio and 7.1 channel surround sound audio (7.1 channel surround sound signal will be Multi-Channel or PCM). Installation is simple; just insert the B126-110 repeater into the middle of your installation. In the case of a B126-1A1 extender kit, the transmitter is connected to the HDMI source using a Tripp Lite P568-Series HDMI cable (not included). It is then connected via Cat5e/6 cable to the B126-110, which is connected via Cat5e/6 cable to the B126-1A1 receiver unit. Finally, a monitor is connected to each remote receiver and repeater unit using Tripp Lite P568-Series HDMI cable (not included). The B126-110 unit is TAA GSA Compliant.

More from the Manufacturer

Smart Solution for Digital Applications and Greater Distance

The B126-110 expands and extends your existing HDMI over Cat5 application, making it perfect for digital signage installations with growing demands such as retail, point-of-sale displays, schools, churches and others. By extending an application by up to 700 ft. and adding as many as three monitors, the B126-110 is made to meet the growing demands of digital signage.

When placed between the transmitter and receiver units of Tripp Lite's B126-1A1 HDMI extender kit, the B126-110 extends a 1080i (60Hz) signal up to 175 ft. and a 1080p (60Hz) signal up to 125 ft. The B126-110 also includes an HDMI output connector, allowing you to connect a remote display to each unit. Up to three remote/repeaters can be installed between a transmitter and receiver, allowing you to add three more displays along your application.

Plug and Play Set-Up, Versatile Installation and One-Year Warranty

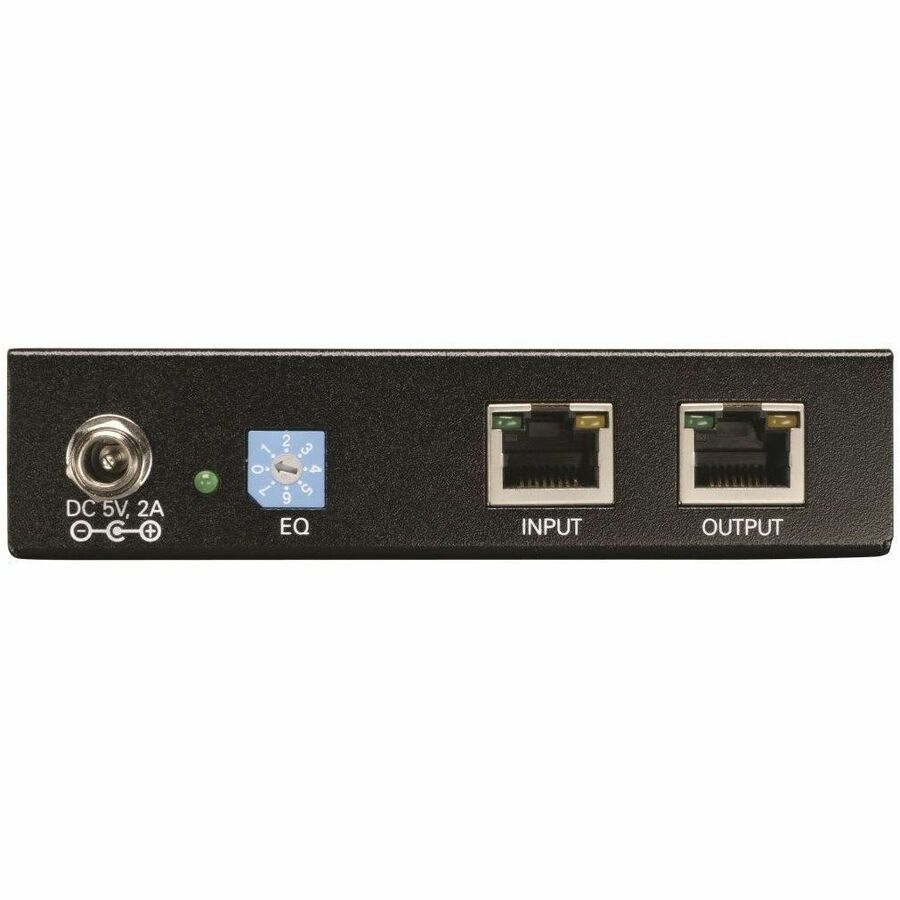

With no software or drivers to install, the B126-110 is ready to use in your application right out of the box. Simply connect the Cat5e/6 input and output along with the unit's power supply and watch as the B126-110 extends your application with crystal-clear resolution. The unit also includes built-in equalization control for ultimate image quality control.

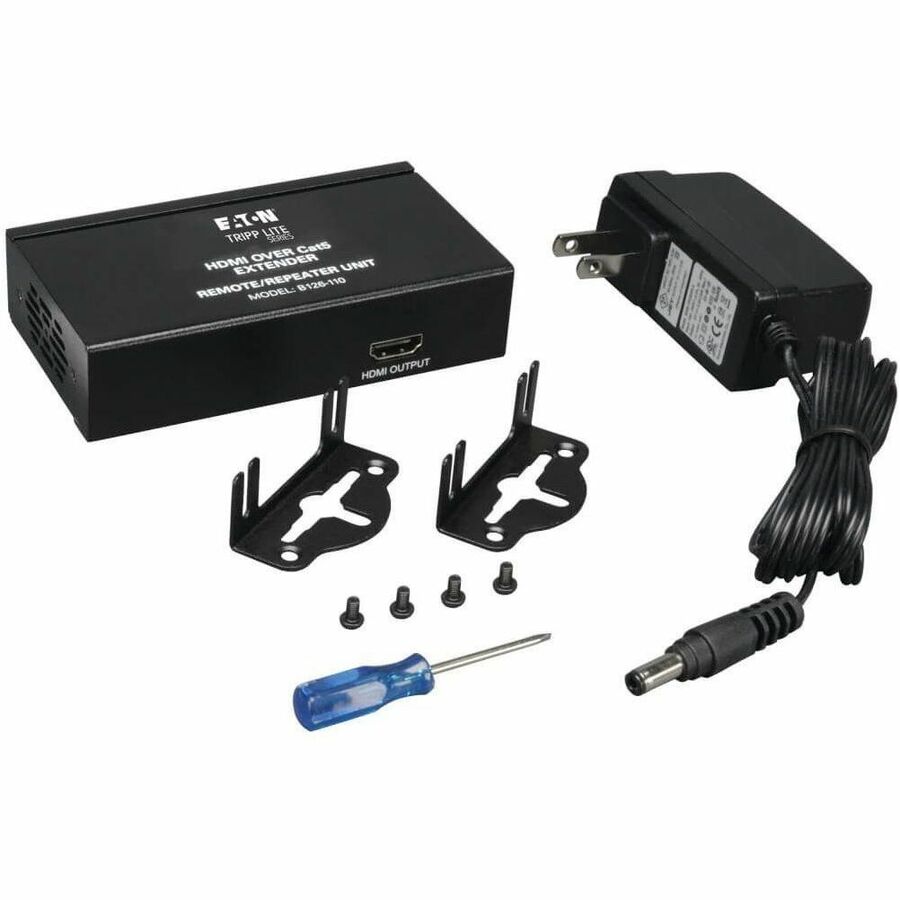

The B126-110 includes mounting hardware, enabling it to be installed in any venue. Mounting options include wall-mount, rackmount and pole mount. For further flexibility, up to three units can be mounted in 1U of rack space using Tripp Lite's B132-004-RB 19-inch rackmount bracket.

The B126-110 features a green, RoHS-compliant design that is also TAA-compliant for GSA schedule purchases. The B126-110 comes backed by a one-year warranty.
