Uniqcli
Dataram 2GB DDR3 SDRAM Memory Module
Dataram

Dataram 2GB DDR3 SDRAM Memory Module

2 GB - DDR3-1600/PC3-12800 DDR3 SDRAM - 1600 MHz - CL11 - 1.50 V - Non-ECC - Unbuffered - 240-pin - DIMM - Lifetime Warranty

SKU
DVM16U1S8/2G
Category
RAM Modules

$12.94

Back ordered

Back ordered — ships when restocked.

Get a quote

Genuine Dataram through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

SKU
DVM16U1S8/2G
Category
RAM Modules

Overview

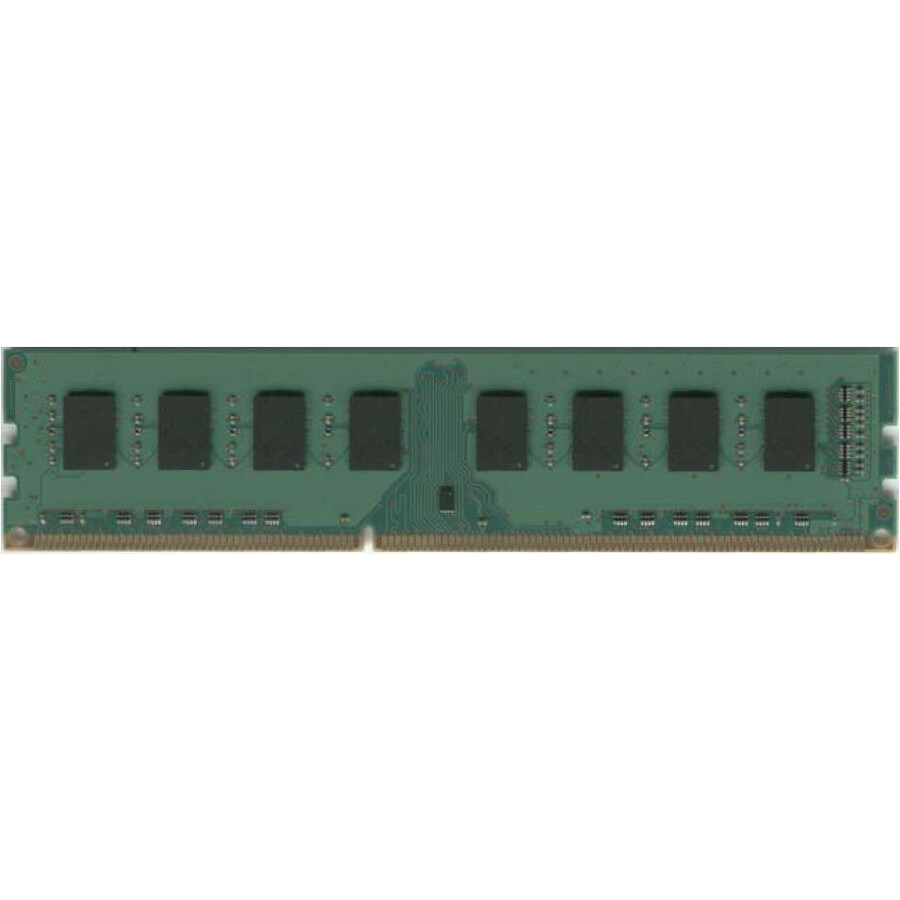

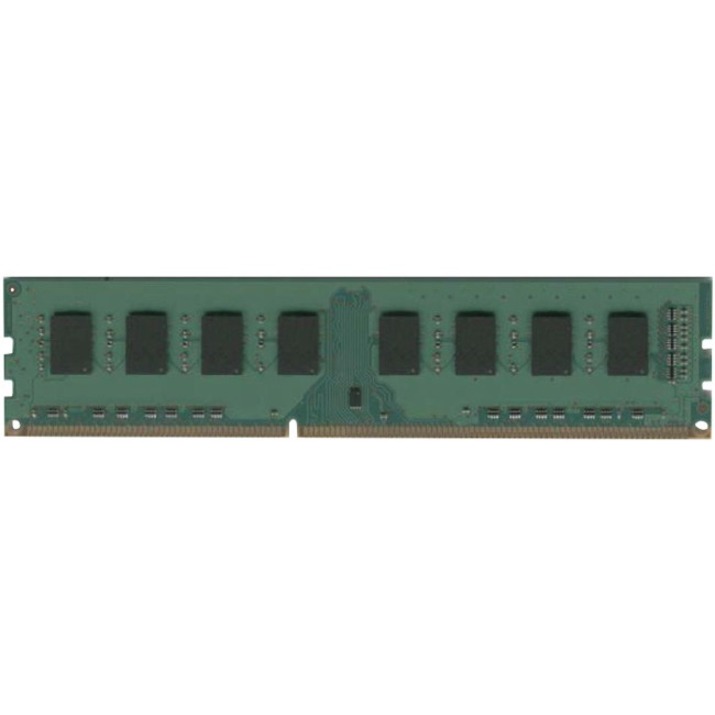

DVM16U1S8/2G is an Unbuffered 256Mx64 memory module, which conforms to JEDEC's DDR3, PC3-12800 standard. The assembly is single Rank. The rank is comprised of eight 256Mx8 DDR3 SDRAMs.

One EEPROM is used for Serial Presence Detect.

Both output driver strength and input termination impedance are programmable to maintain signal integrity on the I/O signals in a Fly-by topology.

Highlights

  • RAM Module is the single answer to all your desired and heavy-duty application memory needs
  • No matter how heavy and numerous the applications that you are using, 1600 MHz memory speed with unbuffered signal and CL11 latency will run them smoothly
  • 2 GB memory allows you to have more programs open at a time
  • 240-pin-pin DDR3 SDRAM operates at an effective bus speed with minimal power consumption and as a result, you get optimal computer performance with an improved memory heat dissipation
  • 240-pin for enhanced, dependable system performance with maximum usability
  • CL11 CAS latency for reliable, fast response and improved performance
  • DIMM form factor with 240-pin and 2 GB memory size effectively lessens the electrical load on the memory controller to allow maximum feasibility
  • Unbuffered signal processing provides reliable optimization for your required applications to allow maximum usability

Specifications

Product TypeRAM Module
CAS LatencyCL11
Error CheckingNon-ECC
Manufacturer Part NumberDVM16U1S8/2G
Number of Pins240-pin
Signal ProcessingUnbuffered
Limited WarrantyLifetime
Thickness157.5 mil
Form FactorDIMM
Length5.3"
ManufacturerDataram Corporation
Memory Speed1600 MHz
Product Name2GB DDR3 SDRAM Memory Module
Memory Size2 GB
Brand NameDataram
Memory TechnologyDDR3 SDRAM
Memory StandardDDR3-1600/PC3-12800
Width1.2"
Environmentally FriendlyYes
Memory Voltage1.50 V
Environmental ComplianceRestriction of Hazardous Substances (RoHS), Waste Electrical and Electronic Equipment Directive (WEEE), Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
