Dataram 4GB DDR4 SDRAM Memory Module
For Notebook - 4 GB (1 x 4GB) - DDR4-2400/PC4-19200 DDR4 SDRAM - 2400 MHz Single-rank Memory - CL17 - 1.20 V - Non-ECC - Unbuffered, Unregistered - 260-pin - SODIMM
- SKU
- DTM68611-H
- Category
- RAM Modules
MSRP$31.60
$24.75
Save 22%Back ordered — ships when restocked.
Genuine Dataram through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- DTM68611-H
- Category
- RAM Modules
Overview

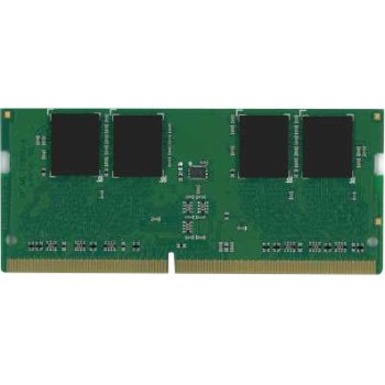

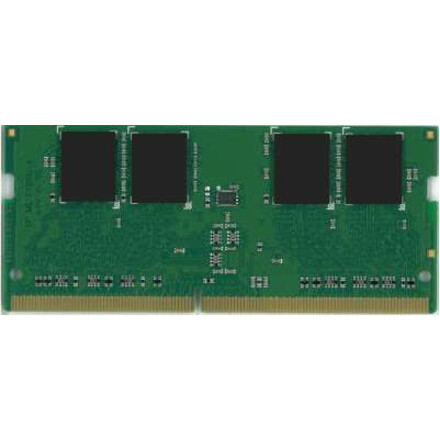

DTM68611-H is a non-ECC Unbuffered DDR4 small-outline 512Mx64 memory module, which conforms to JEDEC's PC4- 2400 standard. The assembly is SingleRank. The rank is comprised of eight 512Mx8 DDR4-2400 SKHynix SDRAMs. One 4K-bit EEPROM is used for Serial Presence Detect.
Both output driver strength and input termination impedance are programmable to maintain signal integrity on the I/O signals in a Fly-by topology.
Highlights
- Enables efficient and smooth execution of all your heavy-duty applications with maximum productivity
- No matter how heavy and numerous the applications that you are using, 2400 MHz memory speed will run them smoothly
- SODIMM 4 GB memory allows you to have more programs open at a time
- 260-pin DDR4 SDRAM interface multiplexes 2-bit data from memory cell and I/O buses to minimize processor idle time and enhance your computer's performance
- 1 x 4GB modules for enhanced memory reliability and productivity
- 260-pin for faster, dependable performance and better access to data and information
- CL17 CAS latency for reliable, fast response and improved performance
- Notebook device support for your ram module for maximum productivity and convenience
- SODIMM form factor with 260-pin and 4 GB memory size effectively lessens the electrical load on the memory controller to allow maximum feasibility
- Unbuffered signal processing provides reliable optimization for your required applications to allow maximum usability
Specifications
| Product Type | RAM Module |
|---|---|
| CAS Latency | CL17 |
| Device Supported | Notebook |
| Error Checking | Non-ECC |
| Manufacturer Part Number | DTM68611-H |
| Number of Modules | 1 x 4GB |
| Number of Pins | 260-pin |
| Signal Processing | Unbuffered, Unregistered |
| Thickness | 145.7 mil |
| Form Factor | SODIMM |
| Length | 2.7" |
| Manufacturer | Dataram Corporation |
| Memory Speed | 2400 MHz |
| Product Name | 4GB DDR4 SDRAM Memory Module |
| Memory Size | 4 GB |
| Brand Name | Dataram |
| Memory Technology | DDR4 SDRAM |
| Memory Standard | DDR4-2400/PC4-19200 |
| Width | 1.2" |
| Environmentally Friendly | Yes |
| Memory Voltage | 1.20 V |
| Memory Rank | Single-rank |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
