Dataram 32GB DDR4 SDRAM Memory Module
32 GB (1 x 32GB) - DDR4-2666/PC4-21300 DDR4 SDRAM - 2666 MHz - CL19 - 1.20 V - ECC - Registered - 288-pin - LRDIMM - Lifetime Warranty
- SKU
- DTM68307-H
- Category
- RAM Modules
MSRP$522.00
$447.87
Save 14%Back ordered — ships when restocked.
Genuine Dataram through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- DTM68307-H
- Category
- RAM Modules
Overview

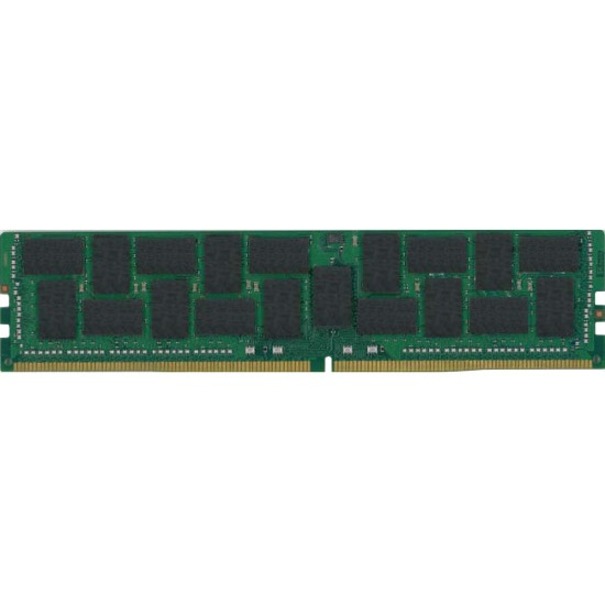

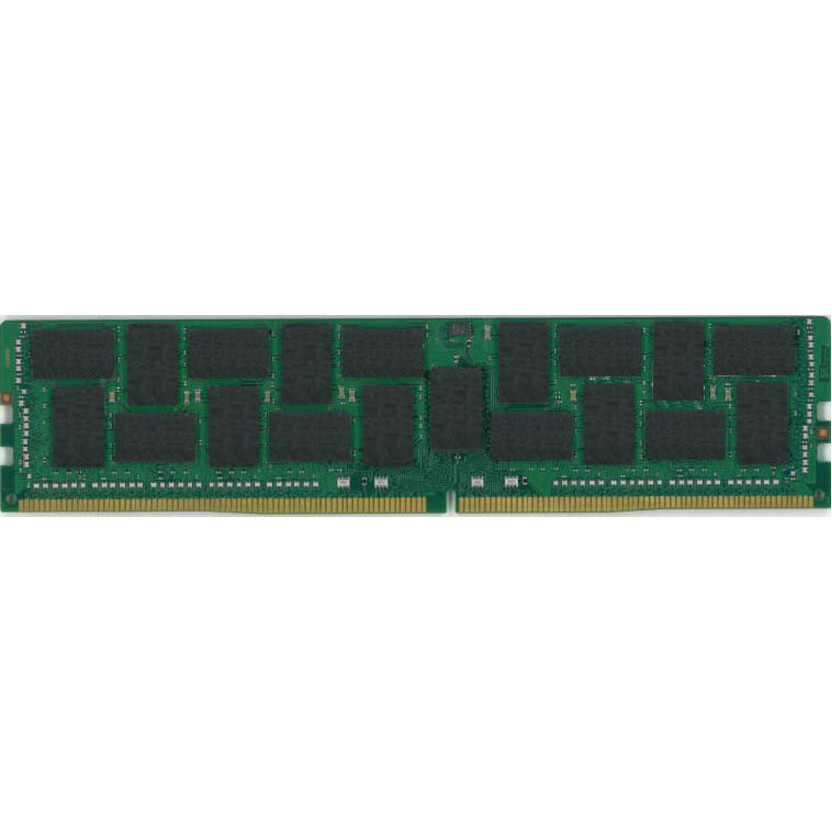

DTM68307-H is a load reduced 4Gx72 memory module, which conforms to JEDEC's DDR4-2666, PC4-2666 standard. The assembly is Dual-Rank containing - eighteen SKHynix 2Gbx4 DDR4-2666 SDRAMs. One 4K-bit EEPROM is used for Serial Presence Detect and a Registering Clock Driver, with Address and Command Parity, is also used as well as data buffers to reduce the overall loading on the data bus.
Both output driver strength and input termination impedance are programmable to maintain signal integrity on the I/O signals in a Fly-by topology. A thermal sensor accurately monitors the DIMM module and can prevent exceeding the maximum operating temperature of 95C.
Highlights
- Enables efficient and smooth execution of all your heavy-duty applications with maximum productivity
- No matter how heavy and numerous the applications that you are using, 2666 MHz memory speed will run them smoothly
- Whether you are playing games, using heavy loaded OS or video editing software, the LRDIMM 32 GB of memory will make them run in a flash
- DDR4-2666/PC4-21300 interface synchronizes electrical and clock signals for an efficient data transfer rate
- 1 x 32GB modules for enhanced memory reliability and productivity
- 288-pin for faster, dependable performance and better access to data and information
- CL19 CAS latency for faster, dependable clock cycles which allows quick access and retrieval of data and information
- Server device support for your RAM Module to allow enhanced system performance and reliable memory solution
- LRDIMM form factor with 288-pin and 32 GB memory size effectively lessens the electrical load on the memory controller to allow maximum feasibility
- Registered signal processing allows higher accuracy and enhanced ram module performance
Specifications
| Product Type | RAM Module |
|---|---|
| CAS Latency | CL19 |
| Device Supported | Server |
| Error Checking | ECC |
| Manufacturer Part Number | DTM68307-H |
| Number of Modules | 1 x 32GB |
| Number of Pins | 288-pin |
| Signal Processing | Registered |
| Limited Warranty | Lifetime |
| Thickness | 156.7 mil |
| Form Factor | LRDIMM |
| Length | 5.3" |
| Manufacturer | Dataram Corporation |
| Memory Speed | 2666 MHz |
| Product Name | 32GB DDR4 SDRAM Memory Module |
| Memory Size | 32 GB |
| Brand Name | Dataram |
| Memory Technology | DDR4 SDRAM |
| Country of Origin | United States |
| Memory Standard | DDR4-2666/PC4-21300 |
| Width | 1.2" |
| Environmentally Friendly | Yes |
| Memory Voltage | 1.20 V |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
