Dataram 64GB DDR4 SDRAM Memory Module
Dataram

Dataram 64GB DDR4 SDRAM Memory Module

64 GB (1 x 64GB) - DDR4-2666/PC4-21300 DDR4 SDRAM - 2666 MHz - CL19 - 1.20 V - ECC - Registered - 288-pin - LRDIMM - Lifetime Warranty

SKU
DTM68306-H
Category
RAM Modules

MSRP$242.00

$174.73

Save 28%
Back ordered

Back ordered — ships when restocked.

Get a quote

Genuine Dataram through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

SKU
DTM68306-H
Category
RAM Modules

Overview

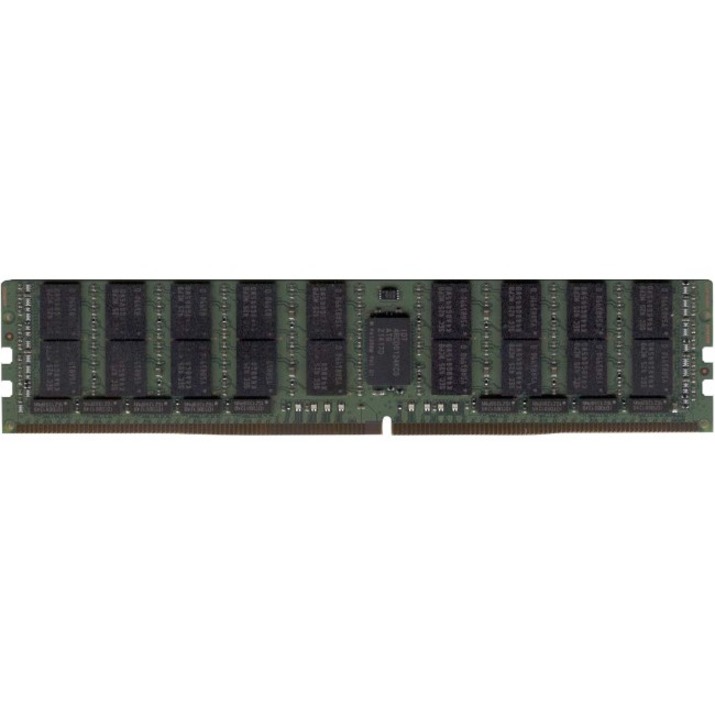

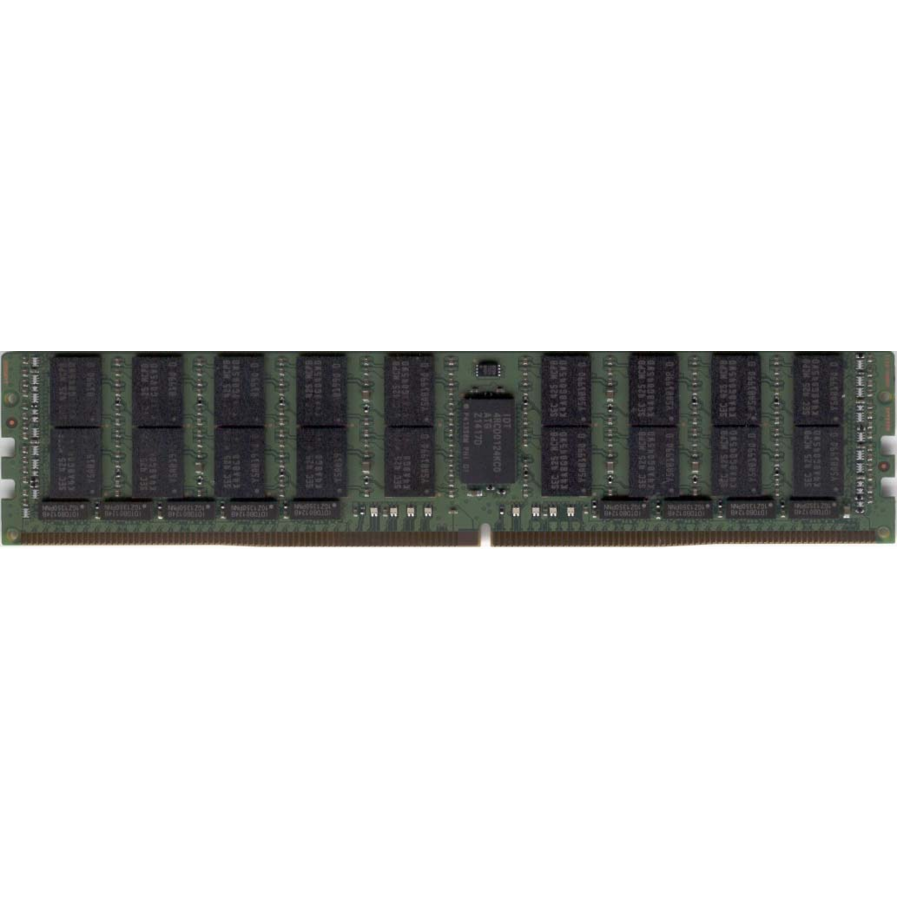

DTM68306-H is a load reduced 8Gx72 memory module, which conforms to JEDEC's DDR4-2666, PC4-2666 standard. The assembly is Quad-Rank containing - thirty-six SKHynix 4Gbx4 DDR4-2666 DDP SDRAMs. One 4K-bit EEPROM is used for Serial Presence Detect and a Registering Clock Driver, with Address and Command Parity, is also used as well as data buffers to reduce the overall loading on the data bus.

Both output driver strength and input termination impedance are programmable to maintain signal integrity on the I/O signals in a Fly-by topology. A thermal sensor accurately monitors the DIMM module and can prevent exceeding the maximum operating temperature of 95C.

Highlights

  • RAM Module offers better protection with maximum efficiency and convenience
  • Up to 2666 MHz speed with registered signal for playing the latest games and using heavy software
  • LRDIMM 64 GB of memory can produce approx. 10K MIPS and as a result, your system gets more room to run complex apps.
  • 288-pin DDR4-2666/PC4-21300 interface synchronizes electrical and clock signals for an efficient data transfer rate
  • 1 x 64GB modules for enhanced memory reliability and productivity
  • 288-pin for optimal performance and maximum reliability
  • CL19 CAS latency for reliable, fast response and improved performance
  • Server device support for your RAM Module to allow enhanced system performance and reliable memory solution
  • LRDIMM form factor with 288-pin and 64 GB memory size for enhanced performance and speed to allow maximum usability
  • Registered signal processing provides increased processing power to allow maximum productivity

Specifications

Product TypeRAM Module
CAS LatencyCL19
Device SupportedServer
Error CheckingECC
Manufacturer Part NumberDTM68306-H
Number of Modules1 x 64GB
Number of Pins288-pin
Signal ProcessingRegistered
Limited WarrantyLifetime
Thickness156.7 mil
Form FactorLRDIMM
Length5.3"
ManufacturerDataram Corporation
Memory Speed2666 MHz
Product Name64GB DDR4 SDRAM Memory Module
Memory Size64 GB
Brand NameDataram
Memory TechnologyDDR4 SDRAM
Country of OriginUnited States
Memory StandardDDR4-2666/PC4-21300
Width1.2"
Environmentally FriendlyYes
Memory Voltage1.20 V
Environmental ComplianceRestriction of Hazardous Substances (RoHS)
