Dataram 32GB DDR4 SDRAM Memory Module
Dataram

Dataram 32GB DDR4 SDRAM Memory Module

For Motherboard - 32 GB (1 x 32GB) - DDR4-2666/PC4-21333 DDR4 SDRAM - 2666 MHz - CL19 - 1.20 V - ECC - Registered - 288-pin - DIMM - Lifetime Warranty

SKU
DTM68132-M
Category
RAM Modules

MSRP$190.00

$137.18

Save 28%
Back ordered

Back ordered — ships when restocked.

Get a quote

Genuine Dataram through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

SKU
DTM68132-M
Category
RAM Modules

Overview

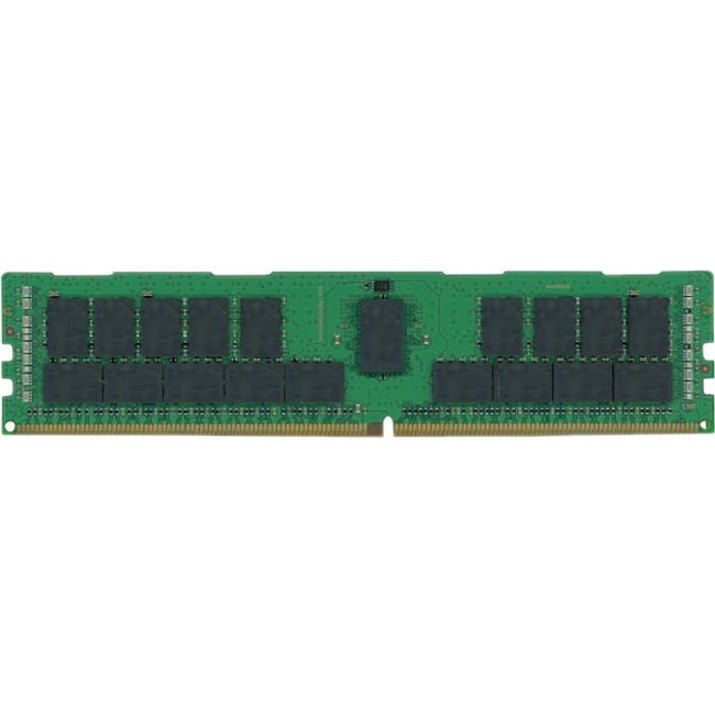

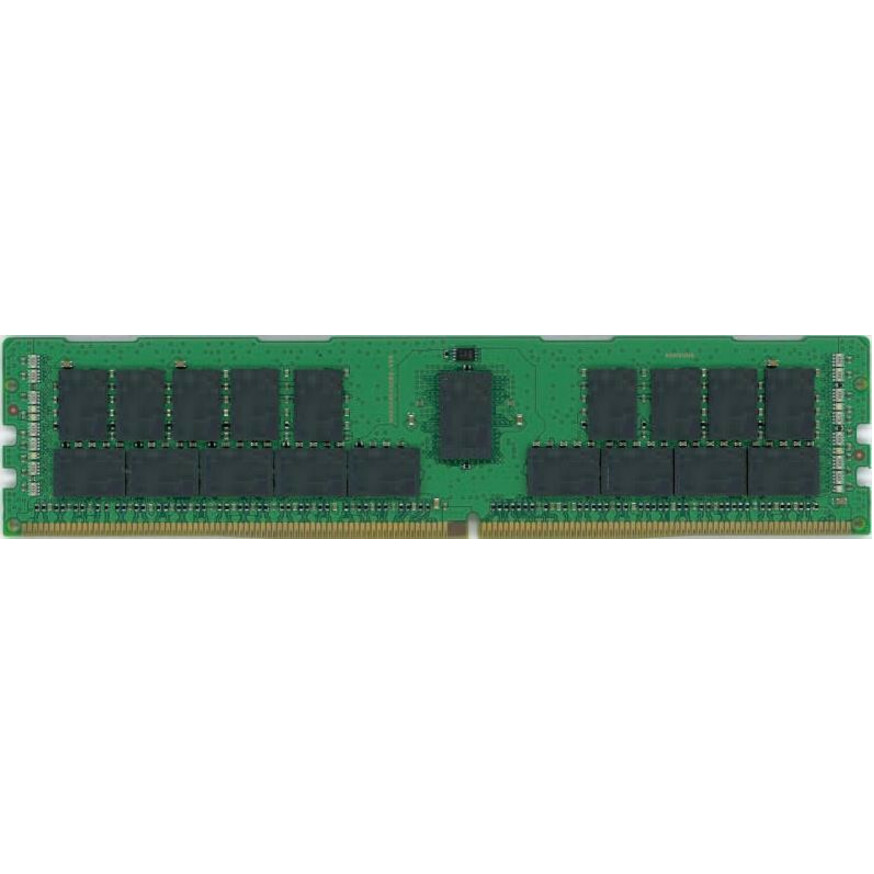

DTM68132-M is a registered 4Gx72 memory module, which conforms to JEDEC's PC4-2666 standard. The assembly is Dual-Rank with each rank containing of eighteen Micron 2Gbx4 DDR4-2666 SDRAMs. One 4K-bit EEPROM is used for Serial Presence Detect and a combination register/PLL, with Address and Command Parity, is also used.

Both output driver strength and input termination impedance are programmable to maintain signal integrity on the I/O signals in a Fly-by topology. A thermal sensor accurately monitors the DIMM module and can prevent exceeding the maximum operating temperature of 95C

Highlights

  • RAM Module offers better protection with maximum efficiency and convenience
  • Up to 2666 MHz speed with registered signal for playing the latest games and using heavy software
  • 32 GB of memory to maintain symmetry with processor and hard drive and bring out the ultimate computing experience
  • 288-pin DDR4-2666/PC4-21333 interface synchronizes electrical and clock signals for an efficient data transfer rate
  • 1 x 32GB modules for enhanced memory reliability and productivity
  • 288-pin for faster, dependable performance and better access to data and information
  • CL19 CAS latency for faster, dependable clock cycles which allows quick access and retrieval of data and information
  • Motherboard device support for your ram module to allow maximum efficiency and dependability
  • DIMM form factor with 288-pin and 32 GB memory size effectively reduces minimizes the load on the server memory BUS to ensure maximum productivity
  • Registered signal processing provides increased processing power to allow maximum productivity

Specifications

Product TypeRAM Module
CAS LatencyCL19
CompatibilitySupermicro X11SRM-VF Motherboard
Device SupportedMotherboard
Error CheckingECC
Manufacturer Part NumberDTM68132-M
Number of Modules1 x 32GB
Number of Pins288-pin
Signal ProcessingRegistered
Limited WarrantyLifetime
Thickness156.7 mil
Form FactorDIMM
Length5.3"
ManufacturerDataram Corporation
Memory Speed2666 MHz
Product Name32GB DDR4 SDRAM Memory Module
Memory Size32 GB
Brand NameDataram
Memory TechnologyDDR4 SDRAM
Memory StandardDDR4-2666/PC4-21333
Width1.2"
Environmentally FriendlyYes
Memory Voltage1.20 V
Environmental ComplianceRestriction of Hazardous Substances (RoHS)
