Dataram 16GB DDR4 SDRAM Memory Module
16 GB (1 x 16GB) - DDR4-2666/PC4-21333 DDR4 SDRAM - 2666 MHz - 1.20 V - ECC - Registered - 288-pin - DIMM - Lifetime Warranty
- SKU
- DTM68131-S
- Category
- RAM Modules
MSRP$122.00
$88.11
Save 28%Back ordered — ships when restocked.
Genuine Dataram through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- DTM68131-S
- Category
- RAM Modules
Overview

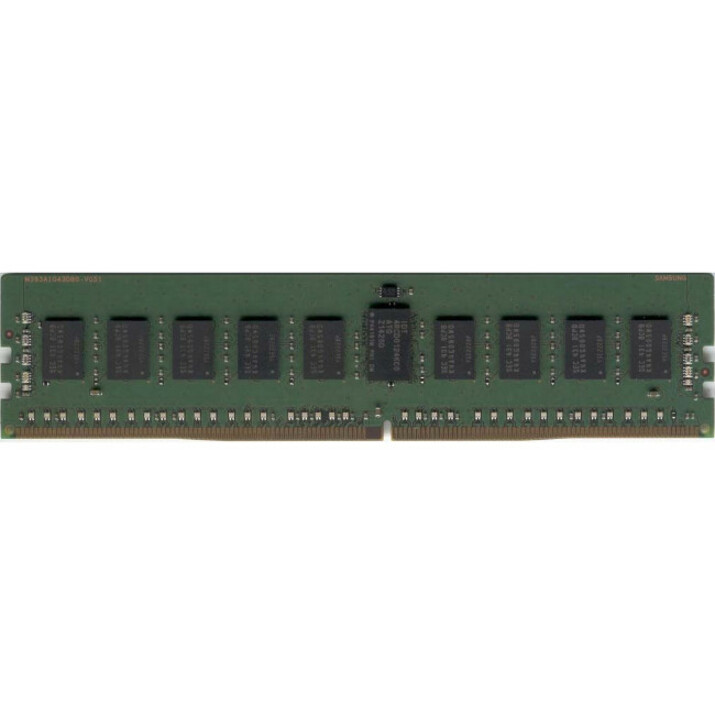

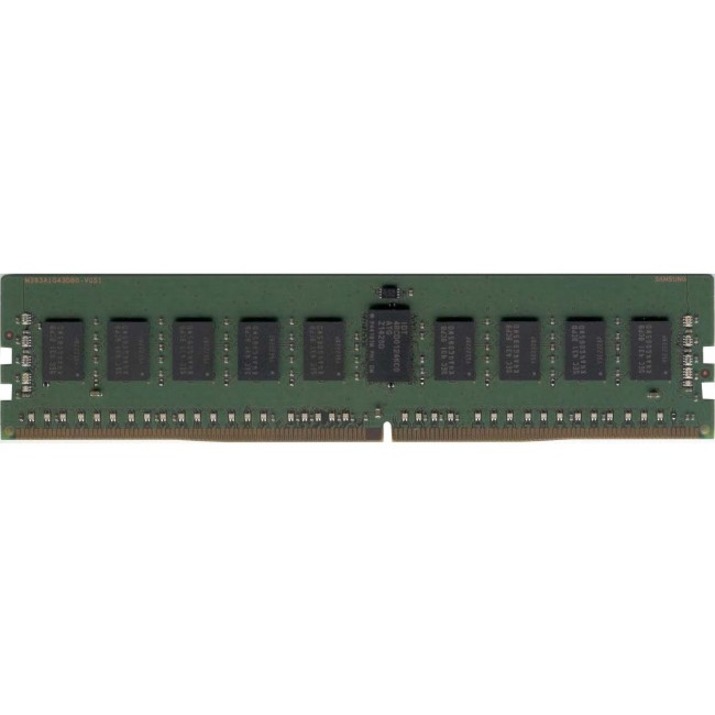

DTM68131-S is a registered 2Gx72 memory module, which conforms to JEDEC's PC4-2666 standard. The assembly is Single-Rank with a rank containing: Samsung 1Gbx8 DDR4-2666 SDRAMs. One 4K-bit EEPROM is used for Serial Presence Detect and a combination register/PLL, with Address and Command Parity is also used.
Both output driver strength and input termination impedance are programmable to maintain signal integrity on the I/O signals in a Fly-by topology. A thermal sensor accurately monitors the DIMM module and can prevent exceeding the maximum operating temperature of 95C.
Highlights
- Enables efficient and smooth execution of all your heavy-duty applications with maximum productivity
- Up to 2666 MHz speed for smooth computer performance
- Editing high-resolution pictures, rendering 3D graphics and playing the latest games is not a big deal with DIMM 16 GB of memory that effortlessly manages them
- 288-pin DDR4 SDRAM interface multiplexes 2-bit data from memory cell and I/O buses to minimize processor idle time and enhance your computer's performance
- 1 x 16GB modules for dependable storage efficiency and maximum convenience
- 288-pin for optimal performance and maximum reliability
- DIMM form factor with 288-pin and 16 GB memory size effectively reduces minimizes the load on the server memory BUS to ensure maximum productivity
- Registered signal processing allows convenient and easy reconfiguration according to your requirements
Specifications
| Product Type | RAM Module |
|---|---|
| Error Checking | ECC |
| Manufacturer Part Number | DTM68131-S |
| Number of Modules | 1 x 16GB |
| Number of Pins | 288-pin |
| Signal Processing | Registered |
| Limited Warranty | Lifetime |
| Thickness | 353.5 mil |
| Form Factor | DIMM |
| Length | 5.3" |
| Manufacturer | Dataram Corporation |
| Memory Speed | 2666 MHz |
| Product Name | 16GB DDR4 SDRAM Memory Module |
| Memory Size | 16 GB |
| Brand Name | Dataram |
| Memory Technology | DDR4 SDRAM |
| Country of Origin | United States |
| Memory Standard | DDR4-2666/PC4-21333 |
| Width | 1.2" |
| Environmentally Friendly | Yes |
| Memory Voltage | 1.20 V |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
